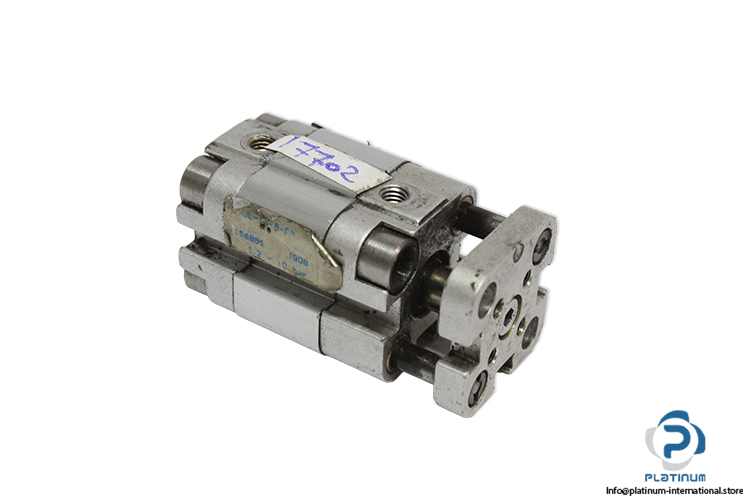

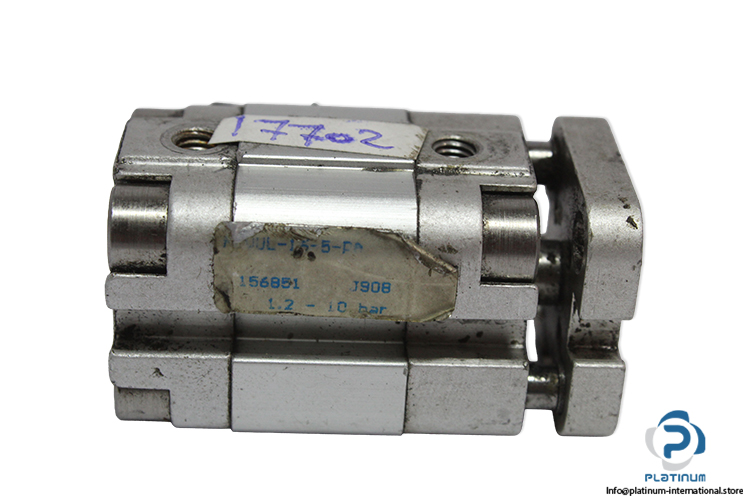

Festo 156851 Compact Cylinder

FESTO ADVUL-16-5-PA Compact Cylinder

A high-performance compact cylinder designed for precise, efficient, and space-saving motion control in industrial automation. Built for reliability and smooth operation, this FESTO ADVUL series cylinder is ideal for applications that demand accuracy, durability, and consistent actuation in limited installation spaces. Manufacturer: Festo
Type: Compact Cylinder
Model: ADVUL-16-5-PA
Part No.: 156851
Code: J908
Series: ADVUL
Operating medium: Compressed air
Stroke Length: 5 mm
Piston Diameter: 16 mm
Variants: Piston rod at one end
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/plates at both ends
Protection against torque/guide: Guide rod with yoke
Position detection: VIA proximity switch
Pneumatic Connection: 5 mm
Ambient Temperature: -20 to 80°C
Cover material: Wrought aluminum alloy
Material dynamic seals: NBR, TPE-U(PU)
Material piston rod: High-alloy stainless steel
Material cylinder barrel: Wrought aluminum alloy

Recommendation:
This FESTO ADVUL compact cylinder offers outstanding precision, fast response, and long service life, making it a top choice for automation upgrades. Pair it with high-quality Pneumatic Actuators and reliable Sensors from Platinum International to enhance performance, ensure smoother operation, and maximize the efficiency of your pneumatic system.
