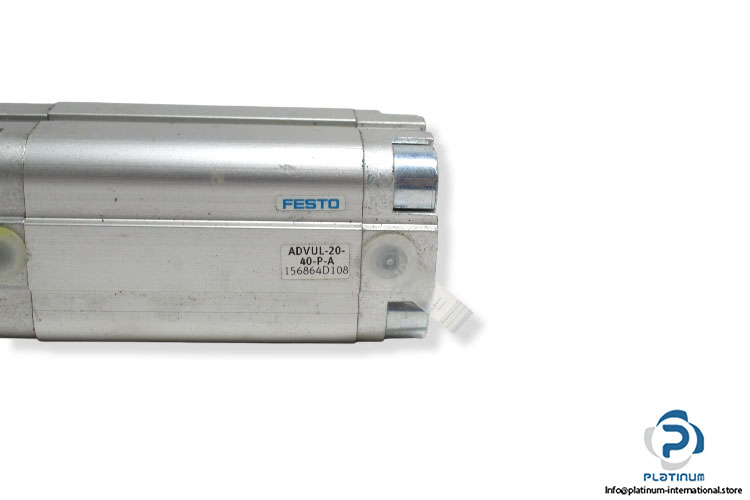

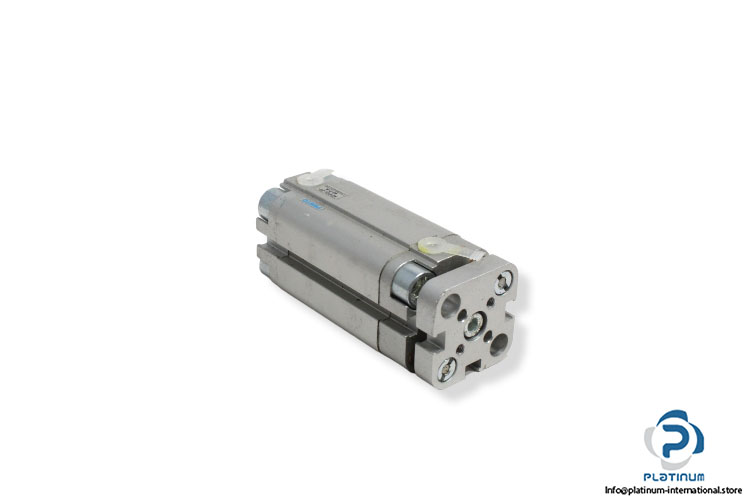

Festo 156864 Compact Cylinder
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADVUL-20-40-P-A
Part No.: 156864
Stroke Length: 40 mm
Piston Diameter: 20 mm
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Through piston rod
Pneumatic Connection: 5 mm
Material of cylinder barrel: Wrought aluminum alloy
Temperature: -20 … 80 °C
