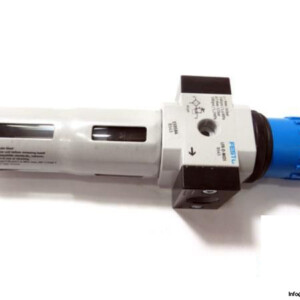

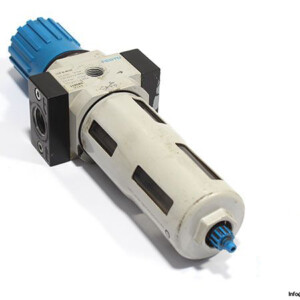

Festo 159584 Filter Regulator
Neu
Auf Lager8 EinheitenVersandbereit
77,77$

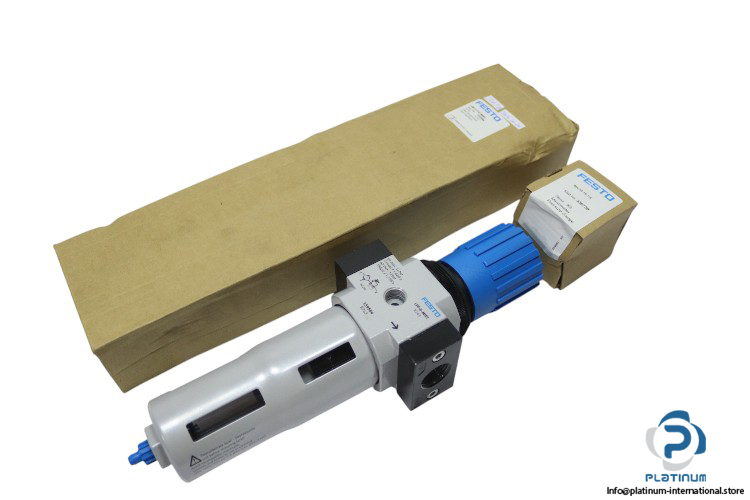

Filter Regulator & Pressure Gauge
The Festo LFR-1/2-D-MIDI filter regulator ensures consistent pressure regulation with a rotary knob actuator and manual condensate drain. Paired with the Festo MA-50-16-1/4 pressure gauge, it offers precise monitoring for optimal pneumatic system performance.
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

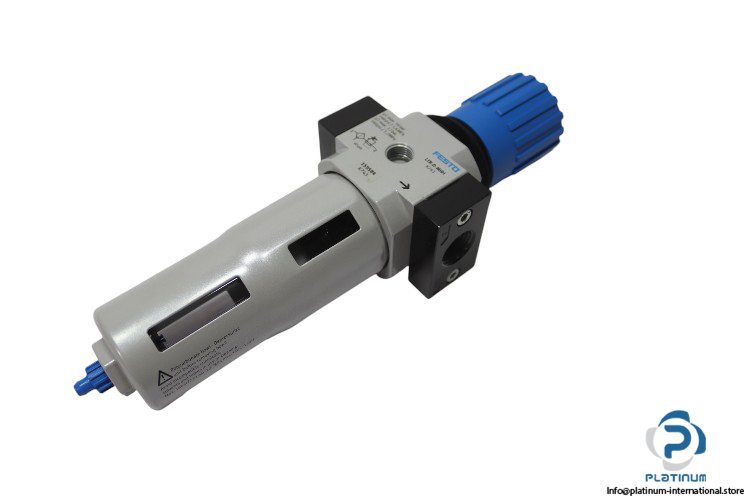

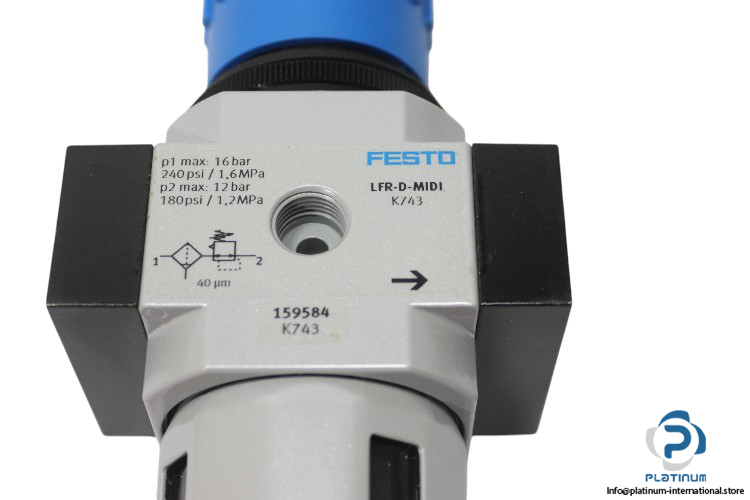

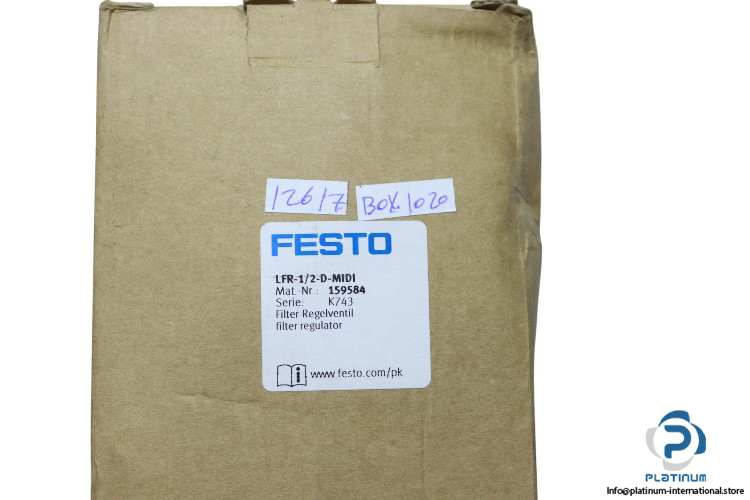

Festo LFR-1/2-D-MIDI “ Filter Regulator
The Festo LFR-1/2-D-MIDI filter regulator is a high-quality pneumatic component designed to provide consistent pressure regulation and filtration for compressed air systems. Featuring a rotary knob with detent for easy actuation and a manually rotating condensate drain, it ensures efficient operation in industrial applications.
Manufacturer: Festo
Type: Filter Regulator
Model: LFR-1/2-D-MIDI
Part No: 159584

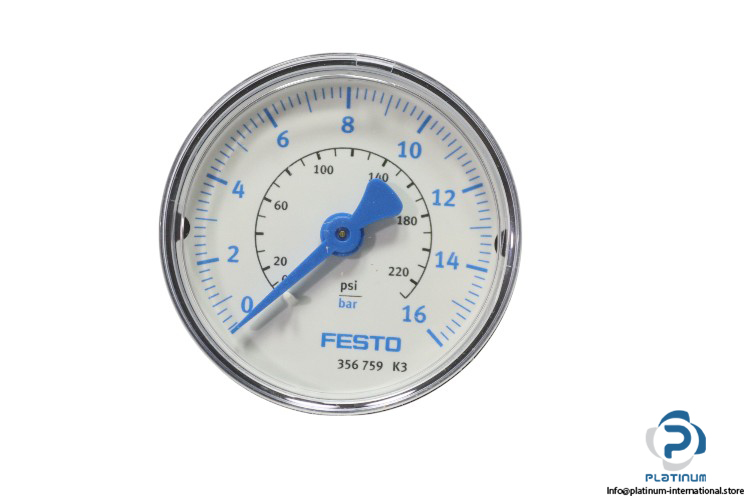

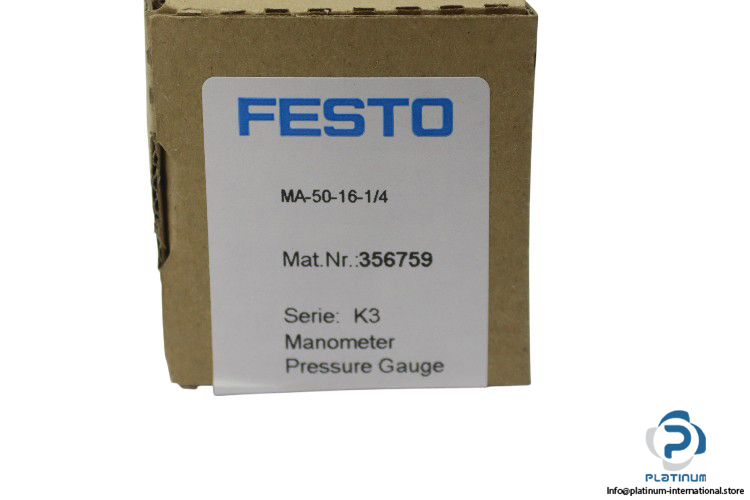

Festo MA-50-16-1/4 “ Pressure Gauge
The Festo MA-50-16-1/4 pressure gauge is designed for precise pressure measurement in pneumatic systems. This gauge is ideal for use with the Festo filter regulator to monitor and maintain optimal system performance.
| Actuator Lock | Rotary knob with detent |
| Condensate Drain | Manually rotating |
| Structural Design | Filter regulator with pressure gauge |
| Operating Medium | Compressed air |
| Max. Condensate Volume | 43 ml |
| Working Pressure | 1 to 16 bar |
| Standard Nominal Flow Rate | 3400 l/min |
| Ambient Temperature | -10 to +60 °C |
| Pneumatic Connection | G1/2 |
| Material Housing | Die-cast zinc |
| Material Bowl | PC |
| Attachment | FESTO 356759 PRESSURE GAUGE |
| Part No. | 356 759 |
