Festo 159605 Filter With Regulator With Lubricator
Neu
Auf Anfrage verfügbar
Filter-Regler-Schmiergerät Eine kompakte FESTO-Lufteinheit zur Luftaufbereitung, die Filtration, Druckregelung und Schmierung kombiniert. Entwickelt für eine zuverlässige Steuerung von Druckluft in pneumatischen und Automatisierungssystemen mit begrenztem Installationsraum.
AirAutomationComponentsCompressedFestofilterFRLIndustrialLFR-D-MiniLubricatorPneumaticPneumaticsPreparationPressureregulatorUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

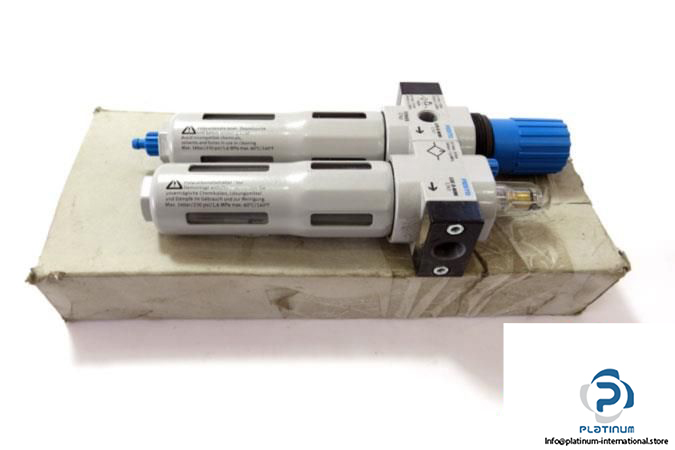

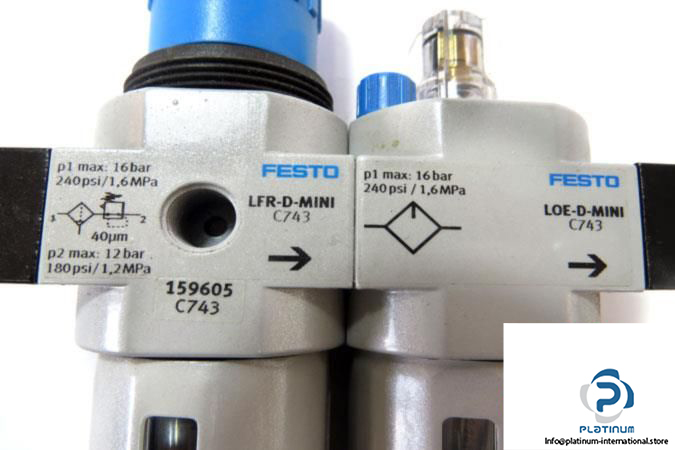

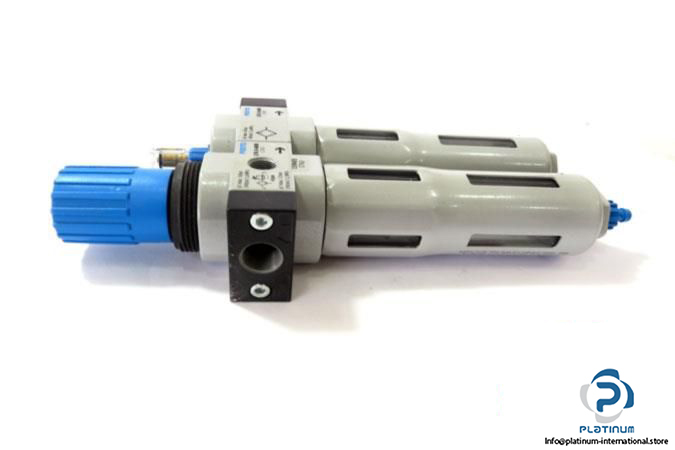

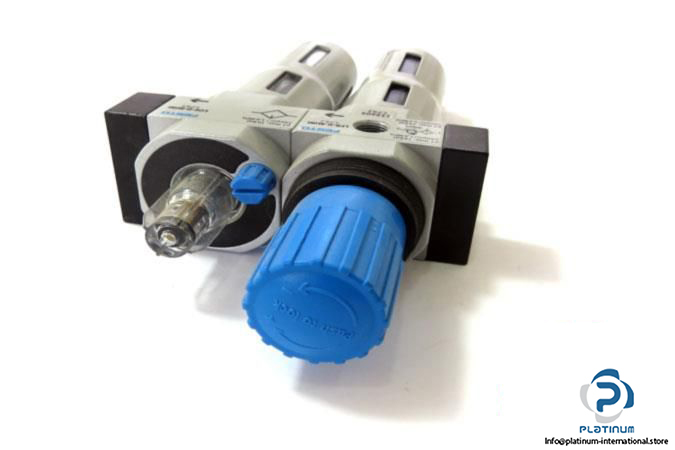

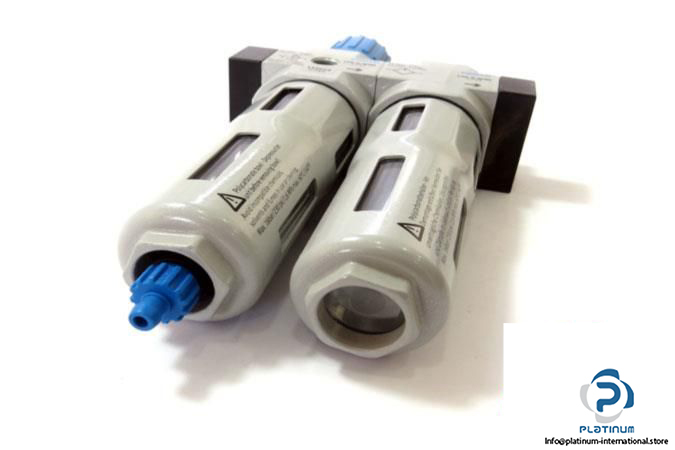

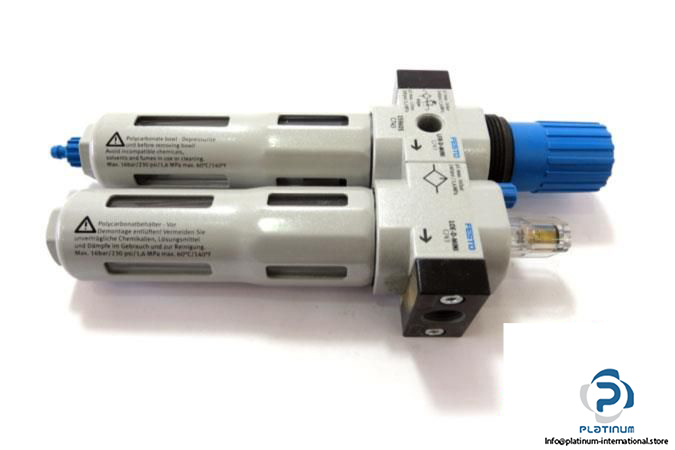

FESTO LFR-D-MINI Filter Regulator With Lubricator
A compact and efficient air preparation unit designed to ensure clean, regulated, and lubricated compressed air for pneumatic systems. This unit combines filtration, pressure regulation, and lubrication in a single assembly, making it ideal for space-saving industrial installations. Manufacturer: FESTO
Type: Filter With Regulator With Lubricator
Model: LFR-D-MINI
MNR: 159605
Attached With: FESTO LOE-D-MINI Lubricator
| Operating Medium | Compressed Air |
| GMedia | Air |
| Operating Pressure | 1 / 16 bar |
| Operating Pressure (MPa) | 0 / 1.6 MPa |
| Pressure Regulation Range | 0.5 / 12 bar |
| Flow Rate | 1000 l/min |
| Grade Of Filtration | 40 µm |
| Max. Condensate Volume | 22 ml |
| Condensate Drain | Manually Rotating |
| Min. Flow Rate For Lubricator Function | 3 l/min |
| Temperature Range | -10 / 60 °C |
| Ambient Temperature | -10 / 60 °C |
| Connection | G ¼ |
| Size | Mini |
| Series | D |
| Mounting Position | Vertical ±5° |
| Design | Proportional Standard Mist Lubricator |
| Max. Oil Capacity | 45 cm³ |
| Bowl Guard | Metal Bowl Guard |
| Material Bowl | PC |
| Symbol | 00991532 |
