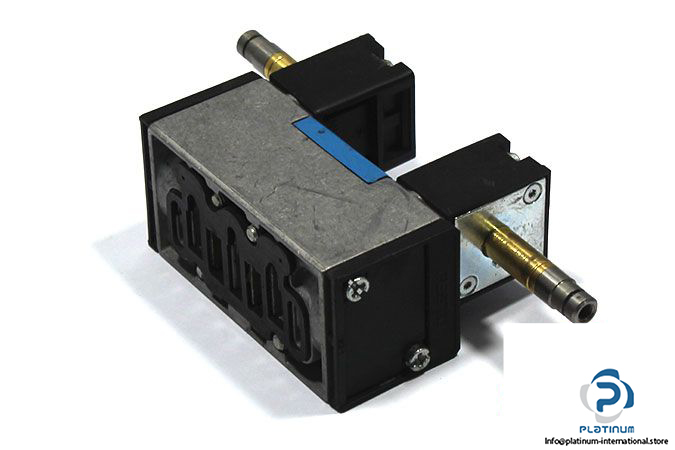

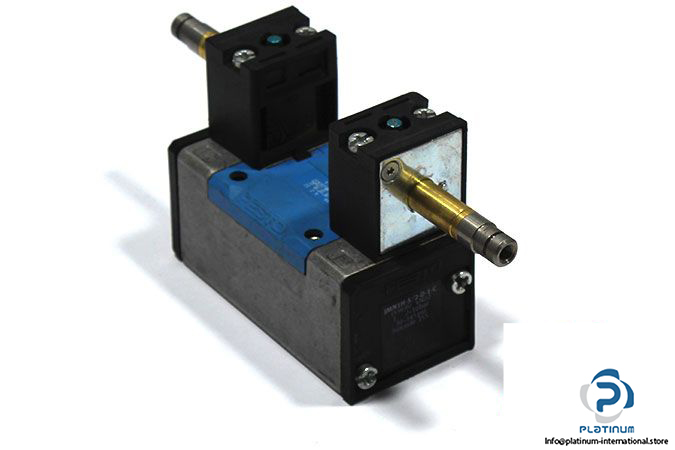

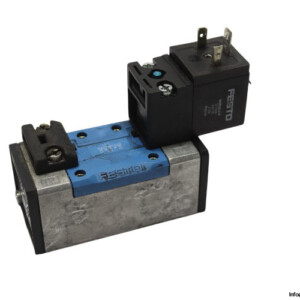

Festo JMN1H-5/2-D-1-C Double Solenoid Valve
The Festo JMN1H-5/2-D-1-C is a high-performance double solenoid valve designed for precise control in industrial automation systems. Featuring a piston gate valve design and a flow rate of 1200 l/min, it ensures efficient operation with air as the working fluid and is ideal for applications requiring a pressure range of 2 to 10 bar.
Manufacturer: Festo
Type: Double Solenoid Valve

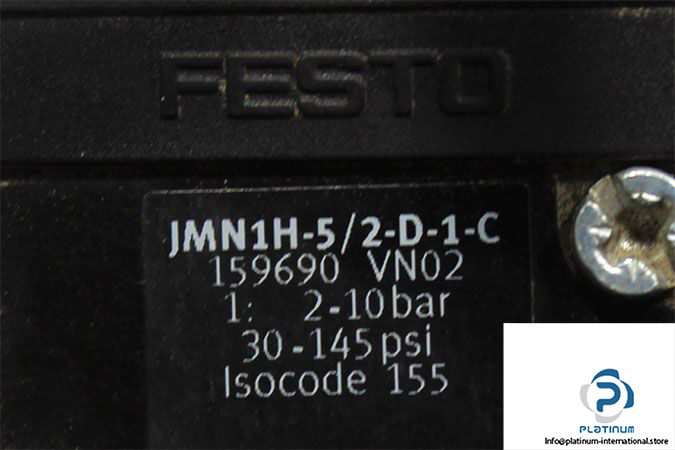

Model: JMN1H-5/2-D-1-C
Part No.: 159690
Technical Data:
- Type of Actuation: Electrically
- Operating Pressure: 2 / 10 bar
- Fluid: Air
- Design: Piston Gate Valve
- Flow Rate: 1200 l/min
- Plug Diameter: 9 mm
- Pneumatic Connection: Sub-Based
- Ambient Temperature: -5 / 50 °C
- Material: Aluminum
- Protection Class: IP65
