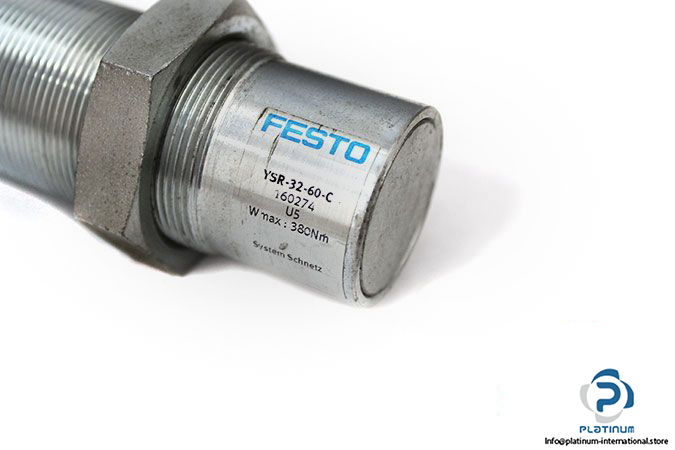

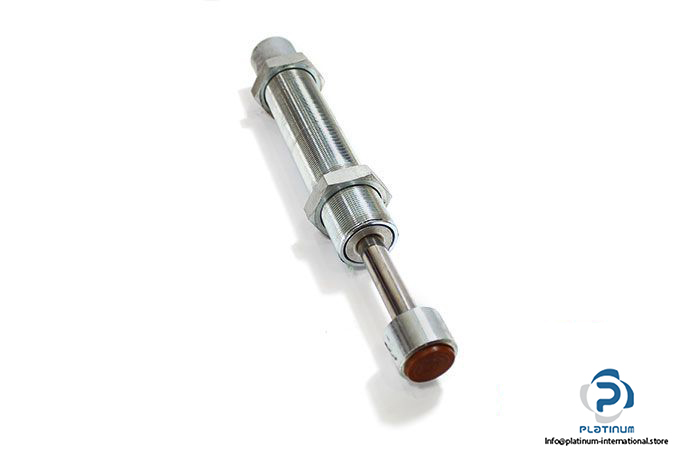

Festo 160274 Shock Absorber

Manufacturer: FESTO

Type: SELF-ADJUSTING SHOCK ABSORBER

Model: YSR-32-60-C

Part No.: 160274

Type of installation: Threaded With Lock Nuts

Max. Impact Speed: 3 m/s

Max. energy consumption per stroke: 380,0 J

Reset Force: 20 N

Max. Cushioning Work: 380 N.m

Reset Time: 1 s

Material

  Housing Material: Steel zinc plating

  Piston rod material: High-alloy steel

Shock Absorber Size: 32 mm

Stroke Length: 60 mm

Rod Diameter: 15 mm

Piston Diameter: 32 mm

Total length: 384 mm

Diameter and Step for Threaded Surface: M37 x1.5

Temperature Range: -10 ….. 80 ^°C

Weight: 1.24 kg
