Festo 161 075 Double Solenoid Valve
Gebraucht
Auf Lager4 EinheitenVersandbereit
75,00$
DOUBLE SOLENOID VALVE
FESTO MN2H-5/3G-D-01 double solenoid valve with 5/3 closed function and MSEB-3-24V DC coil, built for industrial air systems with high flow and durable operation.5/3AirAluminiumClosedcoilControldcDoubleFestoflowIndustrialMN2H-5/3G-D-01MSEB-3-24VPneumaticsolenoidSub-BaseValve
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

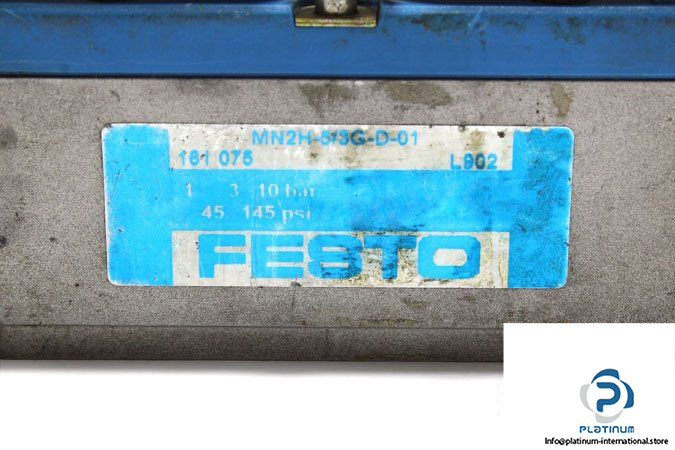

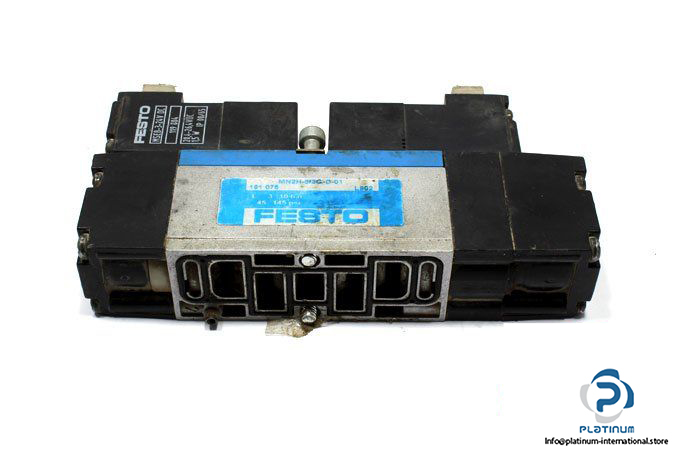

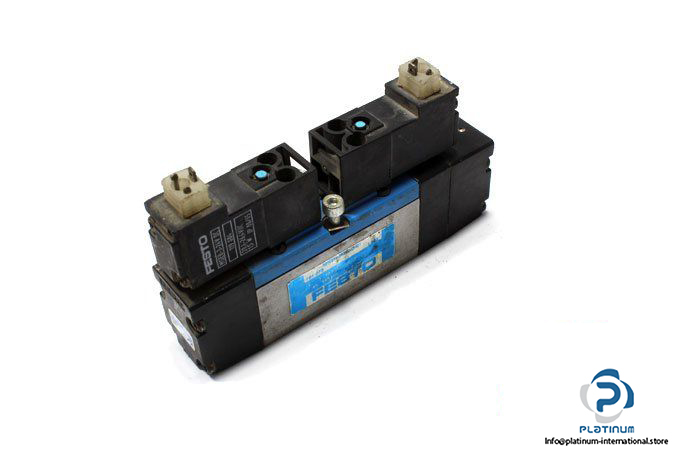

FESTO MN2H-5/3G-D-01 DOUBLE SOLENOID VALVE WITH COIL
The FESTO MN2H-5/3G-D-01 is a high-performance double solenoid valve engineered for precise pneumatic control in industrial systems. It features a robust aluminium die-cast body, 5/3 closed function, and high flow efficiency. The valve is equipped with the FESTO MSEB-3-24V DC solenoid coil, ensuring reliable electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MN2H-5/3G-D-01
Part No.: 161075
Coil Technical Information
| Fluid | Air |
| Function | 5/3 Closed |
| Type of Actuation | Electrical |
| Working Pressure | 3 / 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | Sub-based |
| Material | Aluminium Die-Cast |
| Ambient Temperature | -10 / 60 °C |

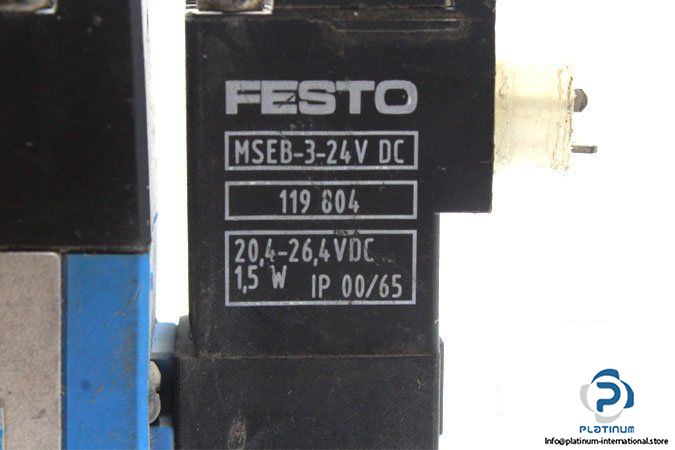

| Solenoid Coil | FESTO MSEB-3-24V DC |
| Part No. | 119 804 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
