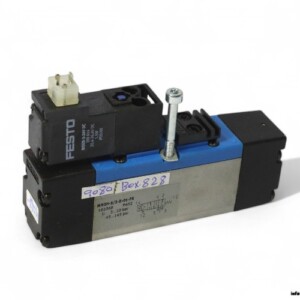

Festo 161069 Single Solenoid Valve
Gebraucht
Auf Lager9 EinheitenVersandbereit
50,00$
SINGLE SOLENOID VALVE
FESTO MN2H-5/2-D-01-FR single solenoid valve with 546256 coil, die-cast aluminium, 1000 l/min flow rate, and electrical actuation for pneumatic systems.24v5/2546256AirAluminiumcoilControldcdie-castFestoIndustrialMN2H-5/2-D-01-FRPneumaticSinglesolenoidValve
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

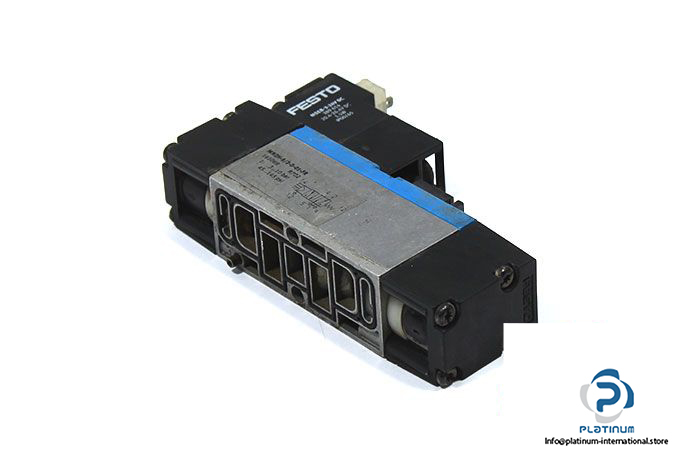

FESTO MN2H-5/2-D-01-FR SINGLE SOLENOID VALVE WITH COIL
The FESTO MN2H-5/2-D-01-FR is a high-performance single solenoid valve engineered for reliable pneumatic control in industrial automation systems. Designed with a piston slide mechanism and robust die-cast aluminium body, it ensures smooth switching, long service life, and compatibility with a wide range of applications. Delivered complete with the FESTO 546256 solenoid coil for efficient 24 V DC operation.
Manufacturer: FESTO
Type: Single Solenoid Valve

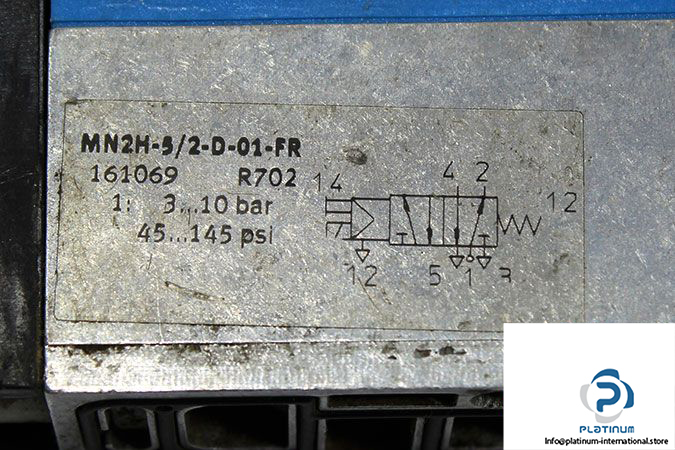

Model: MN2H-5/2-D-01-FR
Part No.: 161069
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston Slide |
| Function | 5/2 Single Solenoid |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | Connection Plate Size 26 mm |
| Material | Die-cast Aluminium |
| Ambient Temperature | -10 ... 50 °C |
| Solenoid Coil Attachment | FESTO 546256 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.8 W |
| Protection Class | IP00 / IP65 |
