Festo 161432 32X40 Round Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
Round Cylinder
Festo DSW-32-40-P-A-B pneumatic round cylinder with 40 mm stroke and 32 mm piston diameter. Double-acting design with G1/8 connection, flexible cushioning, and sensor compatibility for precision automation tasks.32mm40mmActingAlloyAutomationCylinderDoubleDSW-32-40-P-A-BFestoG1/8HighIndustrialPistonPneumaticRoundSteelStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

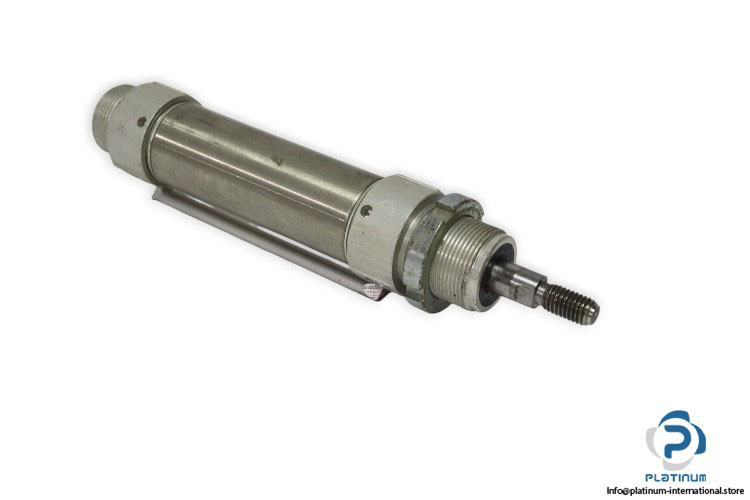

Festo DSW-32-40-P-A-B Round Cylinder
The Festo DSW-32-40-P-A-B is a high-performance round cylinder from the DSW series, designed for industrial pneumatic applications requiring precision, durability, and compact form. With double-acting piston action, flexible cushioning, and compatibility with proximity sensors, it ensures reliable operation in automation systems.
Manufacturer: Festo
Type: Round Cylinder

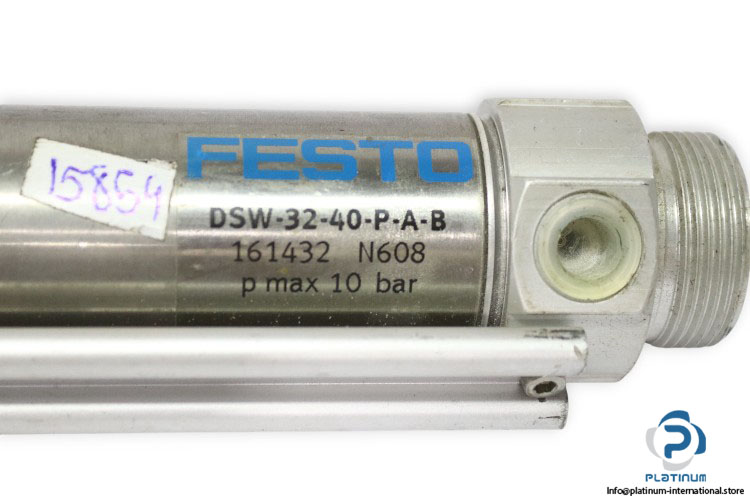

Model: DSW-32-40-P-A-B
Part No.: 161432
Ref. Code: N608
Series: DSW
| Stroke Length | 40 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | 12 mm |
| Pneumatic Connection | G1/8 |
| Cushioning | Flexible cushioning rings or plates at both ends (P) |
| Operating Medium | Dried compressed air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Position Detection | With proximity sensor |
| Variants | Single-ended piston rod |
| Piston Action | Double-acting |
| Material Cover | Wrought aluminum alloy |
| Material Seals | TPE-U(PU), NBR |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | High-alloy steel |
| Ambient Temperature | -20 to 80 °C |
