Festo 161596 Round Cylinder
Neu
Auf Lager1 EinheitVersandbereit
Round Cylinder
The Festo DSW-63-40-PPV-A-B is a double-acting pneumatic round cylinder with a 40 mm stroke, 63 mm piston diameter, and adjustable cushioning for smooth industrial motion.161596ActingAutomationCylinderDoubleDSW-63-40-PPV-A-BFestoG3/8IndustrialPneumaticProximityRoundSwitch
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

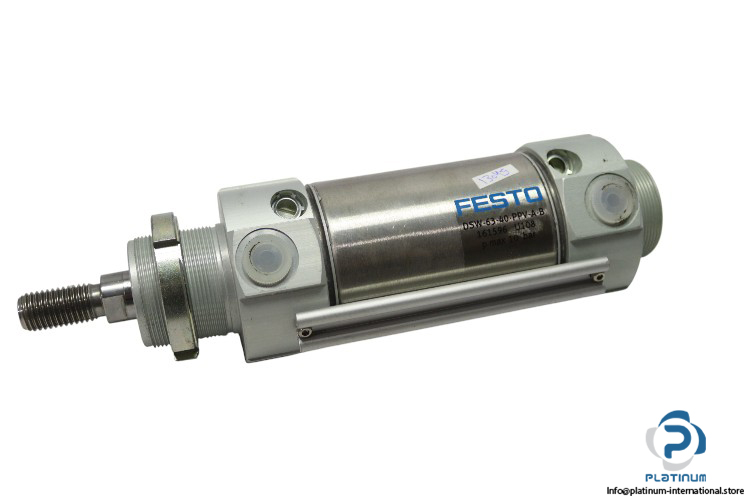

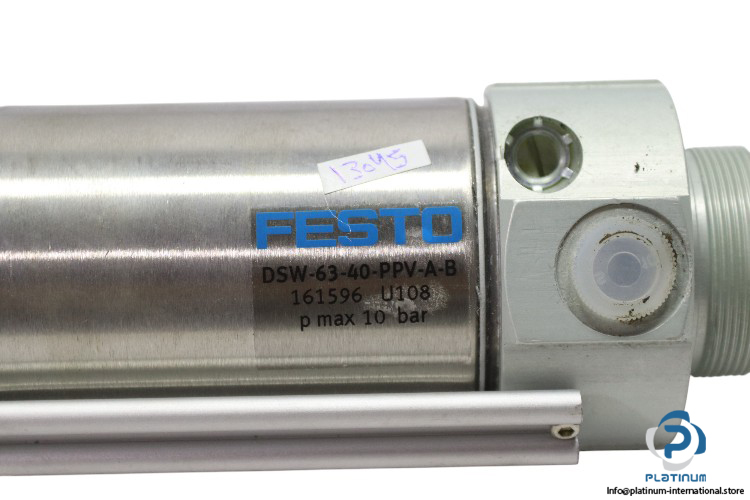

Festo DSW-63-40-PPV-A-B Round Cylinder
The Festo DSW-63-40-PPV-A-B is a high-performance pneumatic round cylinder designed for dynamic industrial motion applications. With adjustable pneumatic cushioning and integrated proximity switch capability, it delivers precision, durability, and flexibility in operation.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-63-40-PPV-A-B
Part No.: 161596
| Stroke | 40 mm |
| Piston Diameter | 63 mm |
| Cushioning | Pneumatic cushioning adjustable at both ends (PPV) |
| Design | Piston, Piston rod, Cylinder barrel |
| Position Detection | With proximity switch |
| Variants | Single-ended piston rod |
| Operating Pressure | 1 “ 10 bar |
| Function | Double-acting |
| Ambient Temperature | -20 “ 80 °C |
| Cushion Length | 27 mm |
| Pneumatic Connection | G3/8 |
