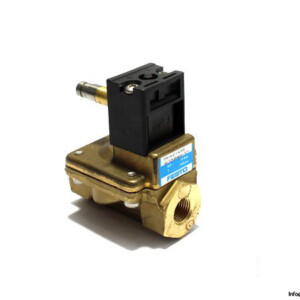

Festo 161725 Single Solenoid Valve With Coil
Neu
Auf Lager5 EinheitenVersandbereit
166,66$
SINGLE SOLENOID VALVE
FESTO MN1H-2-1/4-MS 2/2-way electrically actuated solenoid valve with diaphragm design and brass body, includes 24V DC solenoid coil.2/2-Way24vActuatedAirbrasscoilControlDiaphragmElectricalFestoflowMN1H-2-1/4-MSMSN1G-24VPneumaticSinglesolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

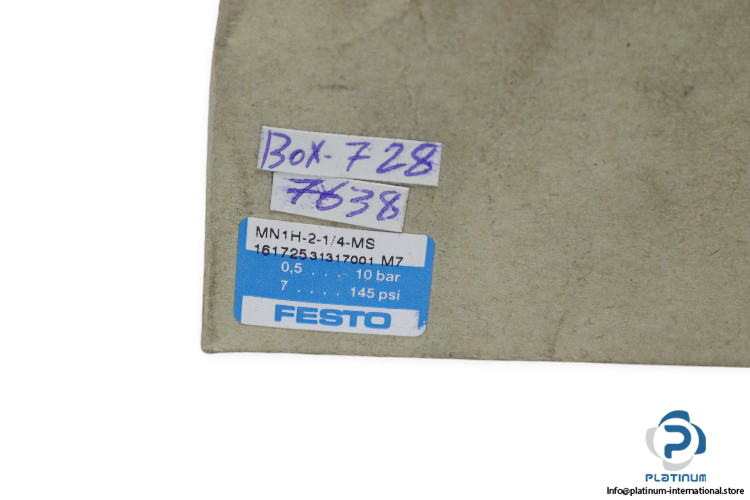

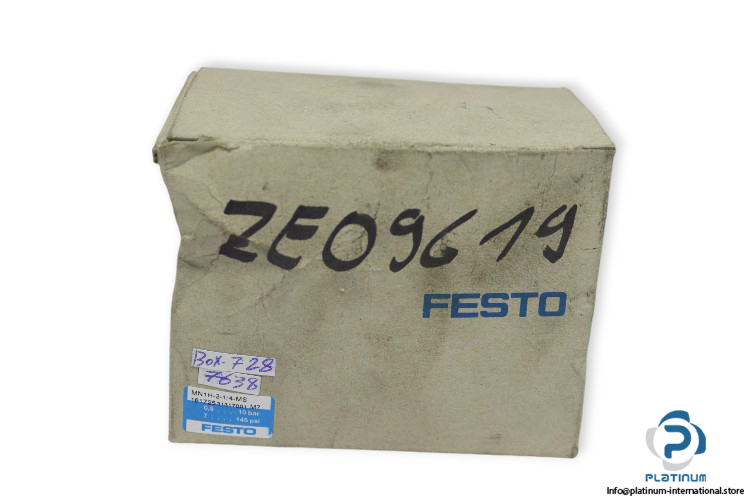

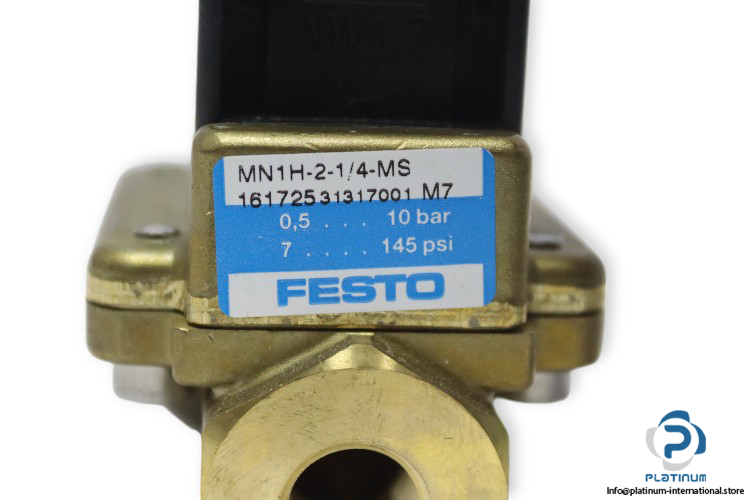

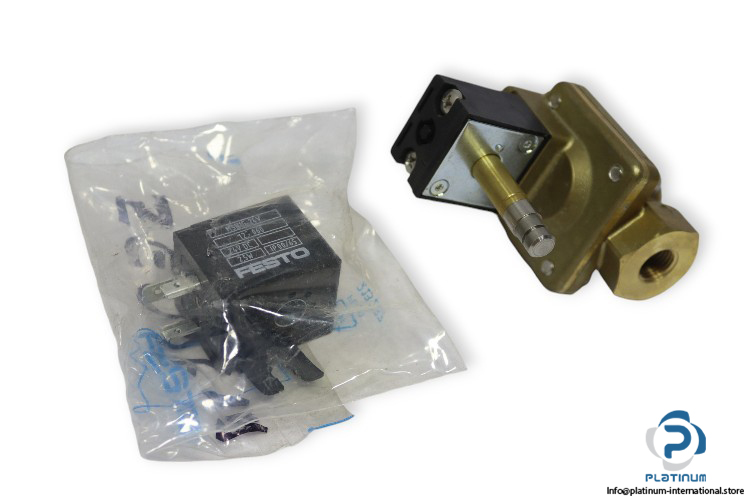

FESTO MN1H-2-1/4-MS SINGLE SOLENOID VALVE WITH SOLENOID COIL
The FESTO MN1H-2-1/4-MS is a high-performance single solenoid valve engineered for precise air control applications. Its monostable 2/2-way function and robust diaphragm design ensure reliable shut-off and flow regulation. The valve is electrically actuated and includes the FESTO MSN1G-24V solenoid coil for efficient control and integration.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MN1H-2-1/4-MS
Part No.: 161725
Valve Technical Information
- Fluid: Air
- Design: Diaphragm valve
- Function: 2/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: 0.5 … 10 bar
- Pneumatic Connection: G1/4
- Material: Brass
- Ambient Temperature: -10 … 60 °C

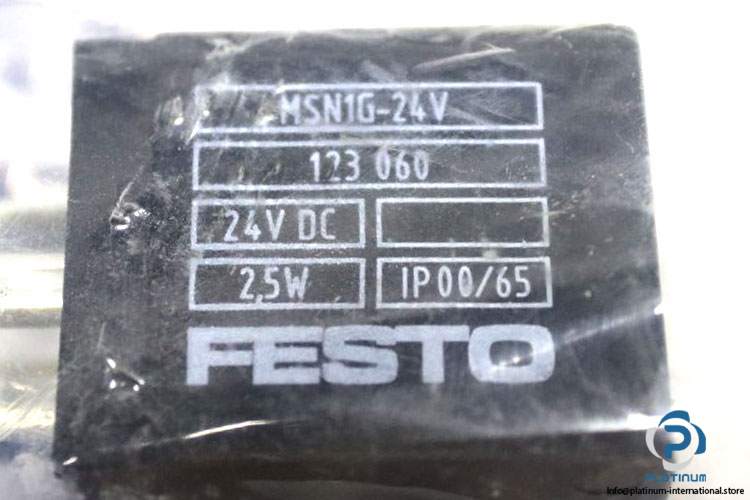

Solenoid Coil Attachment: FESTO MSN1G-24V
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSN1G-24V
Part No.: 123060
Solenoid Coil Technical Information
- Supply Voltage: 24 V DC
- Power Consumption: 2.5 W
- Protection Class: IP00 / IP65
