Festo 161728 Single Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
SINGLE SOLENOID VALVE
FESTO MN1H-2-1/2-MS diaphragm valve with 2/2-way function, includes 24V DC solenoid coil, ideal for industrial pneumatic control systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

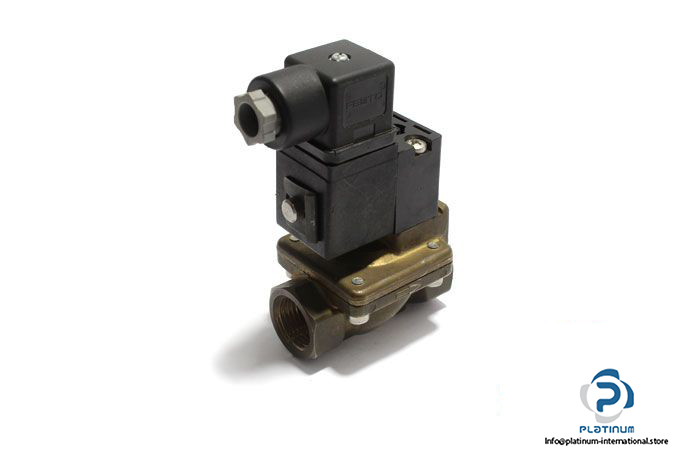

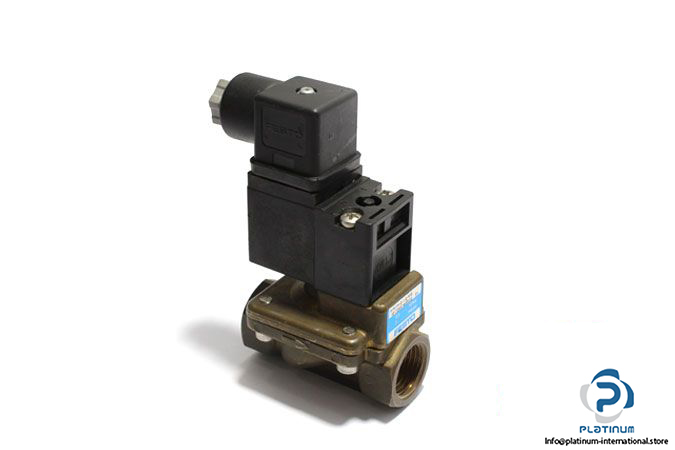

FESTO MN1H-2-1/2-MS SINGLE SOLENOID VALVE WITH COIL
The FESTO MN1H-2-1/2-MS is a high-performance single solenoid valve, engineered for precise air control in industrial environments. Featuring a diaphragm design and monostable 2/2-way function, it delivers reliable operation under varying pressure conditions. This unit includes the FESTO MSN1G-24V solenoid coil for optimal actuation and control.
Manufacturer: FESTO
Type: Single Solenoid Valve

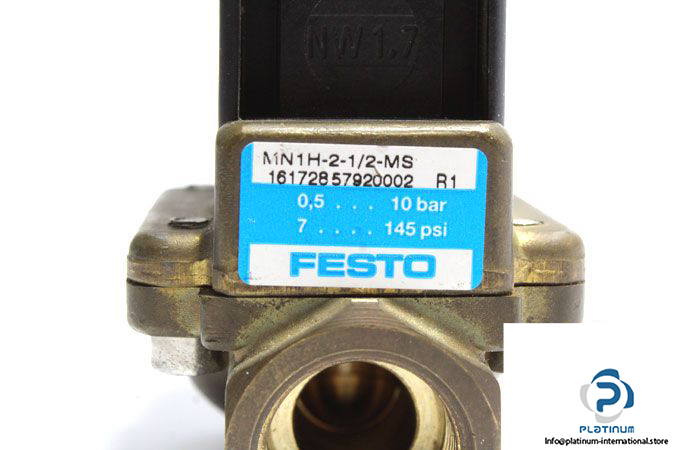

Model: MN1H-2-1/2-MS
Part No.: 161728
Coil Technical Information
| Fluid | Air |
| Design | Diaphragm Valve |
| Valve Function | 2/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Medium Pressure | 0.5 / 10 bar |
| Nominal Flow Rate | 3100 l/min |
| Material | Brass |
| Pneumatic Connection | G1/2 |
| Ambient Temperature | -10 / 60 °C |

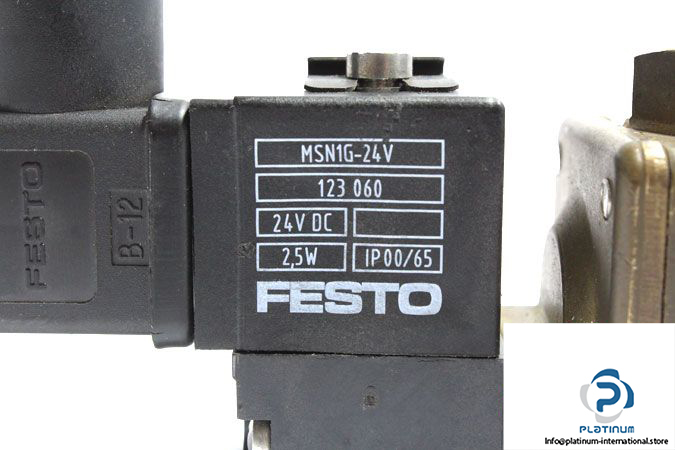

| Solenoid Coil Attachment | FESTO MSN1G-24V |
| Part No. | 123060 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
