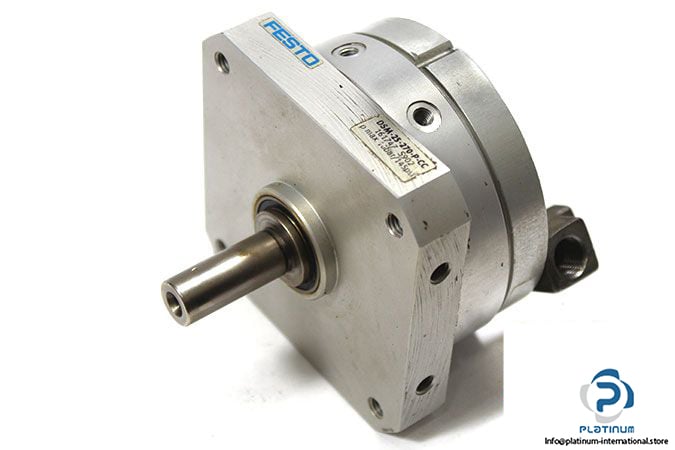

Festo 161747 Rotary Actuator

Manufacturer: FESTO

Type: Rotary Actuator

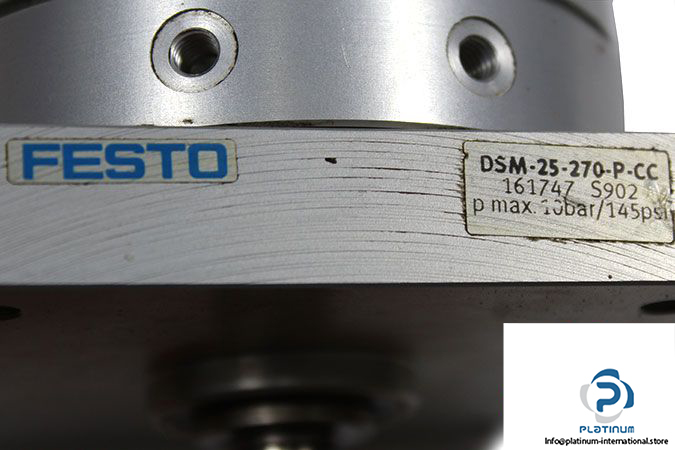

Model: DSM-25-270-P-CC

Alternative Model: DSM-25-270-CC-A-B

Part No.: 161747

Alternative Part No.: 547580



Materials

  Housing: Wrought Aluminum Alloy

  Drive Shaft Material: Steel, Nickel-Plated

Size: 25

Cushioning Angle: 10 deg

Range of Swivel Angle: 0…246 deg

Fluid: Air

Operating Pressure: 1.5…10 bar

Ambient and Fluid Temperature: -10…60 °C

Max. Axial Force: 50 N

Max. Radial Force: 120 N

Design: Rotary

Mode of Operation: Double-acting

Position Sensing: For Proximity Sensor

Pneumatic Connection: M5

Weight: 0.70 kg
