Festo 161749 Swivel Module

Manufacturer: Festo

Type: Swivel Module

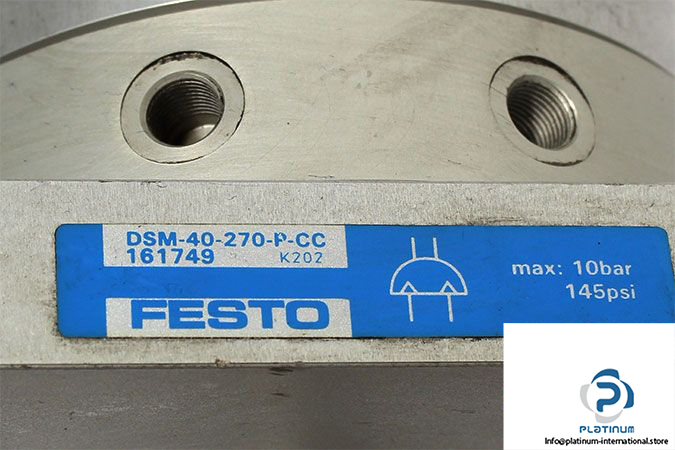

Model: DSM-40-270-P-CC

Alternative Model: DSM-40-270-CC-A-B

Part No.: 161749

Alternative Part No: 547588

Size: 40

Cushioning Angle: 15 deg

Range of Swivel Angle: 0…240 deg

Swivel Angle: 240 deg

Operating Pressure: 1.5…10 bar

Fluid: Air

Design: Rotary Vane

Torque at 6 bar: 20 Nm

Pneumatic Connection: G1/8”

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum
