Festo 162583 Pressure Regulator
Neu
Auf Lager1 EinheitVersandbereit
Pressure Regulator
The FESTO LR-D-7-MINI Pressure Regulator is designed for precise control of **compressed air** and **inert gas** systems. With a regulation range of 0.5 to 7 bar and a nominal flow rate of 1600 l/min, it offers efficient performance in a compact design.1/4AirAmbientComponentsCompressedconnectiondie-castFestoflowGGasIndustrialInertLR-D-7-MININominalPneumaticPressureRangeRateRegulationregulatorTemperatureZinc
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

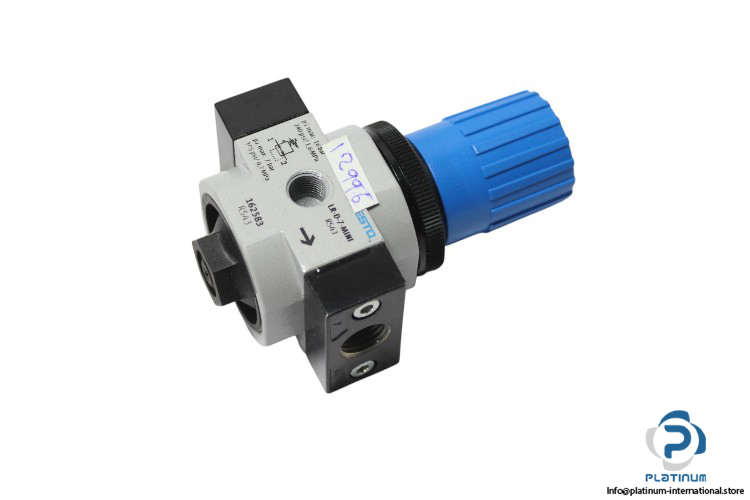

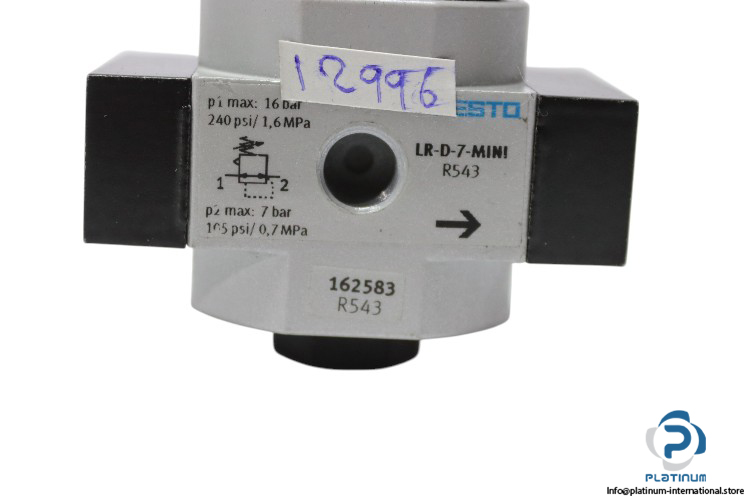

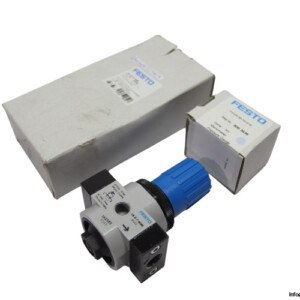

FESTO LR-D-7-MINI Pressure Regulator
The FESTO LRD7MINI Pressure Regulator is a compact and reliable solution designed for regulating pressure in compressed air or inert gas systems. Made of durable die-cast zinc, it offers efficient and precise control with a wide pressure regulation range.
Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-D-7-MINI
Part No.: 162583
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Pressure Regulation Range | 0.5 ... 7 bar |
| Operating Pressure Max. | 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| P2 Max. | 7 bar / 105 PSI / 0.7 MPa |
| Nominal Flow Rate | 1600 l/min |
| Pneumatic Connection | G 1/4 |
| Material | Die-Cast Zinc |
| Ambient Temperature | -10 ... 60 °C |
