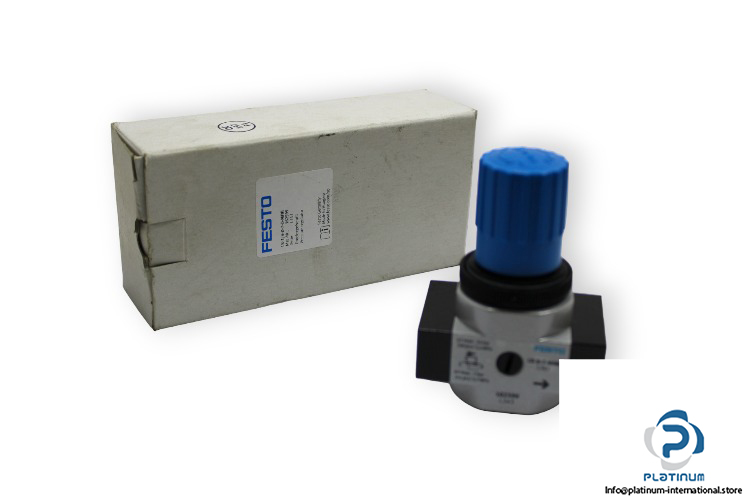

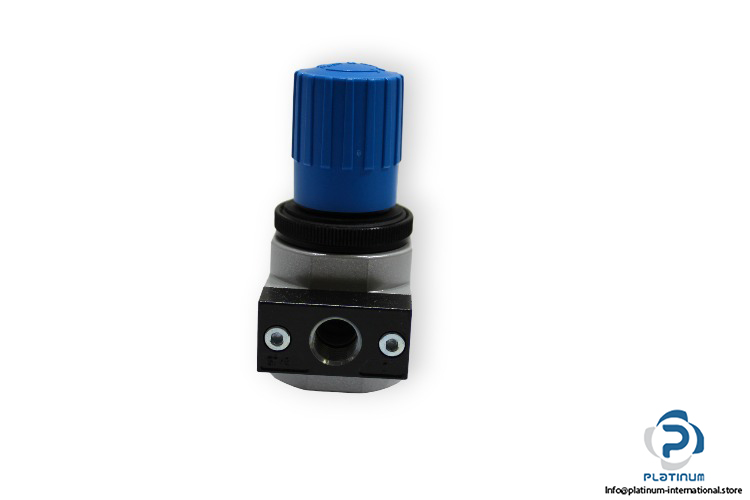

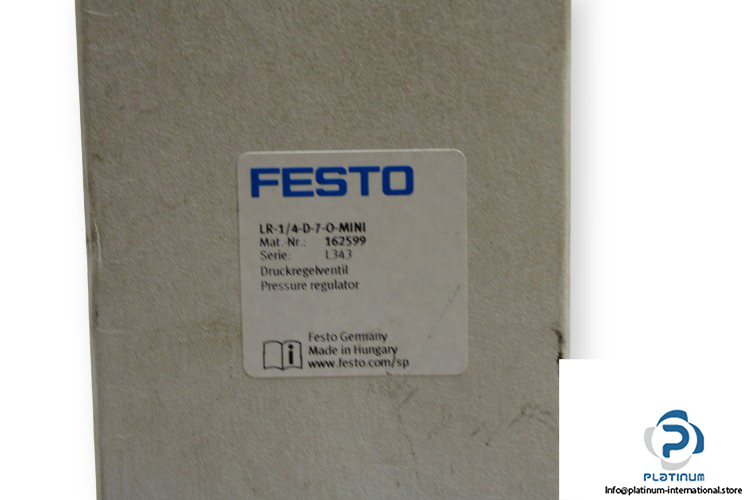

Festo 162599 Pressure Regulator

Manufacturer: FESTO

Type: Pressure Regulator

Model: LR-1/4-D-7-O-MINI

Part No.: 162599

Size: Mini

Actuator lock: Rotary knob with detent

Fluid: Air

Pressure gauge: G1/8 prepared

Operating pressure: 1 bar … 16 bar

Pressure regulation range: 0.5 bar … 7 bar

Max. pressure hysteresis: 0.2 bar

Standard nominal flow rate: 1600 l/min

Ambient temperature: -10 °C … 60 °C

Pneumatic connection 1: G1/4

Pneumatic connection 2: G¼

Material of sub-base: Die-cast zinc
