Festo 162613 Filter
Gebraucht
Auf Lager1 EinheitVersandbereit
Filter FESTO LF-D-5M-MIDI pneumatischer Filter mit 5 µm Filtration, 1800 l/min Durchflussrate und manuellem Kondensatableiter, entwickelt für zuverlässige Luftaufbereitung in industriellen Systemen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

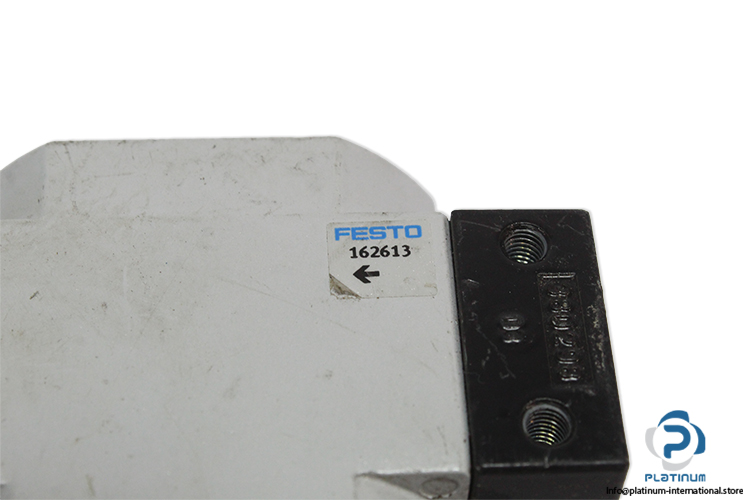

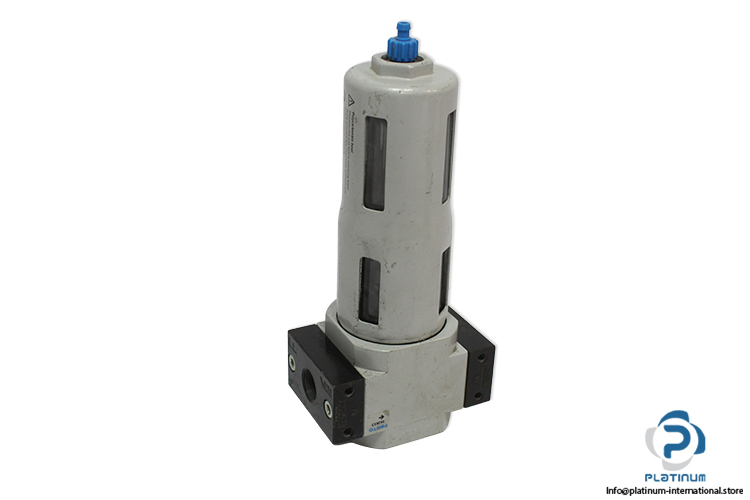

FESTO LF-D-5M-MIDI Filter
The FESTO LF-D-5M-MIDI is a high-performance pneumatic filter designed for efficient air preparation in industrial systems. It ensures reliable filtration and condensate separation, supporting stable operation in compressed air applications.
Manufacturer: FESTO
Type: Filter
Model: LF-D-5M-MIDI
Part No.: 162613
| Size | Midi |
| Series | D |
| Mounting Position | Vertical +/- 5° |
| Grade Of Filtration | 5 µm |
| Condensate Drain | Manually Rotating |
| Structural Design | Sinter Filter With Centrifugal Separator |
| Bowl Guard | Metal Bowl Guard |
| Symbol | 00991519 |
| Operating Pressure | 0 Bar ... 16 Bar |
| Normal Nominal Flow Rate (Normalized To DIN 1343) | 1800 L/Min |
| Operating Medium | Inert Gas |
| Corrosion Resistance Class (CRC) | 2 - Moderate Corrosion Stress |
| LABS (PWIS) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -10 °C ... 60 °C |
| Pneumatic Connection | G3/8 |
| Housing Material | Die-Cast Zinc |
