Festo 162894 Single Solenoid Valve
Gebraucht
Auf Lager3 EinheitenVersandbereit
40,00$
SINGLE SOLENOID VALVE
FESTO CPE10-M1H-5L-QS6 5/2-way single solenoid valve with MSZD-3-24 DC coil, designed for efficient air control in industrial pneumatic systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

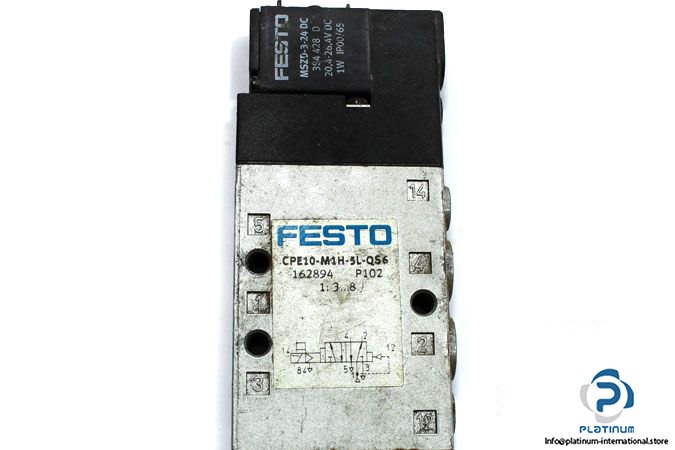

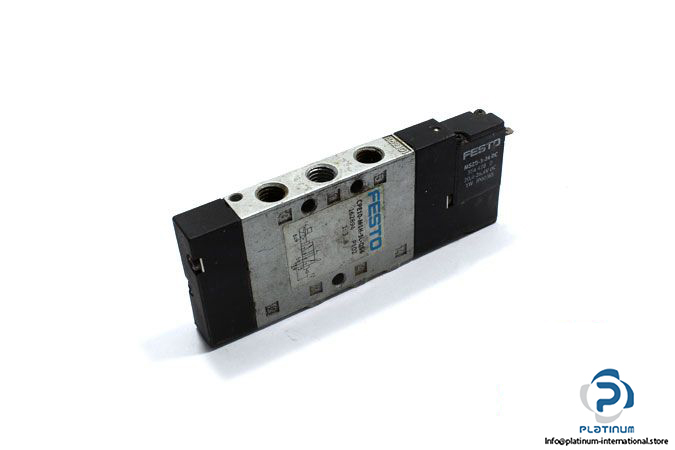

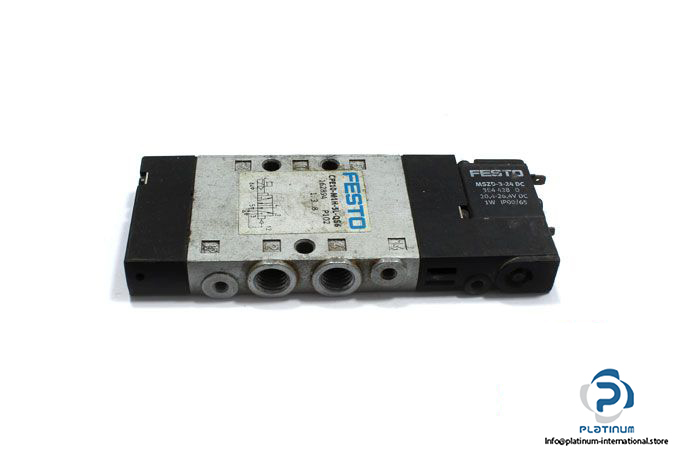

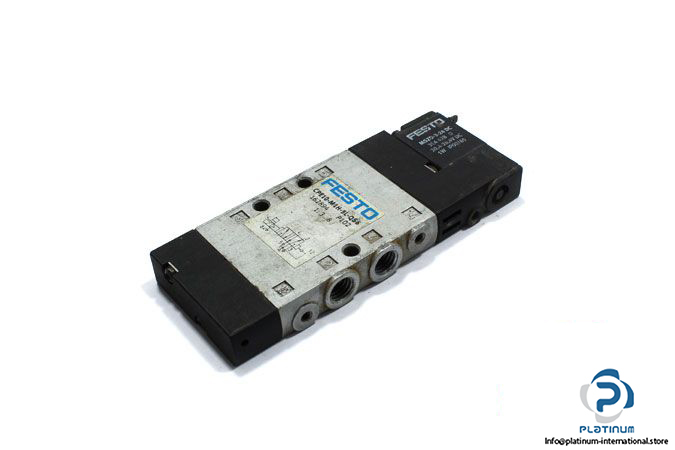

FESTO CPE10-M1H-5L-QS6 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE10-M1H-5L-QS6 is a compact and efficient single solenoid valve engineered for reliable pneumatic automation. Designed with a piston slide mechanism, it delivers precise 5/2-way monostable control in air systems. Combined with the FESTO MSZD-3-24 DC solenoid coil, it ensures fast switching and consistent performance under industrial operating conditions.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE10-M1H-5L-QS6
Part No.: 162894
Coil Technical Information
| Fluid | Air |
| Design | Piston Slide |
| Function | 5/2-way, Monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 / 8 bar |
| Nominal Flow Rate | 320 l/min |
| Pneumatic Connection | QS-6 |
| Material | Die-cast Aluminum |
| Ambient Temperature | -10 / 50 °C |
| Attachment | FESTO MSZD-3-24 DC SOLENOID COIL |
| Part No. | 384428 D |
| Supply Voltage | 20.4 / 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
