Festo 162914 Single Solenoid Valve
Neu
Auf Lager1 EinheitVersandbereit
SINGLE SOLENOID VALVE
FESTO CPE14-M1H-5LS-QS-6 pneumatic valve with MSZB-3-24V DC coil provides 5/2-way control, aluminum body, and 500 l/min flow rate.1198015/2AirAluminumcoilCPE14-M1H-5LS-QS-6dcFestoIndustrialMSZB-3-24VPneumaticSinglesolenoidValveWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

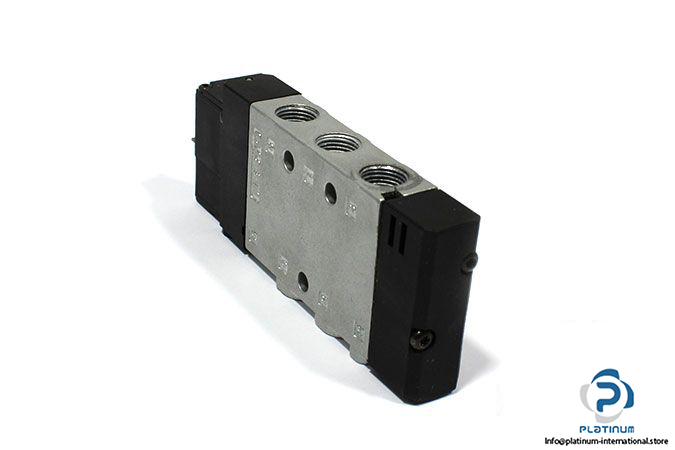

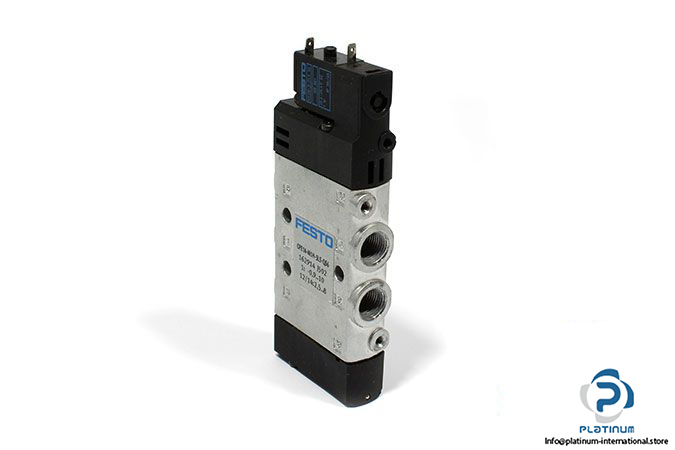

FESTO CPE14-M1H-5LS-QS-6 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE14-M1H-5LS-QS-6 is a high-performance single solenoid valve designed for precision pneumatic control. Featuring a piston slide design and 5/2-way monostable function, it provides reliable switching with fast response times in various industrial applications. Supplied with FESTO MSZB-3-24V DC solenoid coil for efficient actuation.
Manufacturer: FESTO
Type: Single Solenoid Valve

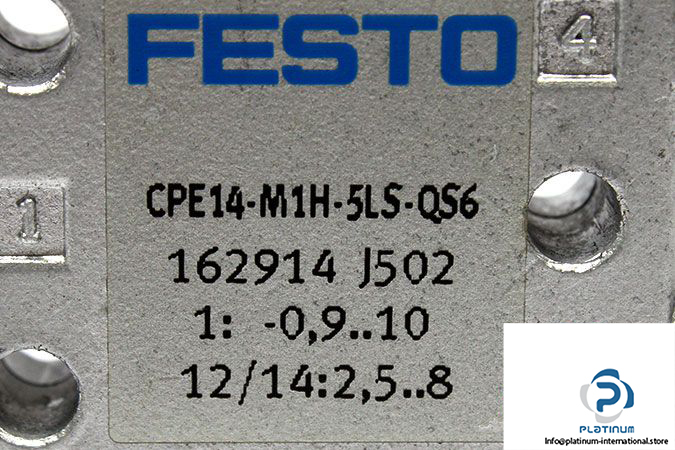

Model: CPE14-M1H-5LS-QS-6
Part No.: 162914
Coil Technical Information
| Fluid | Air |
| Design | Piston Slide |
| Function | 5/2-way Monostable |
| Type of Actuation | Pneumatically |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 3 to 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | QS-6 |
| Material | Aluminum |
| Ambient Temperature | -10 to 50 °C |

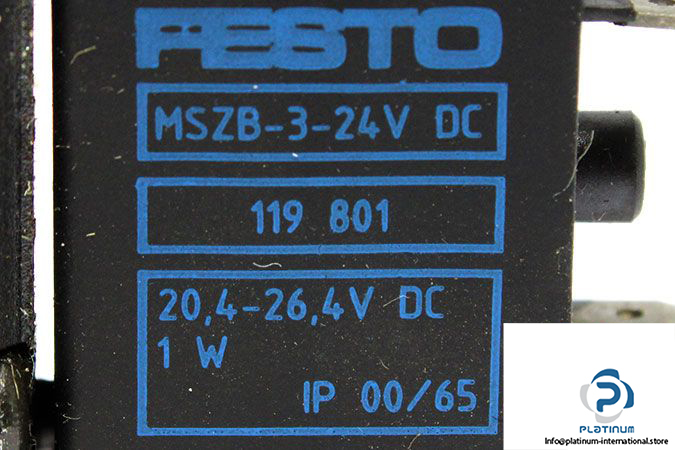

| Attachment | FESTO 119801 SOLENOID COIL |
| Part No. | 119801 |
| Voltage | 20.4 to 26.4 VDC |
| Power Consumption | 1 W |
| Protection Class | IP00 / IP65 |
