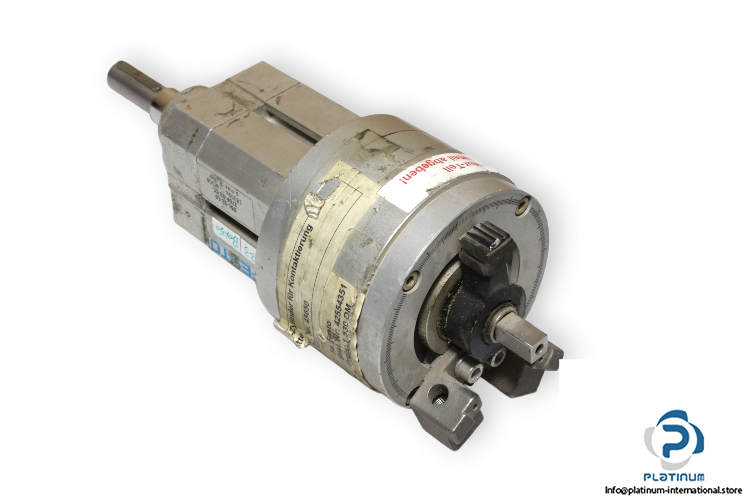

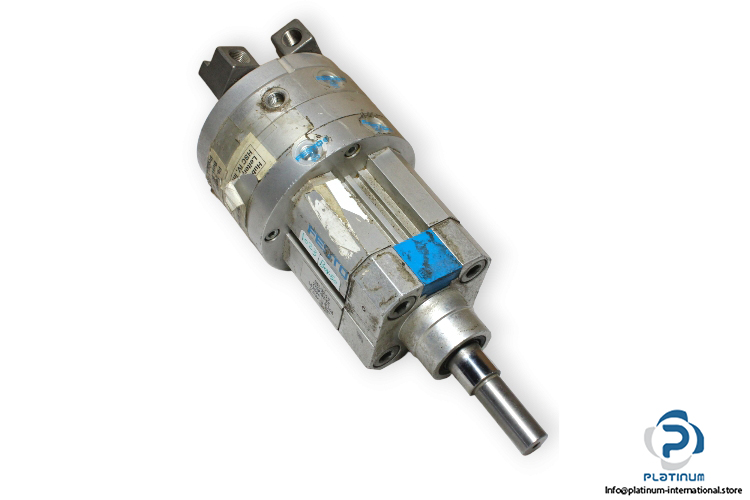

Festo 163094 Swivel/Linear Unit

Manufacturer: FESTO
Type: Swivel/Linear Unit

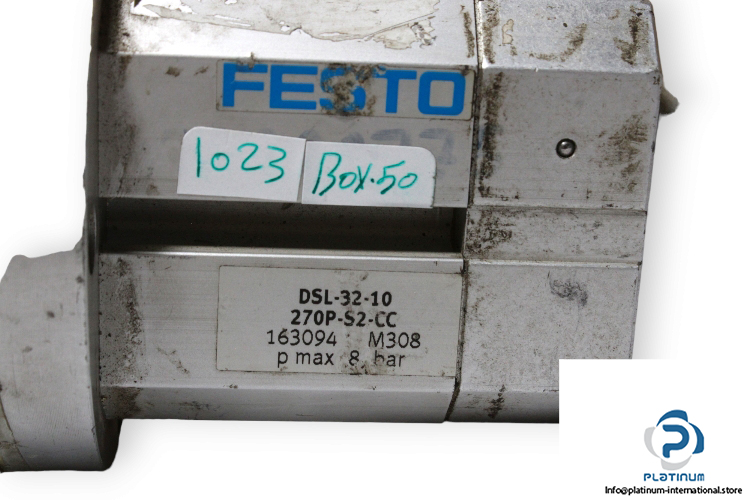

Model: DSL-32-10 270P-S2-CC
Part no.: 163094
Successor: 556529

Fluid: Air
Mode of operation: double-acting
Design structure: Rotary vane
Damping Angle: 12.5 °
Rotation angle adjustment range: 270°
Stroke: 10 mm
Piston Diameter: 32 mm
Max. Impact Speed: 500 mm/s
Cushioning length: 8 mm
Pressure Range: -10 … 60°C
Position detection: For Inductive,Proximity sensor
Pneumatic Connection: G 1/8
Fluid Temperature Range: -10 … 60°C
