Festo 163401 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
High-performance Festo pneumatic cylinder with 63 mm piston, 25 mm stroke, and fully adjustable cushioning”ideal for precise and durable industrial automation applications.63ActingActuatorAutomationCylinderDNCDoubleDutyFestoHeavyIndustrialISOmmMotionPistonPneumaticPrecisionSeries
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

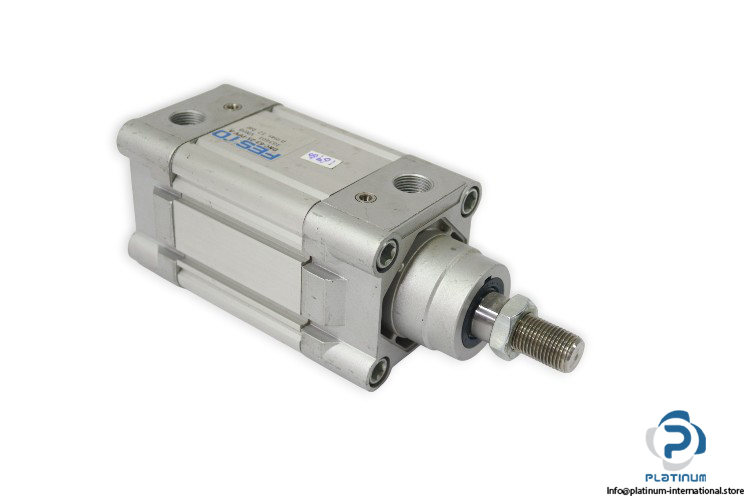

Festo DNC-63-25-PPV-A ISO Cylinder
A high-performance ISO-compliant pneumatic cylinder engineered for industrial automation systems that demand precision, durability, and long operating life. Featuring a powerful 63 mm piston, smooth 25 mm stroke, and fully adjustable cushioning, this cylinder provides exceptional motion control and consistent output under tough working conditions. Ideal for machinery builders, maintenance engineers, and automated production lines seeking a reliable and efficient actuating solution from one of the world™s leading pneumatic brands.
Manufacturer: Festo
Type: ISO Cylinder

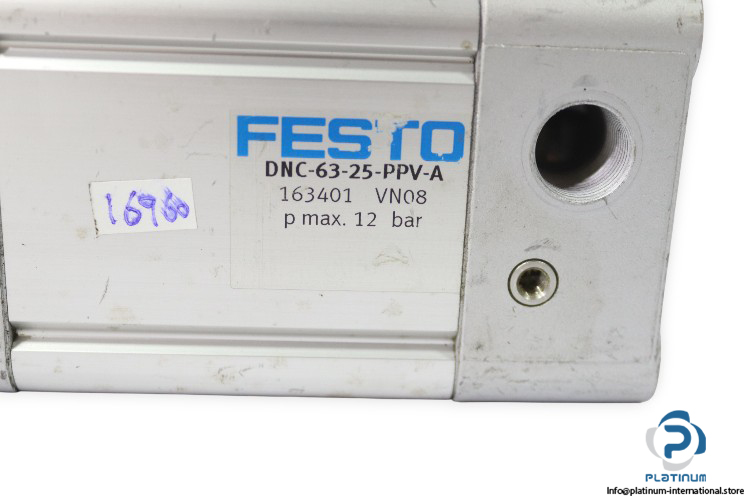

Model: DNC-63-25-PPV-A
Part No.: 163401
Code: VN08
| Operating Medium | Compressed Air |
| Pressure Range | 0.6 bar to 12 bar |
| Stroke | 25 mm |
| Piston Diameter | 63 mm |
| Piston Rod Thread | M16x1.5 |
| Cushioning | Pneumatic Cushioning, Adjustable Both Ends |
| Piston-Rod End | Male Thread |
| Variants | Piston Rod at One End |
| Mode of Operation | Double-Acting |
| Cushioning Length | 22 mm |
| Theoretical Force at 6 bar (Return Stroke) | 1682 N |
| Theoretical Force at 6 bar (Advance Stroke) | 1870 N |
| Ambient Temperature | -20 °C to 80 °C |
| Material Cover | Die-Cast Aluminum, Coated |
| Material Seals | TPE-U(PU) |
| Material Piston Rod | High-Alloy Steel |
| Material Cylinder Barrel | Wrought Aluminum Alloy, Smooth Anodized |
| Connection | G3/8 |
