Festo 163412 ISO Cylinder

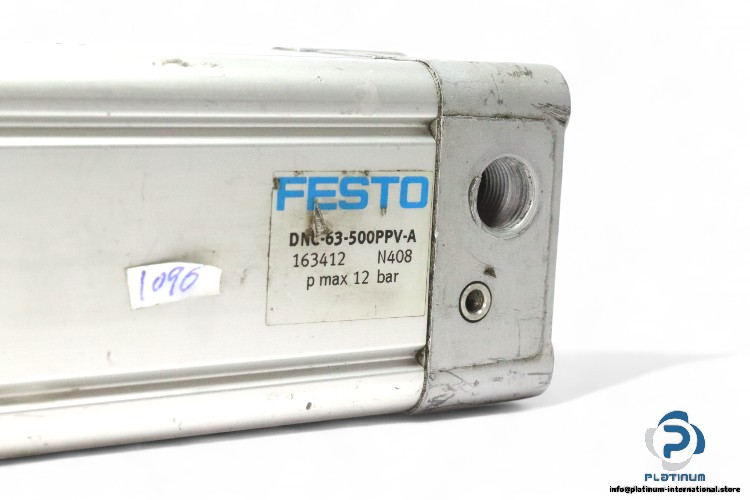

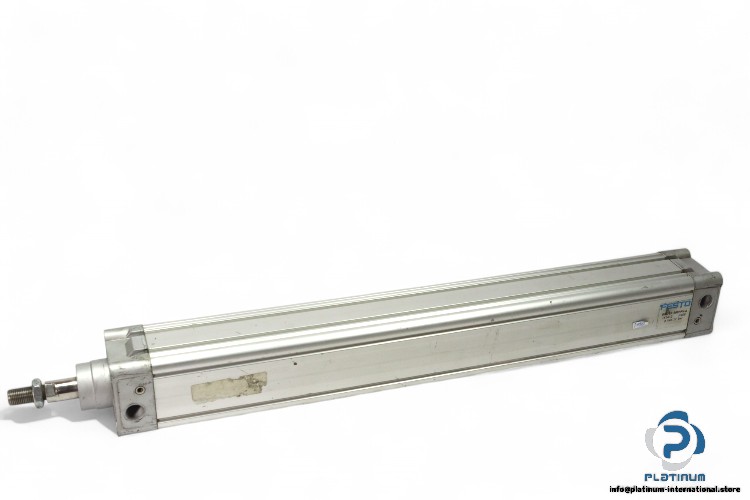

FESTO DNC-63-500PPV-A ISO CYLINDER

The Festo DNC-63-500PPV-A ISO Cylinder is a high-quality, reliable solution for various industrial automation applications. With a 63 mm bore diameter, 500 mm stroke, and durable construction, this double-acting cylinder is designed to perform under demanding conditions.

Manufacturer: Festo

Type: ISO CYLINDER

Model: DNC-63-500PPV-A

Part No.: 163412

Technical Specifications

• Bore Diameter: 63 mm
• Stroke: 500 mm
• Rod Diameter: 20 mm
• Mode of Operation: Double Acting
• Shape: Square
• Rod Direction: One Side
• Piston Rod End: Male
• Max Temperature: 80 °C
• Max Operating Pressure: 12 bar
• Port Size: G3/8
