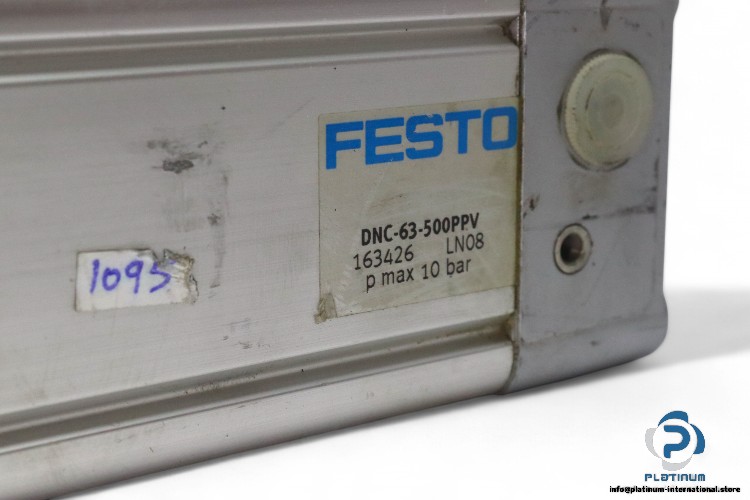

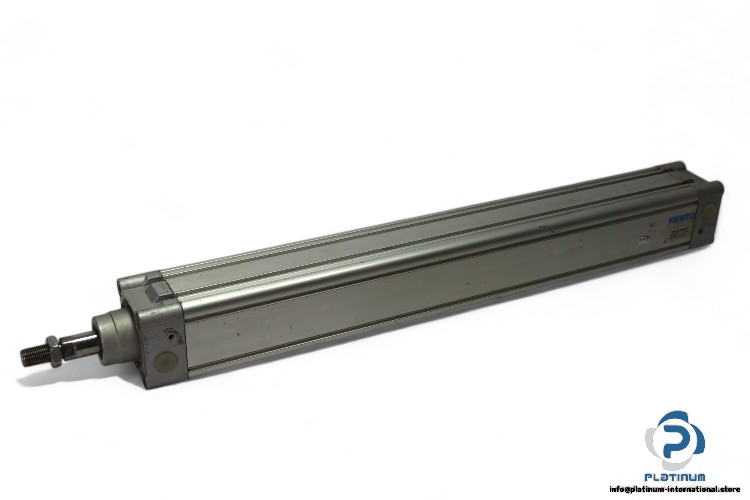

FESTO DNC-63-500PPV ISO CYLINDER
The FESTO DNC-63-500PPV ISO Cylinder is designed for precision, durability, and high performance. Ideal for a wide range of industrial applications, this double-acting square-shaped cylinder offers excellent efficiency and reliable operation in demanding conditions.
Manufacturer: FESTO
Type: ISO CYLINDER
Model: DNC-63-500PPV
Part No.: 163426
Technical Specifications
- Bore Diameter: 63 mm
- Stroke: 500 mm
- Rod Diameter: 20 mm
- Mode of Operation: Double acting
- Shape: Square
- Rod Direction: One Side
- Piston Rod End: Male
- Max Temperature: 80 °C
- Max. Operating Pressure: 10 bar
- Port Size: G3/8
