Festo 163462 ISO Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
ISO CYLINDER
Heavy-duty ISO pneumatic cylinder with 800 mm stroke and 100 mm piston diameter. Built from anodized aluminum with adjustable cushioning for precise industrial motion control.100800AdjustableAirAluminumAutomationCushioningcyliCylinderDNC-100-800-P-A-KPdouble-actingFestog1/2HighIndustrialISOmmperformancePistonPneumaticStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

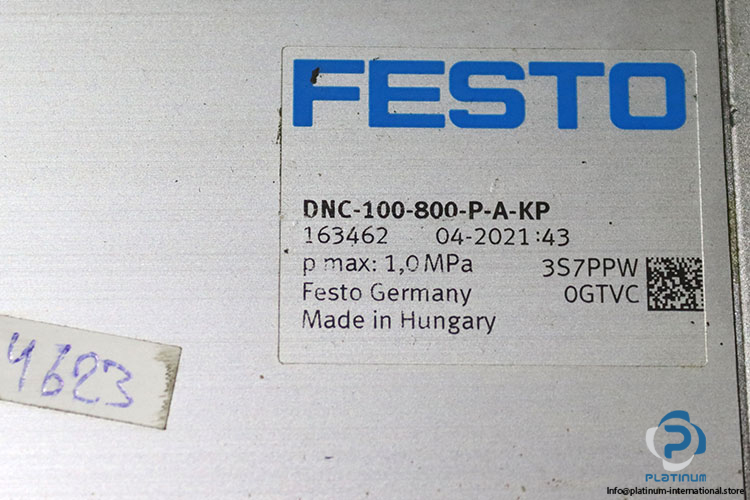

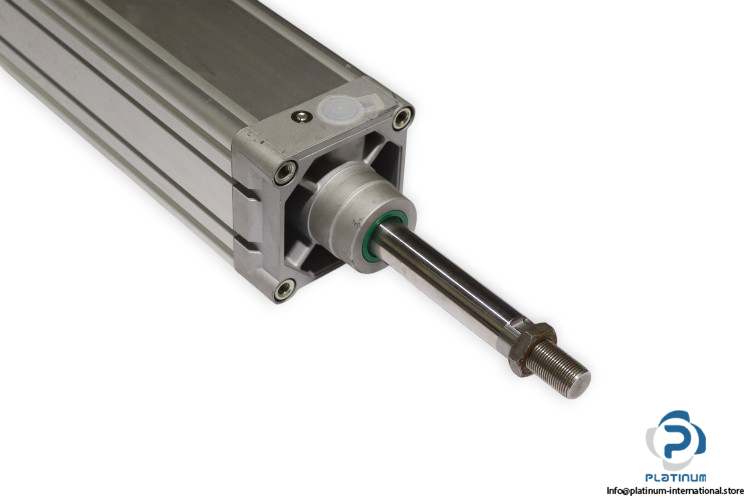

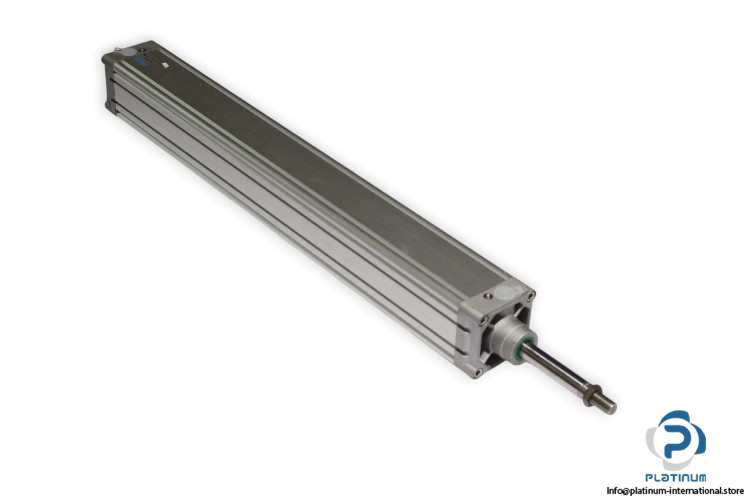

FESTO DNC-100-800-P-A-KP ISO CYLINDER
Robust and high-performance ISO cylinder engineered for precision motion and long service life in industrial pneumatic systems. Built with quality materials and featuring dual cushioning modes, this unit ensures smooth and controlled operation across a wide temperature range.
Manufacturer: Festo
Type: ISO Cylinder
Model: DNC-100-800-P-A-KP
Part No.: 163462
Ref. Code: 3S7PPW 0GTVC
| Stroke | 800 mm |
| Piston Diameter | 100 mm |
| Operating Pressure | Max. 1 MPa |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air |
| Cushioning | Elastic rings/pads at both ends, adjustable pneumatic cushioning |
| Cover Material | Die-cast aluminum, coated |
| Barrel Material | Wrought aluminum alloy, smooth anodized |
| Ambient Temperature | -40 °C to 120 °C |
| Pneumatic Connection | G1/2 |
