ISO CYLINDER
Festo DNC-100-320-PPV-A is a durable ISO-compliant pneumatic cylinder with a 100 mm bore, 320 mm stroke, and 12 bar max pressure, ideal for demanding automation applications.100ActingActuatorAirAutomationboreCompressedCylinderDNC-100-320-PPV-ADoubleFestoHighIndustrialISOmmPneumaticPressure
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

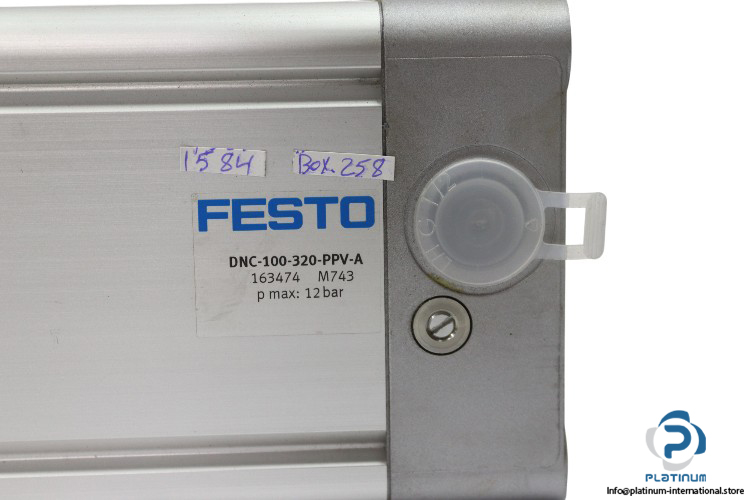

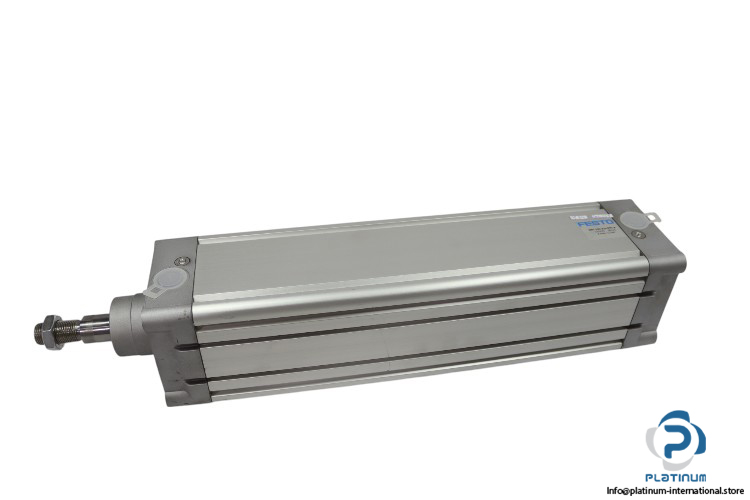

FESTO DNC-100-320-PPV-A ISO CYLINDER
The DNC-100-320-PPV-A from Festo is a high-performance ISO pneumatic cylinder designed for durability, precision, and compatibility with industrial automation systems.
Manufacturer: Festo
Type: ISO Cylinder
Model: DNC-100-320-PPV-A
Part No.: 163474
Ref. Code: M743
Series: DNC
Materials
| Media | Compressed Air |
| Bore Diameter | 100 mm |
| Stroke | 320 mm |
| Bore x Stroke | 100 x 320 mm |
| Rod Diameter | 25 mm |
| Frame Dimensions | 110 x 470 mm |
| Pneumatic Connection | G 1/2 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Ambient Temperature Range | -20 to +80°C |
| Cover | Die-cast Aluminum |
| Material Seals | TPE-U(PU) |
| Material Piston Rod | High-alloy Steel |
| Material Cylinder Barrel | Wrought Aluminum Alloy, Smooth Anodized |
