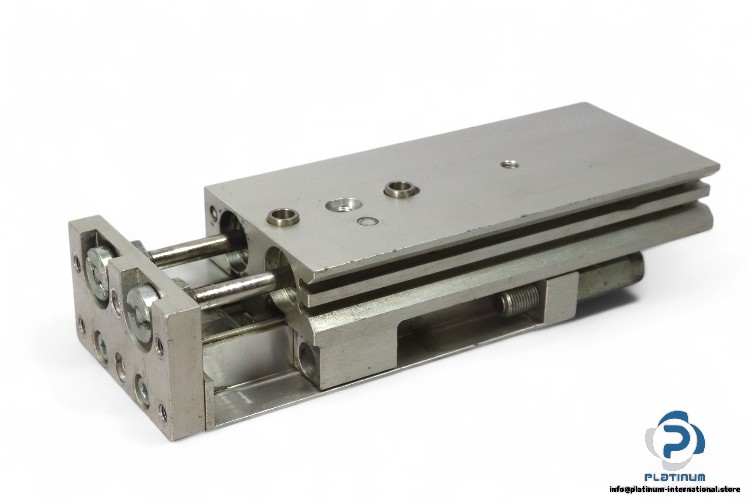

Festo 170565 Mini Slide
Gebraucht
Auf Lager1 EinheitVersandbereit
Mini Slide
The FESTO SLT-16-80-P-A mini slide (Part No. 170565) features an 80 mm stroke, ball bearing guide, and double-acting operation. Ideal for precise and compact pneumatic applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

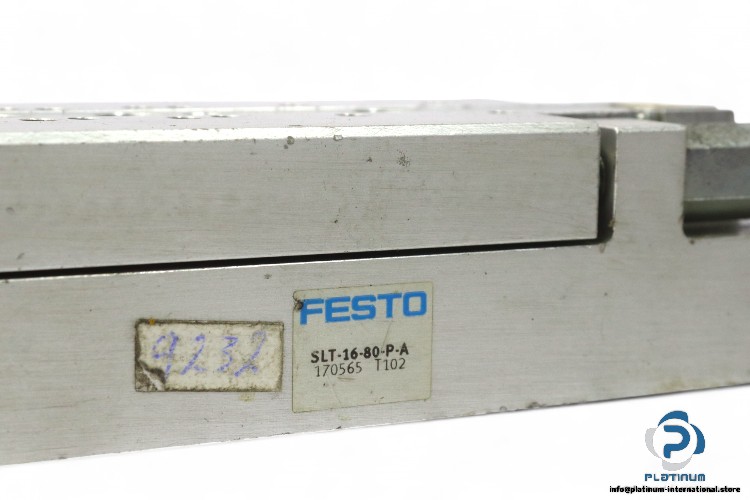

FESTO SLT-16-80-P-A Mini Slide
The FESTO SLT-16-80-P-A Mini Slide (Part No. 170565) is a compact and precise pneumatic actuator designed for smooth linear motion in demanding industrial applications. Featuring a ball bearing cage guide and double-acting operation, this mini slide ensures reliability, flexibility, and long service life.
Manufacturer: FESTO
Type: Mini Slide
Model: SLT-16-80-P-A
Part No.: 170565
| Stroke | 80 mm |
| Adjustable End-Position Range/Length | 12 mm |
| Piston Diameter | 16 mm |
| Cushioning | Flexible cushioning rings/plates at both ends |
| Assembly Position | Any |
| Guide | Ball bearing cage guide |
| Design Structure | Yoke kinematics |
| Position Detection | For proximity sensor |
| Operating Pressure | 1 ... 10 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air (ISO8573-1:2010 [7:4:4]) |
| Corrosion Resistance Class CRC | 0 - No corrosion stress |
| Ambient Temperature | -20 to 60 °C |
| Impact Energy in End Positions | 0.3 Nm |
| Theoretical Force at 0.6 MPa (6 bar), Return Stroke | 207 N |
| Theoretical Force at 0.6 MPa (6 bar), Advance Stroke | 242 N |
| Mounting Type | With through hole |
| Pneumatic Connection | M5 |
| Note on Materials | Free of copper and PTFE |
| Material Cover | Wrought aluminium alloy |
| Material Seals | HNBR |
| Material Housing | Wrought aluminium alloy |
| Material Piston Rod | High alloy steel, non-corrosive |
