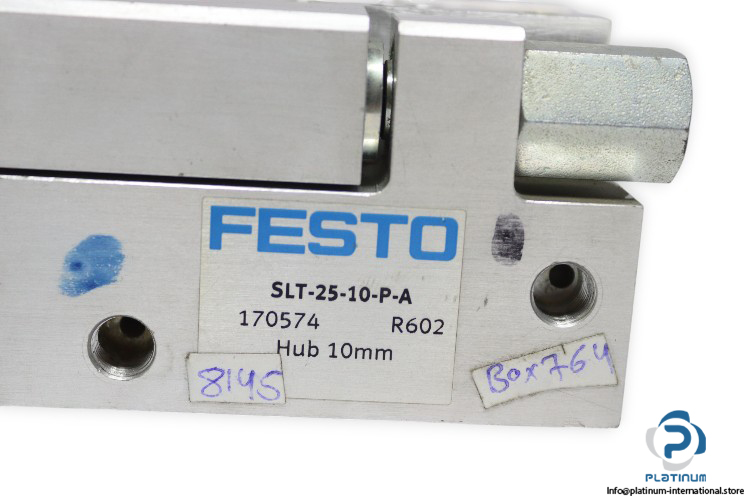

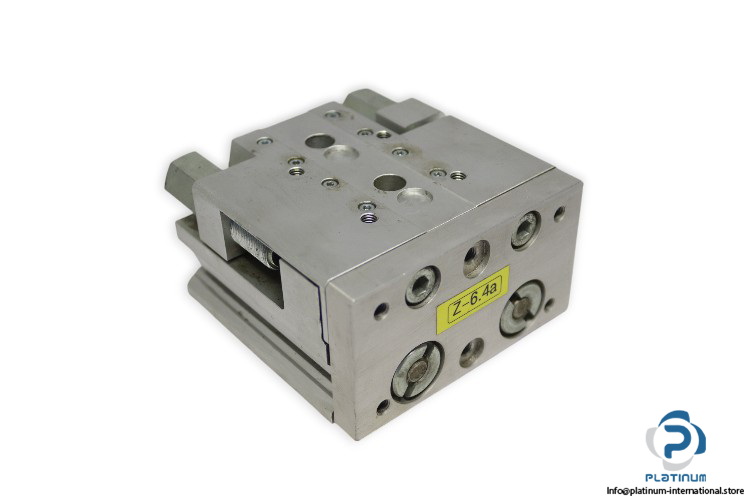

Festo 170574 Mini Slide

Manufacturer: FESTO
Type: Mini slide
Model: SLT-25-10-P-A
Part No.: 170574

Stroke Length: 10 mm
Piston Diameter: 25 mm
Adjustable end-position range/length: 12 mm
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Flexible cushioning ,non-adjustable
Position Sensing: For proximity sensing
Material housing: Wrought Aluminum alloy
Material piston rod: High alloy steel, non-corrosive
Pneumatic Connection: G1/8
Temperature: -20 … 60 °C
