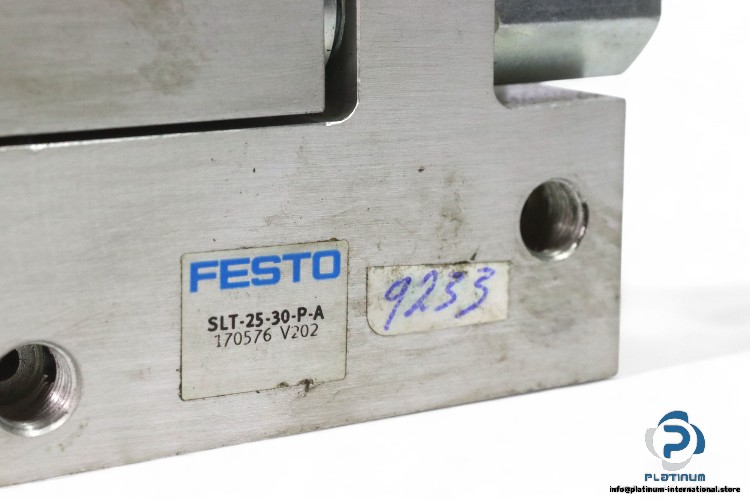

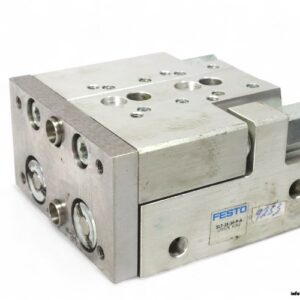

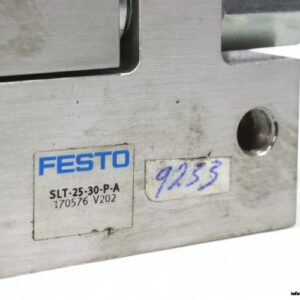

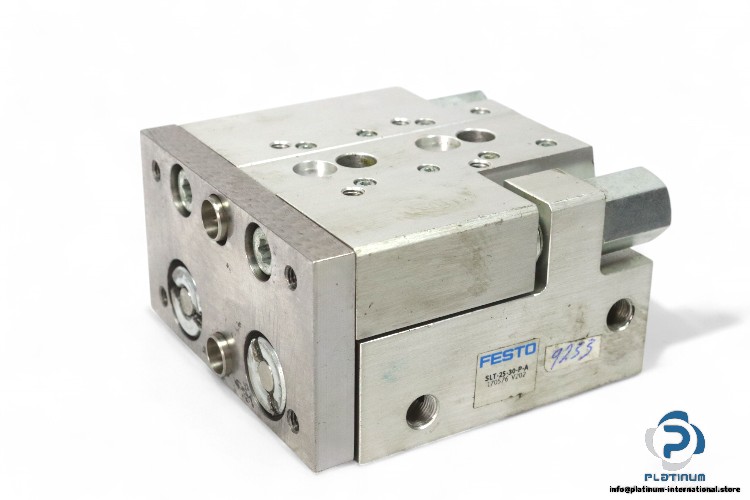

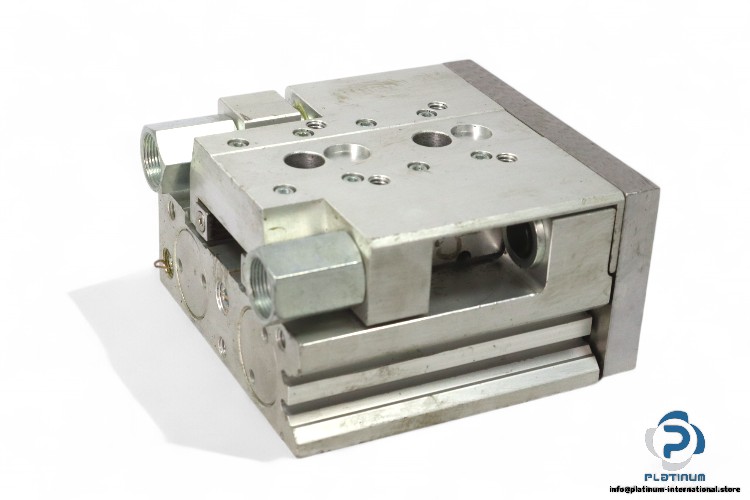

Festo 170576 Mini Slide
The Festo SLT-25-30-P-A Mini Slide features a 30 mm stroke, 25 mm piston diameter, and flexible cushioning for precision motion. Ideal for compact industrial automation tasks.
Festo Mini Slide – Model SLT-25-30-P-A
The Festo SLT-25-30-P-A Mini Slide is a robust and precise actuator designed for applications requiring compactness and high performance. Featuring a 30 mm stroke and a 25 mm piston diameter, it is suitable for a variety of industrial automation tasks.
Equipped with flexible cushioning rings/plates (P) at both ends and yoke kinematics, the mini slide provides excellent motion control and reduces impact energy (0.5 Nm). Its ball bearing cage guide ensures superior precision, making it ideal for assembly in any position.
This double-acting slide operates at pressures between 1 and 10 bar, using compressed air conforming to ISO8573-1:2010 [7:4:4] standards. It supports position detection via proximity sensors for enhanced functionality.
Constructed from high-quality materials such as wrought aluminum alloy housing and a non-corrosive high-alloy steel piston rod, the slide is free of copper and PTFE, ensuring durability and reliability. It is designed for ambient temperatures ranging from -20 to 60 °C and features a G1/8 pneumatic connection.
The slide delivers theoretical forces of 495 N (return stroke) and 590 N (advance stroke) at 6 bar, making it an efficient and dependable choice for precision industrial applications.
