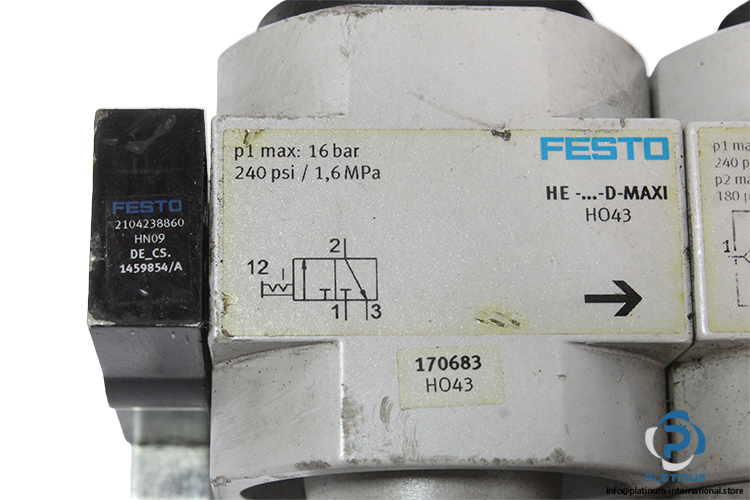

Festo 170683 On/Off Valve
Gebraucht
Auf Anfrage verfügbar

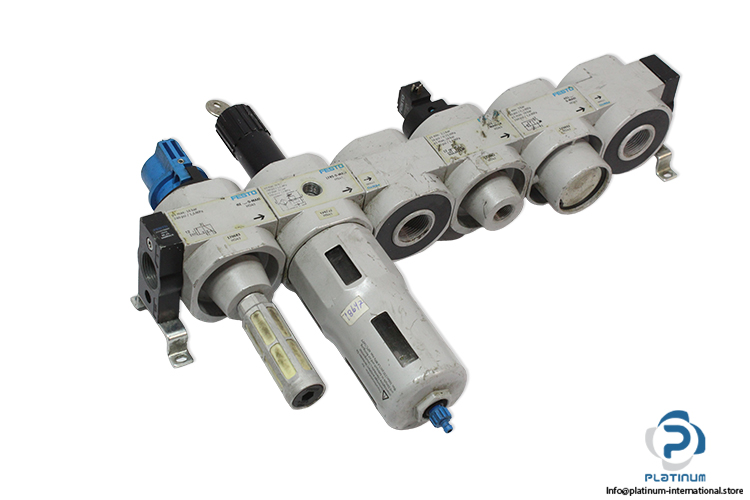

On/Off-Ventilbaugruppe Festo HE-D-MAXI pneumatische On/Off-Ventilbaugruppe mit integrierten HEL-D-MAXI- und HEE-D-MAXI-24-Einheiten, einschließlich Magnetspule, für eine zuverlässige Steuerung von Druckluft in Industriesystemen ausgelegt.
17068317069217296222424v3assemblyBistablecoilDdcFestoHEHEEHELIndustrialMaxiMsebOffOnPneumaticsolenoidValveWaWay
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacturer: Festo
Type On/off valve
Model: HE-D-MAXI
Part No.: 170683
| Operating Medium | Compressed air |
| Design | Piston gate valve |
| Type of Actuation | Manual |
| Sealing Principle | Soft |
| Valve Function | 3/2 Way Valve, bistable |
| Operating Pressure | 0 to 16 bar |
| Ambient Temperature | -10 to 60 °C |
| Pneumatic Connection | G3/8 |
| Material Housing | Die-cast aluminum |
| ATTACHED WITH | FESTO 170692 On/off valve |
| Exhaust air function | With flow control option |
| Actuation type | Pneumatic |
| Structural design | Piston gate valve |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Valve function,170692 | 2/2, closed, monostable |
| Operating pressure,170692 | 3 bar ... 16 bar |
| Ambient temperature,170692 | -10 °C ... 60 °C |
| Housing material,170692 | Die-cast aluminum |

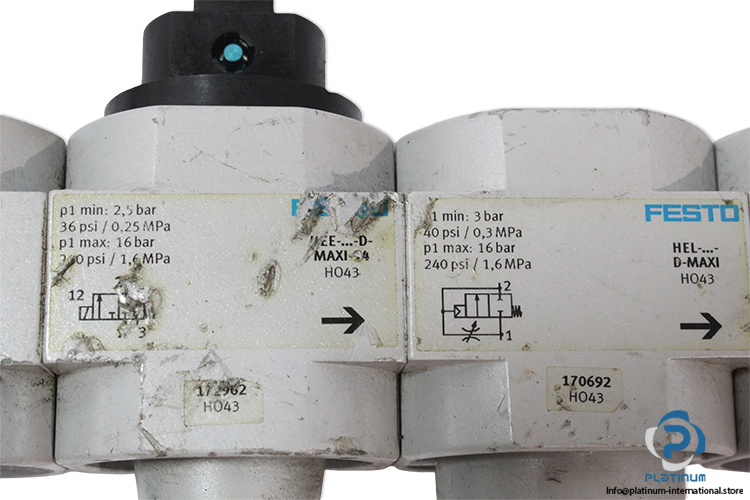

| ATTACHED | FESTO 172962 / HEE-D-MAXI-24 On/Off Valve |
| Fluid | Air |
| Size | MAXI |
| Design,172962 | Piston gate valve |
| Function | 3/2-way, closed, monostable |
| Type of Actuation,172962 | Electrically |
| Operating Pressure,172962 | 2.5 ... 16 bar |
| Pneumatic Connection,172962 | G3/8 |
| Material,172962 | Die-cast aluminium |
| Ambient Temperature,172962 | -10 to 60 °C |

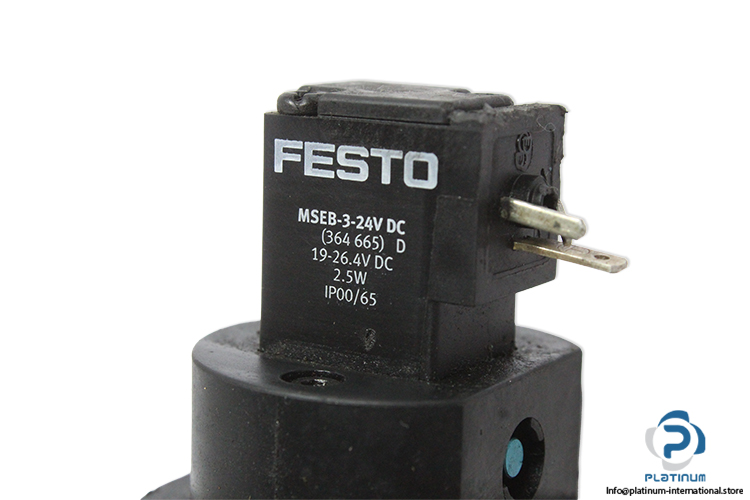

| Attachment | FESTO 364665 / MSEB-3-24V DC SOLENOID COIL |
| Supply Voltage | 19 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
| Condition | used |
