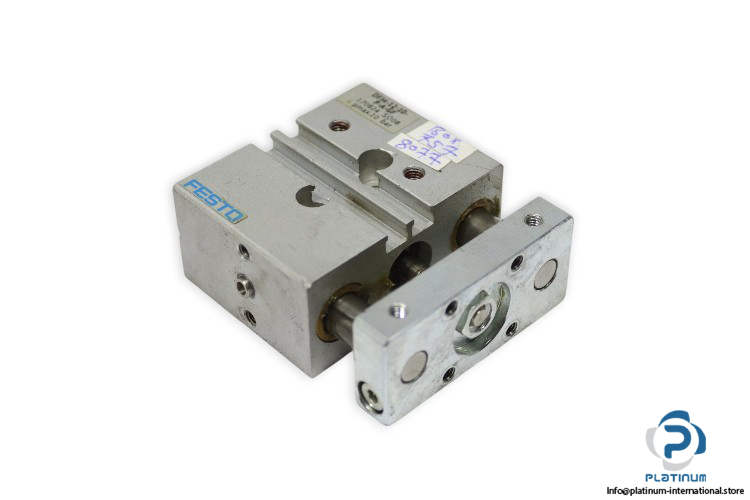

Festo 170824 Guided Drive

Manufacturer: FESTO
Type: Guided Drive

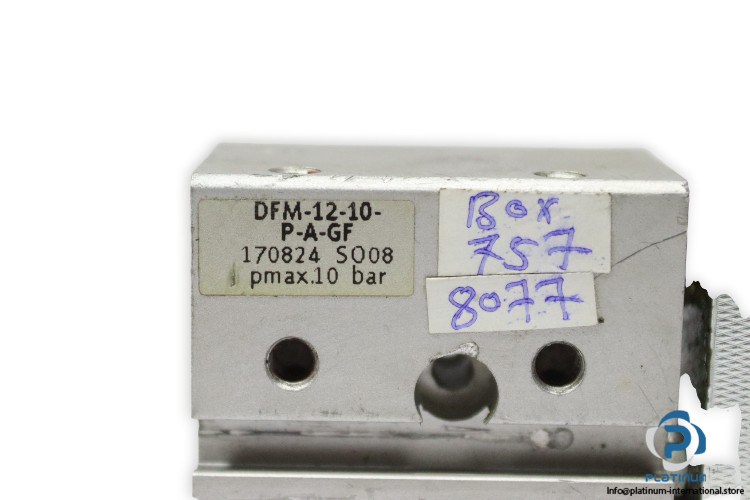

Model: DFM-12-10-P-A-GF
Part No.: 170824

Distance from centre of gravity of load to yoke plate xs: 25 mm
Stroke: 10 mm
Piston diameter: 12 mm
Cushioning: Elastic cushioning rings/plates at both ends
Guide: Plain-bearing guide
Design: Guidance
Position detection: Via proximity switch
Operating pressure: 2 bar … 10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air
Connection: 5 mm
