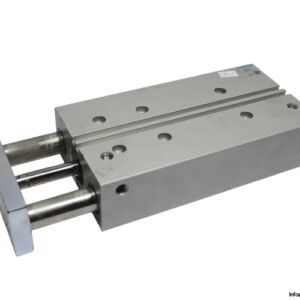

Festo 170862 Pneumatic Guided Drive
Gebraucht
Auf Lager4 EinheitenVersandbereit
Pneumatic Guided Drive
FESTO DFM-32-160-P-A-GF Pneumatic Guided Drive is designed for precision automation. Featuring a 32 mm piston diameter, 160 mm stroke, and plain-bearing guide, it provides excellent force transmission and stability. Equipped with a G 1/8 port and a pressure range of 1.5-10 bar, it ensures reliable and efficient performance.1/8160mm32mmActuatorAutomationDFM-32-160-P-A-GFdiameterDriveFestoGGuideGuidedhigh-precisionIndustrialLinearMotionPistonplain-bearingpneumPneumaticPortStrokeUnit
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

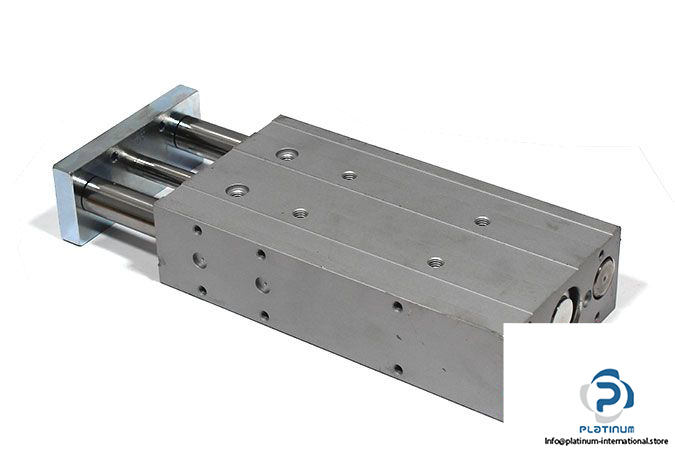

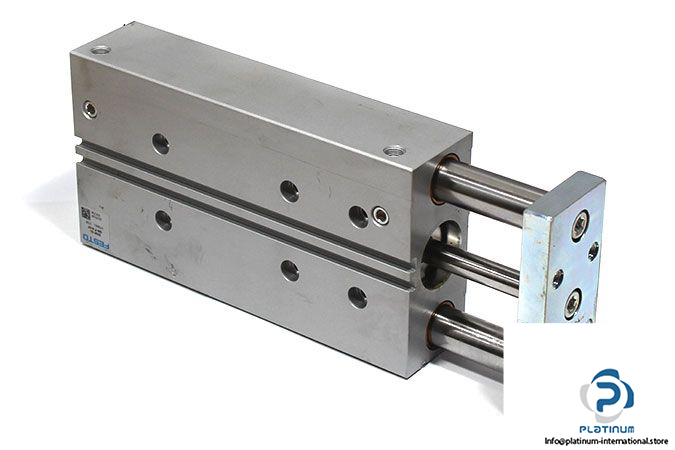

FESTO DFM-32-160-P-A-GF Pneumatic Guided Drive
The FESTO DFM-32-160-P-A-GF Pneumatic Guided Drive is a high-performance actuator designed for precise and controlled linear motion in automation applications. With its integrated guide unit and compact design, this guided drive ensures optimal force transmission, high load-bearing capacity, and excellent stability.
Manufacturer: FESTO
Type: Pneumatic Guided Drive

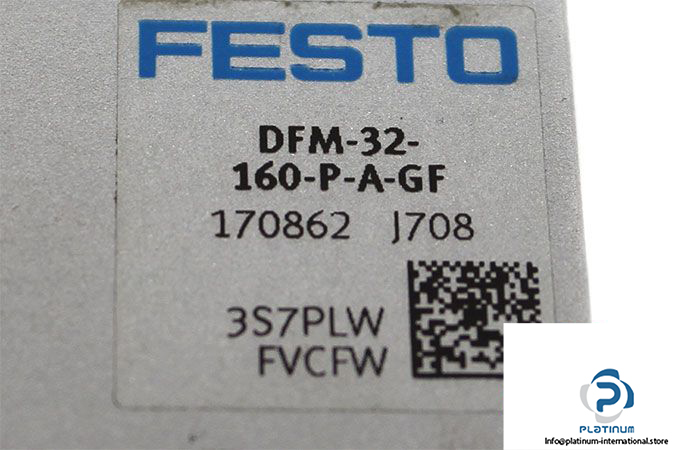

Model: DFM-32-160-P-A-GF
Part No.: 170862
| Fluid | Compressed Air |
| Distance from Centre of Gravity of Load to Yoke Plate (xs) | 50 mm |
| Piston Diameter | 32 mm |
| Stroke | 160 mm |
| Operating Pressure | 1.5 / 10 bar |
| Guide | Plain-Bearing Guide |
| Operation Mode, Drive Unit | Yoke |
| Port Size | G 1/8 |
| Temperature Range | -20 / 80 °C |
