Festo 170884 Guided Actuator
Gebraucht
Auf Lager1 EinheitVersandbereit
Guided Actuator
FESTO DFM-63-200-P-A-GF Guided Actuator is a high-precision pneumatic actuator designed for linear motion applications. Featuring a 200 mm stroke length, 63 mm piston diameter, and sliding guide, it ensures stability, durability, and smooth operation.200ActingActuatorAutomationDoubleFestoG1/4GuideGuidedHighIndustrialLinearmmPneumaticPrecisionSlidingStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

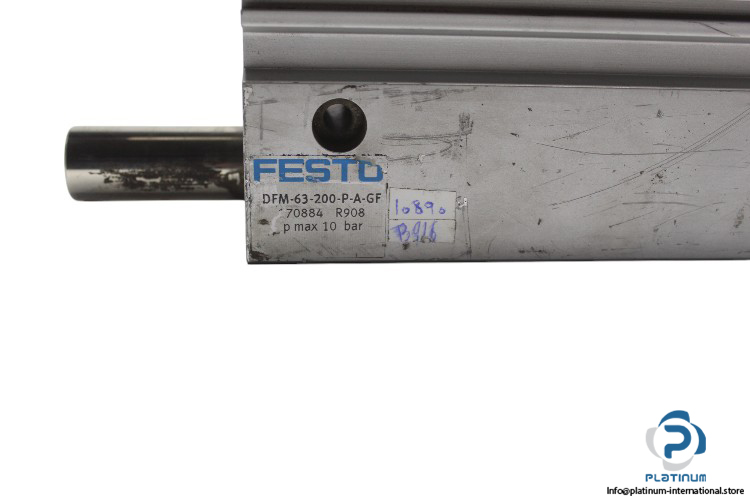

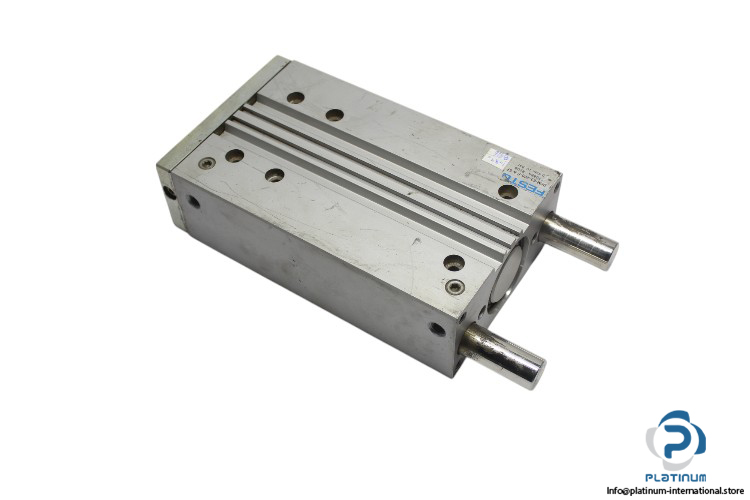

FESTO DFM-63-200-P-A-GF Guided Actuator
The FESTO DFM-63-200-P-A-GF Guided Actuator is a high-performance pneumatic actuator designed for precision-guided linear motion applications. Built with a sliding guide for superior stability, it ensures smooth movement and precise positioning. With a stroke length of 200 mm and a robust stainless-steel piston rod, this actuator delivers excellent durability and performance in demanding industrial environments.
- Manufacturer: FESTO
- Type: Guided Actuator
- Model: DFM-63-200-P-A-GF
- Part No.: 170884
Technical Specifications
- Stroke Length: 200 mm
- Piston Diameter: 63 mm
- Distance of Centre of Gravity of Payload to Yoke Plate (xs): 50 mm
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Guide: Sliding guide
- Pneumatic Connection: G1/4
- Temperature Range: -20 … 80 °C
- Piston Rod Material: High-alloy stainless steel
