Festo 172959 Shut OFF Valve
Neu
Auf Lager4 EinheitenVersandbereit
155,55$
ON/OFF VALVE WITH SOLENOID
FESTO HEE-…-D-MIDI-24 on/off valve with MSEB-3-24V DC solenoid coil, designed for 3/2-way air control with electrical actuation and high durability.3/2-wayActuatedAircoildcElectricallyFestoGateHEE-...-D-MIDI-24IndustrialMSEB-3-24VOffOnPistonPneumaticsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

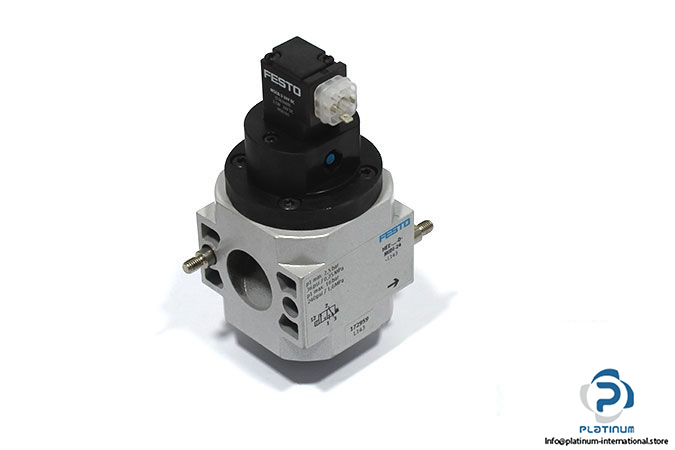

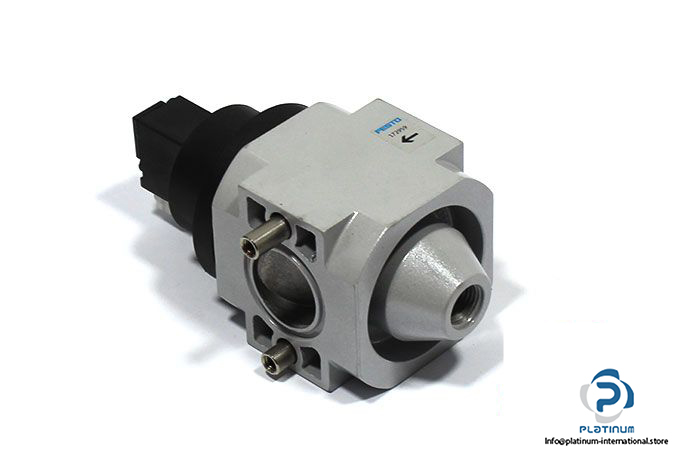

FESTO HEE-D-MIDI-24 ON/OFF VALVE WITH SOLENOID COIL
The FESTO HEEDMIDI24 is a high-performance on/off valve designed for precise pneumatic control. Featuring a piston gate valve design and 3/2-way function, this electrically actuated valve is ideal for applications requiring rapid and reliable air flow switching. It comes with the FESTO MSEB-3-24V DC solenoid coil for efficient operation.

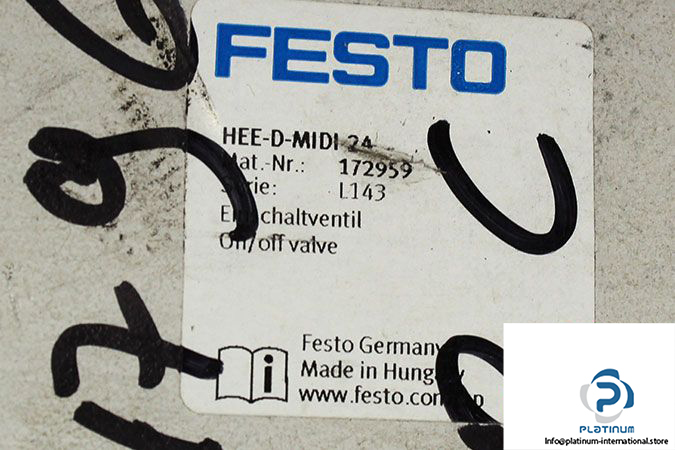

Manufacturer: FESTO
Type: On/Off Valve
Model: HEE-D-MIDI-24
Part No.: 172959

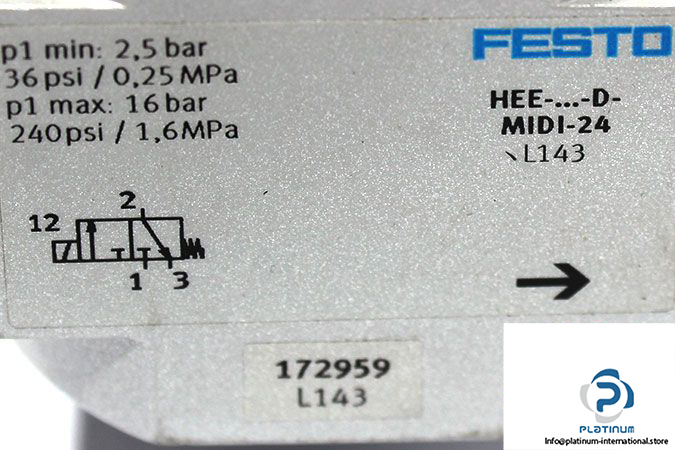

Valve Technical Information
- Fluid: Air
- Design: Piston gate valve
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: 2.5 … 16 bar
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Ambient Temperature: -10 / 60 °C

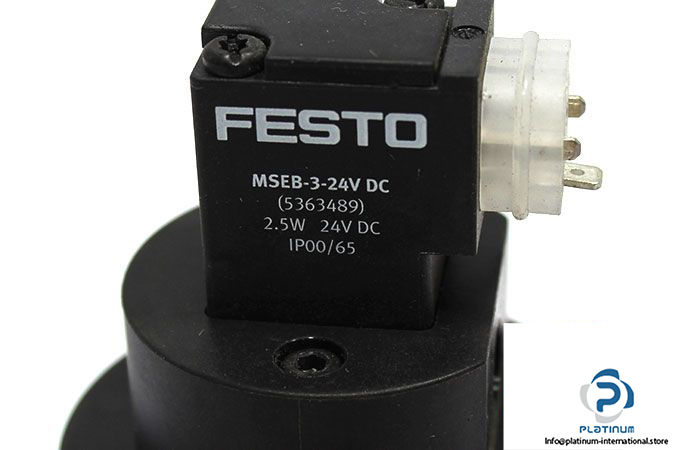

Attachment: FESTO MSEB-3-24V DC SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 5363489
Solenoid Coil Technical Information
- Supply Voltage: 24 V DC
- Power Consumption: 2.5 W
- Protection Class: IP00 / IP65
