Festo 173433 Double Solenoid Valve
Gebraucht
Auf Lager2 EinheitenVersandbereit
75,00$
DOUBLE SOLENOID VALVE
FESTO JMEH-5/2-1/8-P-B double solenoid valve with 24V DC coil delivers 650 l/min flow, 5/2 bistable function, and durable aluminum housing for pneumatic automation.24v5/2AirAluminumBistablecoilControldcdie-castDoubleFestoflowHighIndustrialIP65JMEH-5/2-1/8-P-BPneumaticsolenoidValve
Neu
Auf Lager 95,00$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

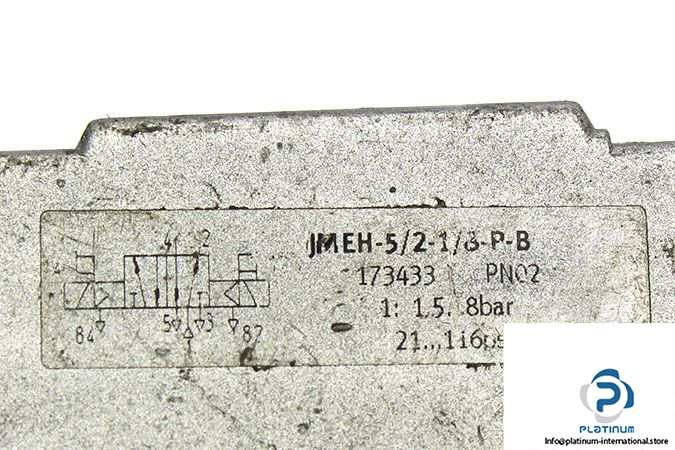

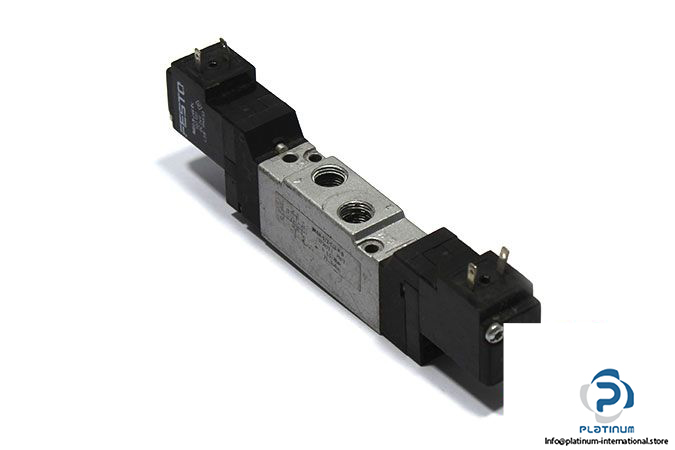

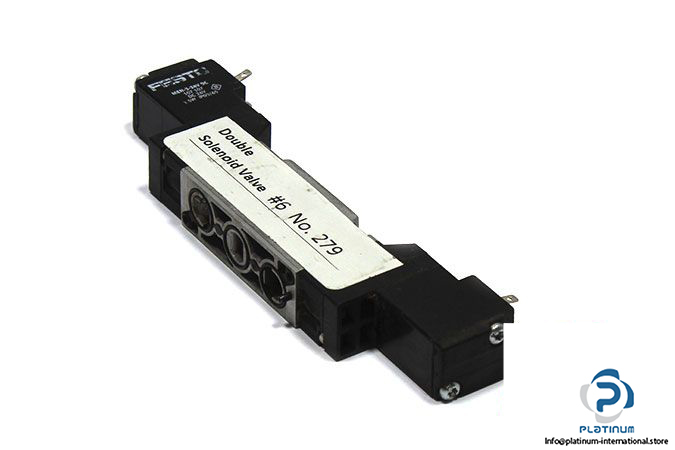

FESTO JMEH-5/2-1/8-P-B DOUBLE SOLENOID VALVE WITH MEH-3-24V DC COIL
The FESTO JMEH-5/2-1/8-P-B is a high-performance double solenoid valve designed for precise pneumatic control applications. Built with a durable piston slide design and made of die-cast aluminum, this valve is suitable for demanding environments. The attached MEH-3-24V DC solenoid coil ensures reliable electrical actuation and IP65-rated protection.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMEH-5/2-1/8-P-B
Part No.: 173433
Coil Technical Information
| Fluid | Air |
| Design | Piston Slide |
| Function | 5/2 Bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 1.5 / 8 bar |
| Nominal Flow Rate | 650 l/min |
| Pneumatic Connection | Sub-base size / G1/8 |
| Material | Die-cast Aluminum |
| Ambient Temperature | -5 / 50 °C |

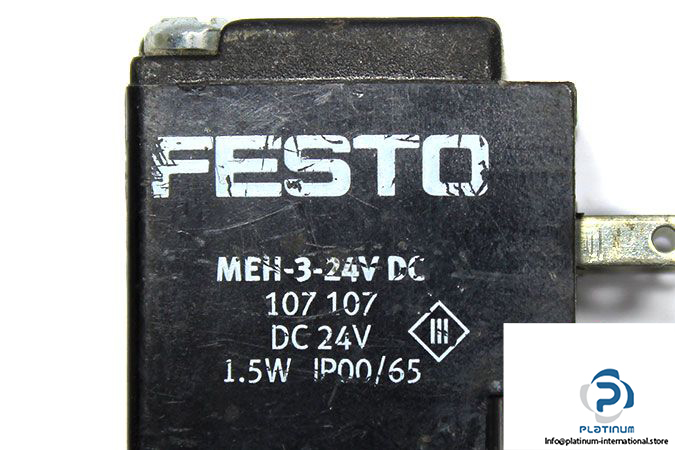

| Attachment | FESTO MEH-3-24V DC SOLENOID COIL |
| Part No. | 107107 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
