Festo 173945 Double Solenoid Valve
Gebraucht
Auf Lager4 EinheitenVersandbereit
44,44$
DOUBLE SOLENOID VALVE
FESTO CPA14-M1H-5/3-GS valve with MSZC-3-21 DC coil offers precise 5/3 control, high flow rate, and durable die-cast construction for pneumatic systems.5/3AirAluminiumCastcoilCPA14-M1H-5/3-GSdcDieDoubleFestoIndustrialMSZC-3-21PneumaticsolenoidSub-BaseValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

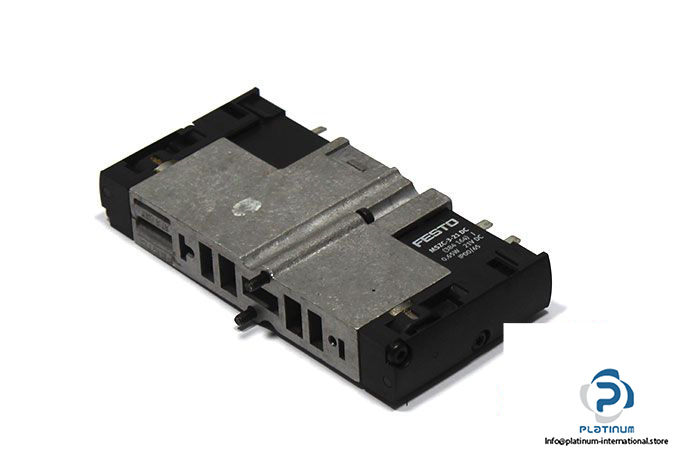

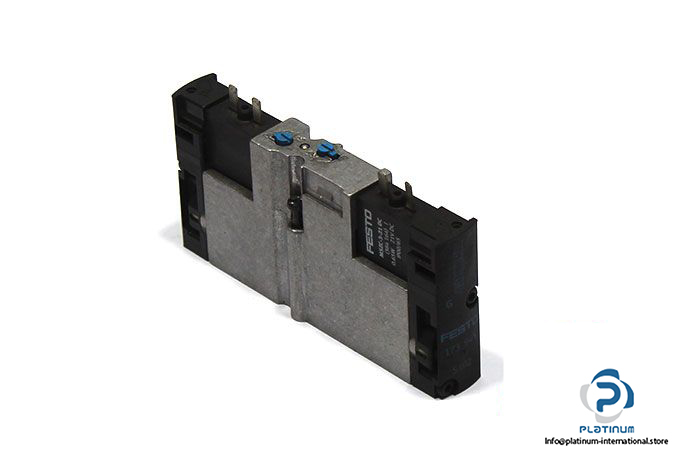

FESTO CPA14-M1H-5/3-GS DOUBLE SOLENOID VALVE WITH COIL
The FESTO CPA14-M1H-5/3-GS is a high-performance double solenoid valve designed for pneumatic applications requiring precision control and reliable actuation. Constructed with a die-cast aluminum body and equipped with the MSZC-3-21 DC solenoid coil, this valve ensures efficient operation in demanding environments.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPA14-M1H-5/3-GS
Part No.: 173945
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston Slide |
| Valve Function | 5/3 Closed |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 3 to 8 bar |
| Nominal Flow Rate | 550 l/min |
| Pneumatic Connection | Sub-base |
| Material | Die-cast Aluminium |
| Ambient Temperature | -5 to 50 °C |

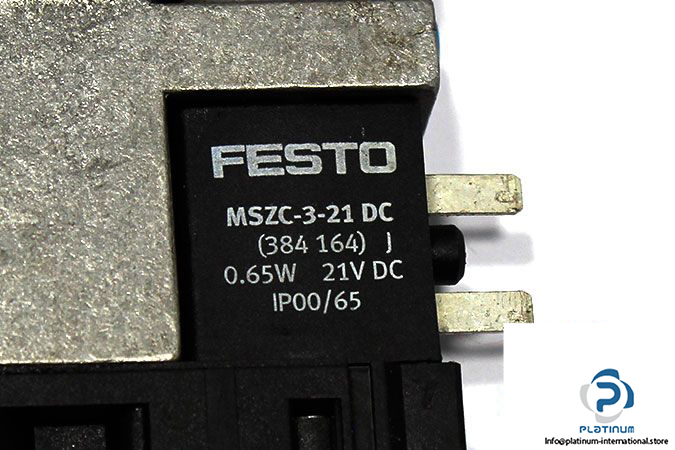

| Attachment | FESTO 384164 SOLENOID COIL |
| Part No. | 384164 |
| Supply Voltage | 21 V DC |
| Power Consumption | 0.65 W |
| Protection Class | IP65 |
