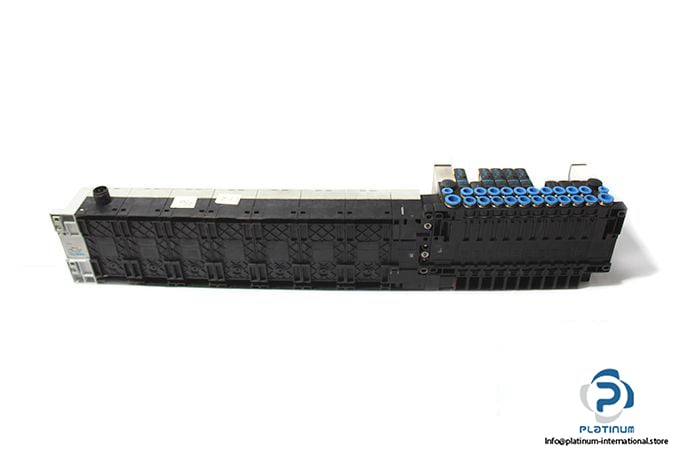

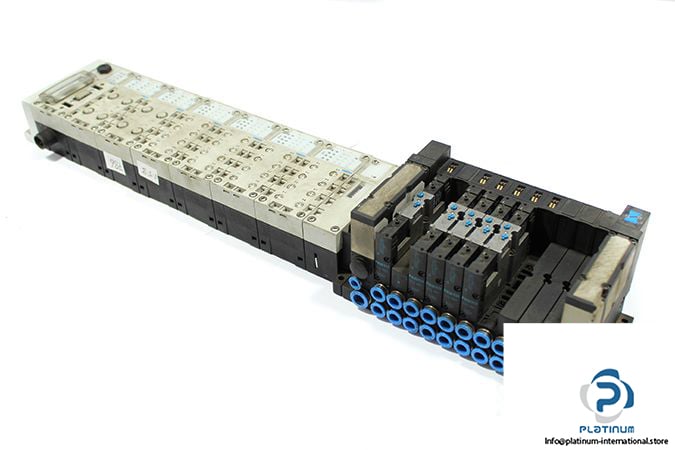

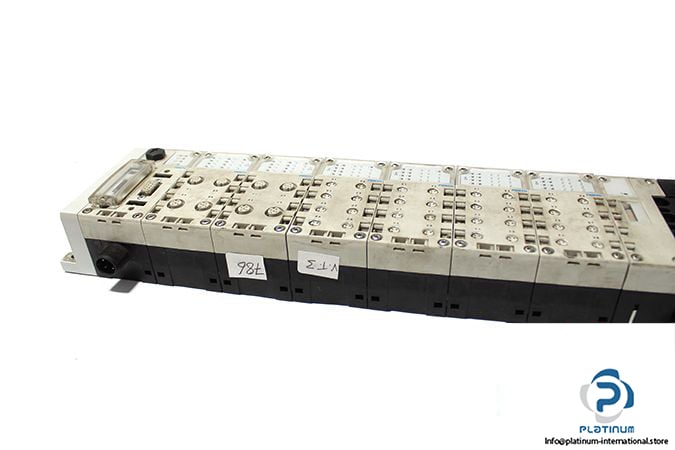

Festo 174001 Valve Terminals

Manufacturer: FESTO

Type: Valve Terminals

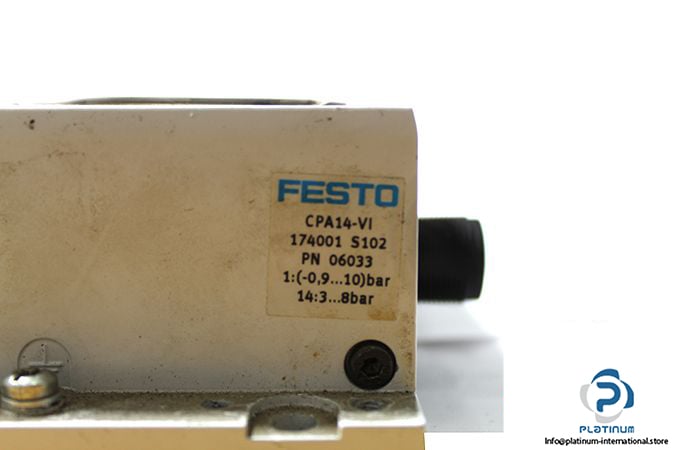

Model: CPA14-VI

Part No.: 174001

Design: Electromagnetically pilot actuated piston spool valve

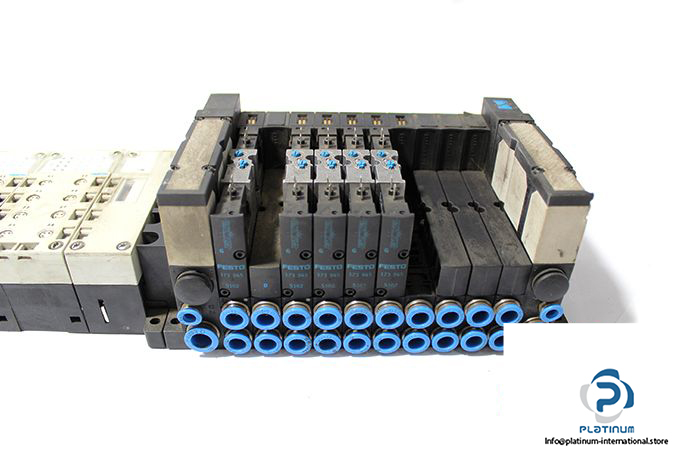

Valve functions:

5x 5/3 Solenoid valve (FESTO 173945)

9x Electrical manifold module (FESTO 173994)

1x Electrical manifold module (FESTO 173993)

1x Covering (FESTO 173507)

Width: 10 mm,14mm, 20 mm

Nominal Flow Rate:

360 l/min at 10 mm

550 l/min at 14 mm

700 l/min at 20 mm

550 l/min at 14 mm

Pneumatic Connections:

Supply port (1): G1/4

Working ports (2/4): 7 mm

Operating pressure:

Port (1): 0.9 …. 10 bar

Electrical Connection: 4 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 3.69 kg
