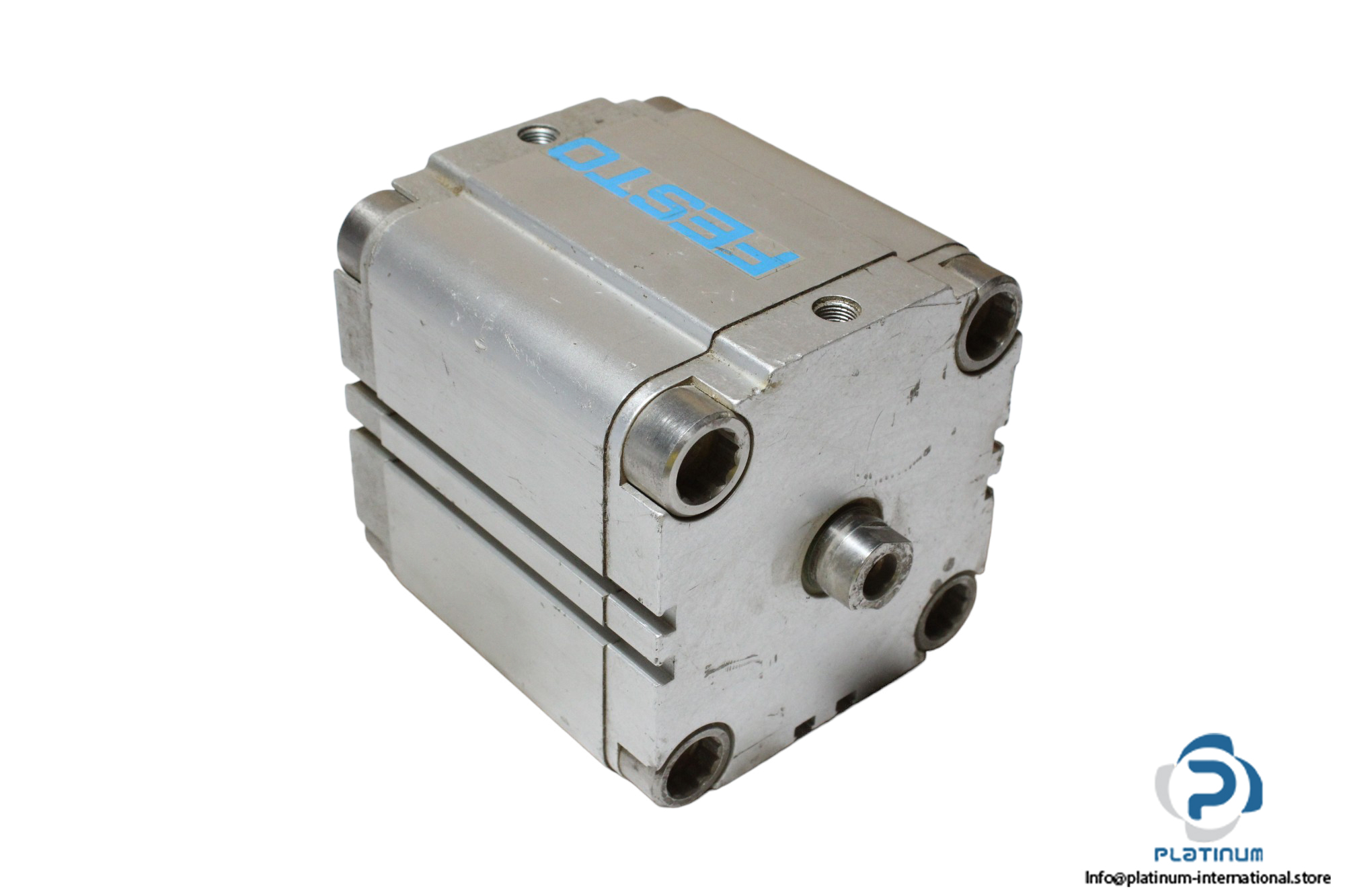

Festo 176848 Compact Cylinder

Manufacturer: FESTO
Type: Double-Acting Compact Cylinder

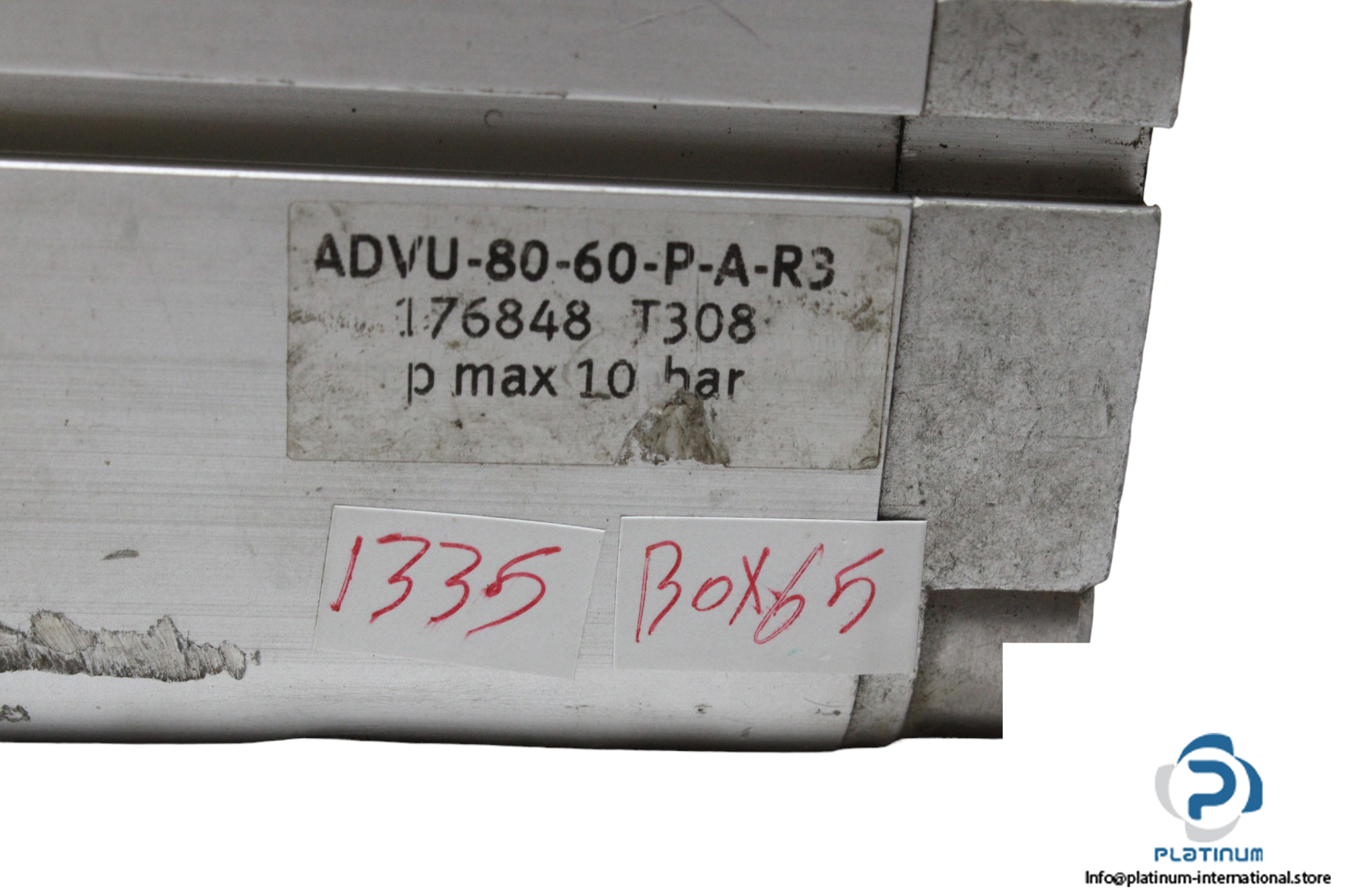

Model: ADVU-80-60-P-A-R3
Part No.: 176848

 Materials
Cylinder Tube: Aluminium wrought alloy Smooth anodised
Piston rod: High-alloy steel
Stroke Length: 60 mm
Piston Diameter: 80 mm
Piston rod thread: Female thread
Cushioning: Flexible cushioning rings/plates at both ends
Position sensing: For proximity sensing
Variant: Increased corrosion protection
Pneumatic Connection: G 1/8
Operating Pressure: 1 … 10 bar
Mode of operation: Double-acting
Temperature: -20 … 80 °C
