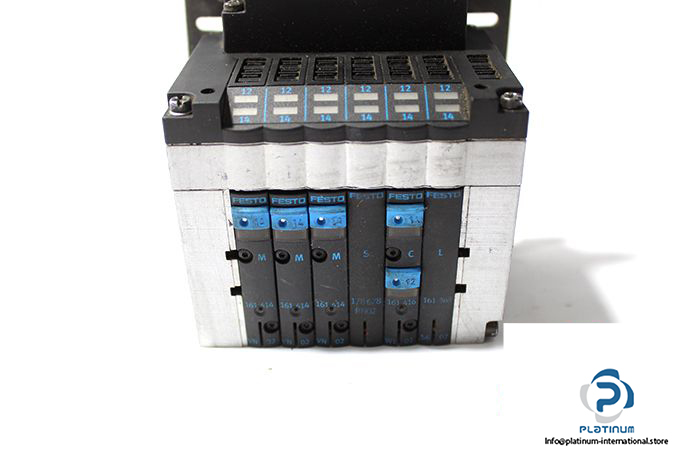

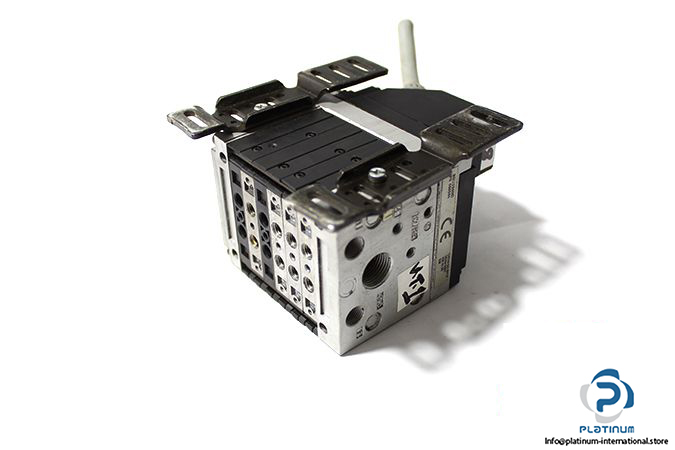

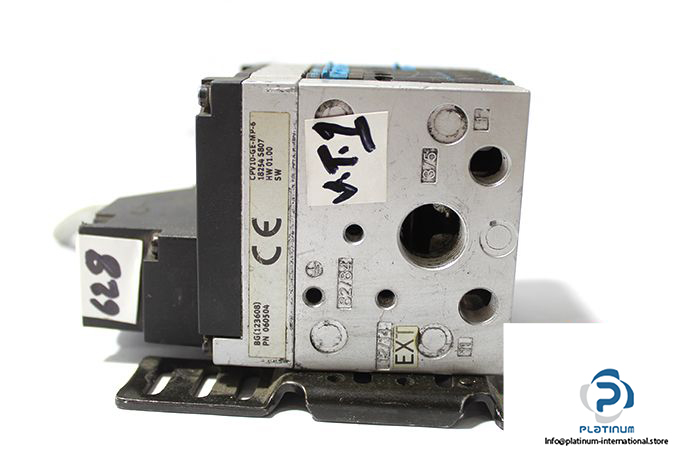

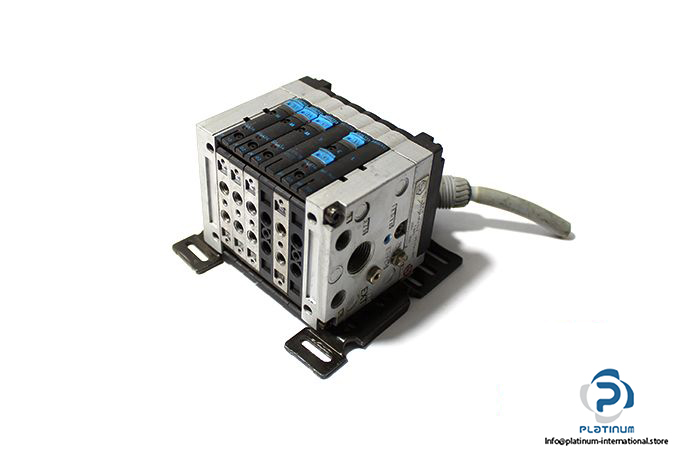

Festo 18200 Valve Terminals With 6 Valves

Manufacturer: FESTO

Type: Valve Terminals With 6 Valves

Model: CPV-10-VI

Part No.: 18200

Design: Electromagnetically Actuated Piston Spool Valve

Valve functions:

3x 5/2 Air solenoid valve (FESTO 161414)

1x Separator plate (FESTO 178678)

1x Blanking plate (FESTO 161416)

1x 2×3/2 Air solenoid valve (FESTO 161416)

Width: 10 mm

Nominal Flow Rate without Fitting: 400 l/m

Pneumatic Connections:

Supply ports (1/11): G1/8

Exhaust port (3/5): G3/8

Working ports (2/4): M7

Pilot air supply ports (12/14): M5

Pilot Exhaust Air Ports (82/84): M5

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (11): 3 …. 8 bar

Electrical connection: 25 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 0.81 kg
