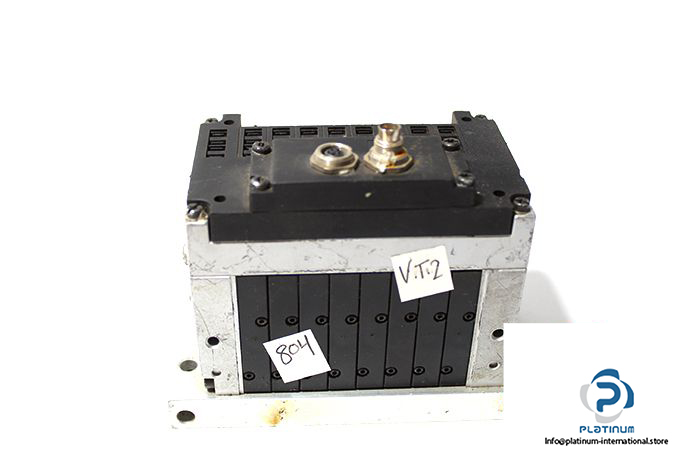

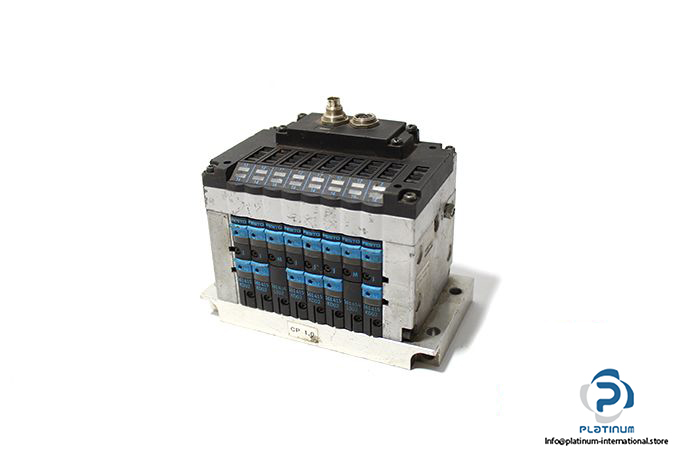

Festo 18200 Valve Terminals With 8 Valves

Name: FESTO 18200 VALVE TERMINALS WITH 8 VALVES
SKU: 973753
Availability: LimitedAvailability

festo-18200-valve-terminals-with-8-valves-4

festo-18200-valve-terminals-with-8-valves-3

festo-18200-valve-terminals-with-8-valves-2

festo-18200-valve-terminals-with-8-valves-1

Gebraucht

Auf Anfrage verfügbar

SKU

973753

Kategorie

Pneumatic Valves

Zustand

Gebraucht

8 CPV functions Pneumatic Terminals Valve valves

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: FESTO

Type: Valve Terminals With 6 Valves

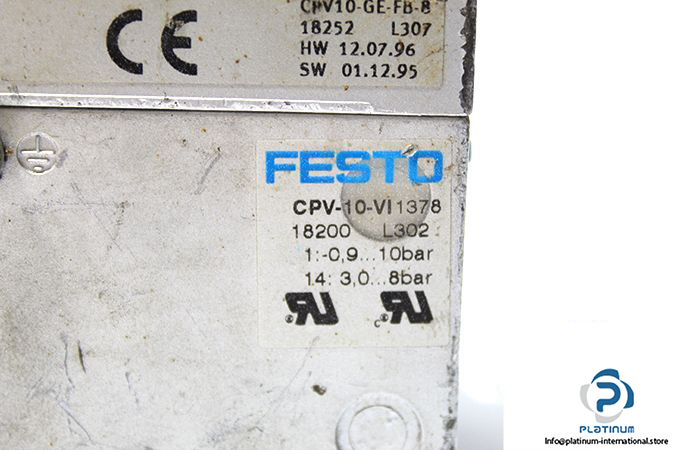

Model: CPV-10-VI

Part No.: 18200

Design: Electromagnetically Actuated Piston Spool Valve

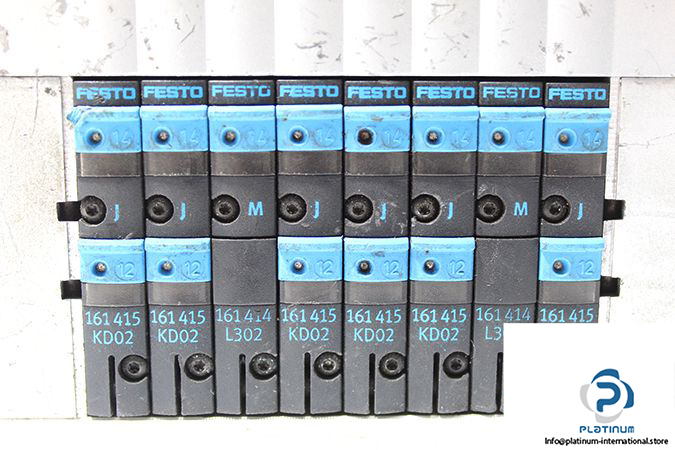

Valve functions:

6x 5/2 Air solenoid valve (FESTO 161415)

2x 5/2 Air solenoid valve (FESTO 161414)

1x Multi-pin (FESTO 152423)

Width: 10 mm

Nominal Flow Rate without Fitting: 400 l/m

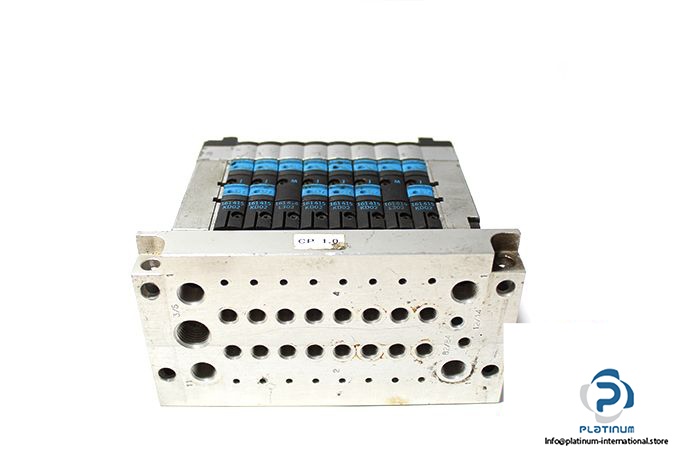

Pneumatic Connections:

Supply port (1/11): G1/8

Exhaust port (3/5): G1/4

Working ports (2/4): M7

Pilot air supply port (12/14): M5

Pilot Exhaust Air Port (82/84): M5

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (2): 3 …. 8 bar

Electrical connection: 5 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 1.28 kg
