Festo 185723 Service Unit Combination
SERVICE UNIT COMBINATION FESTO LFR-1/2-D-MIDI-KD Serviceeinheit mit Ein-/Aus-Ventilen, Magnetspule und Steckdose gewährleistet präzise Luftregelung und vollständige Systemintegration.

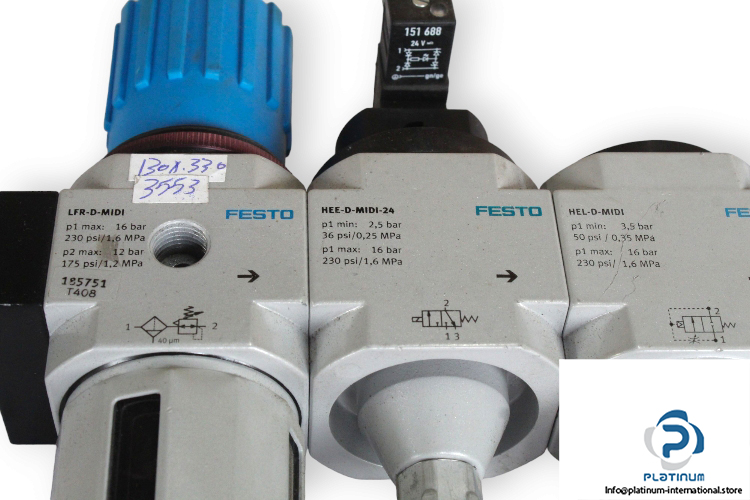

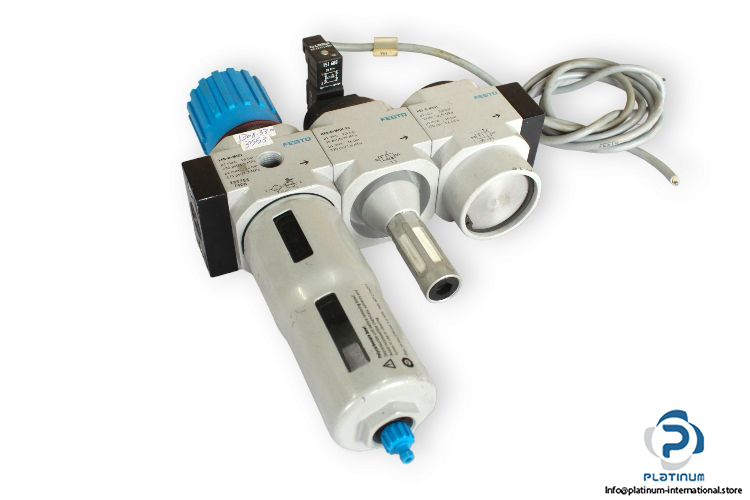

FESTO LFR-1/2-D-MIDI-KD SERVICE UNIT COMBINATION WITH VALVES AND ACCESSORIES
The FESTO LFR-1/2-D-MIDI-KD is a versatile service unit combination designed for air preparation in pneumatic systems. It features precise pressure regulation, efficient filtration, and robust construction for reliable operation in industrial applications. The unit comes equipped with multiple FESTO attachments, including on/off valves, solenoid coil, and plug socket with cable for full system integration.
Manufacturer: FESTO
Type: Service Unit Combination
Model: LFR-1/2-D-MIDI-KD
Part No.: 185751
| Size | MIDI |
| Medium | Compressed Air |
| Actuator Lock | Rotary Knob with Detent |
| Filtration Grade | 40 micron |
| Pressure Max. | 3 / 16 bar |
| Pressure Regulation Range | 2.5 / 12 bar |
| Pressure Hysteresis Max. | 0.25 bar |
| Bowl Material | Aluminum Alloy |
| Bowl Guard | Metal Bowl Guard |
| Temperature Range | -10 / 60°C |
| Connection | G1/2 |
| Attachment | FESTO HEE-D-MIDI-24 On/Off Valve |
| Part No. | 172959 |
| Design | Piston Gate Valve |
| Type of Actuation | Electrically |
| Valve Function | 3/2-Way, Closed, Monostable |
| Operating Pressure | 2.5 / 16 bar |
| Pneumatic Connection, Port 3 | G1/4 |

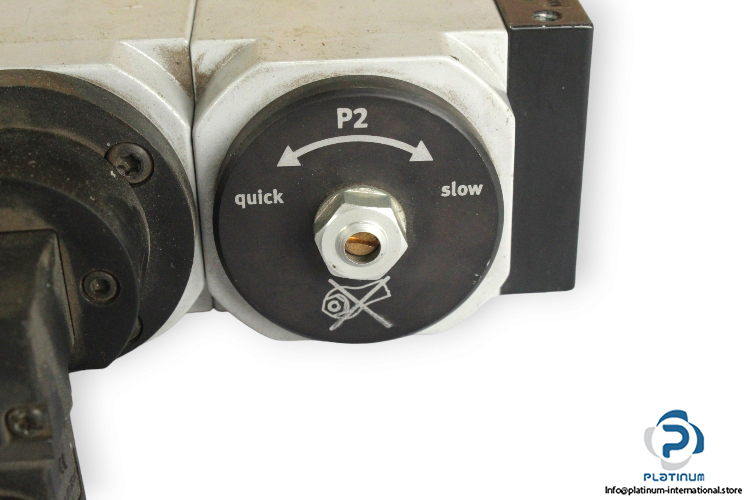

| Attachment | FESTO HEL-D-MIDI On/Off Valve |
| Part No. | 170691 |
| Fluid | Compressed Air |
| Design | Piston Gate Valve |
| Function | 2/2-Way, Closed, Monostable |
| Type of Actuation | Pneumatically |
| Operating Pressure | 3 / 16 bar |
| Material | Die-Cast Aluminium |
| Ambient Temperature | -10 / 60 °C |

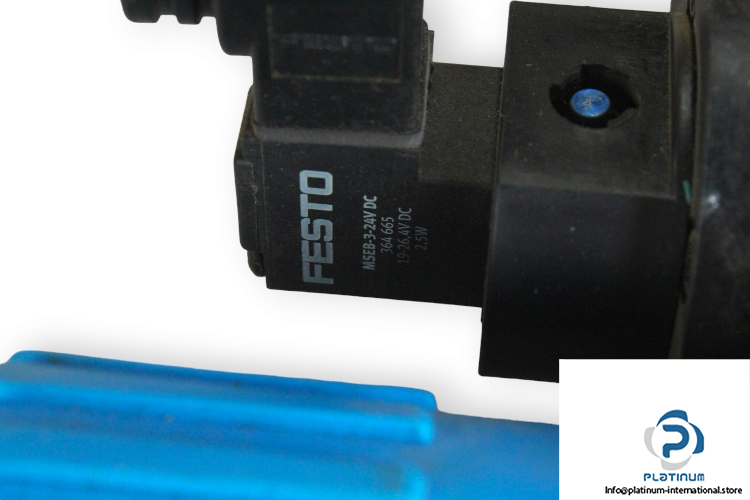

| Attachment | FESTO MSEB-3-24V DC Solenoid Coil |
| Part No. | 364665 |
| Supply Voltage | 19 / 26.4 V DC |
| Power Consumption | 2.5 W |

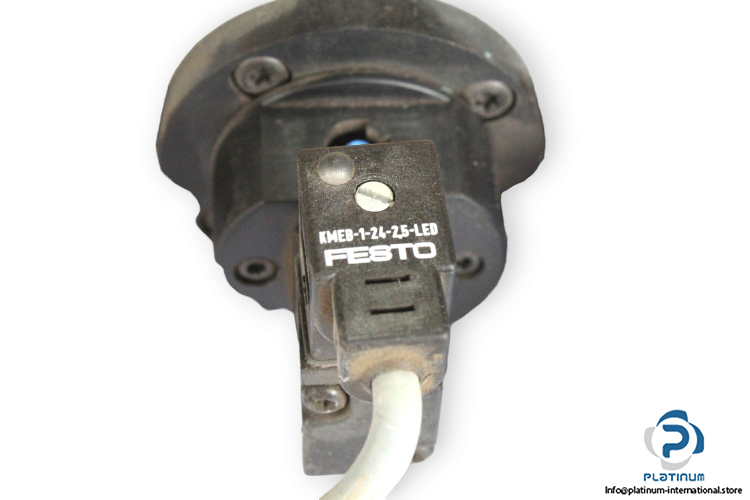

| Attachment | FESTO KMEB-1-24-2.5-LED Plug Socket with Cable |
| Part No. | 151688 |
| Length | 2.5 m |
| Head 1 | Type C, 3-Pole, Valve Plug, Female, 90° |
| Head 2 | Cable 3-Wire |
