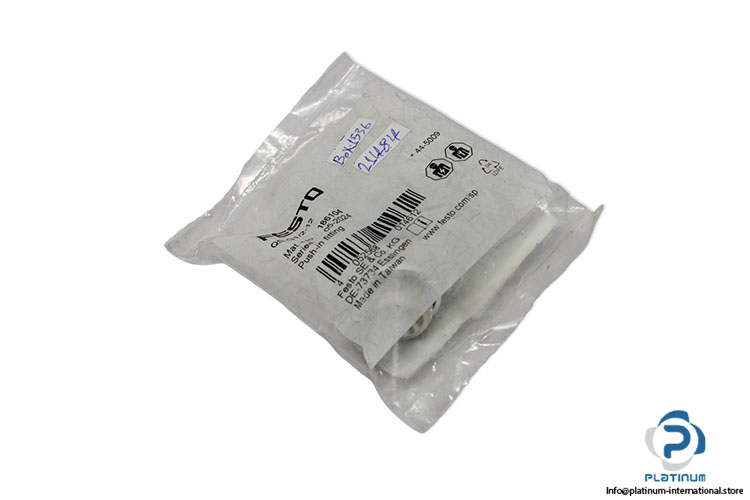

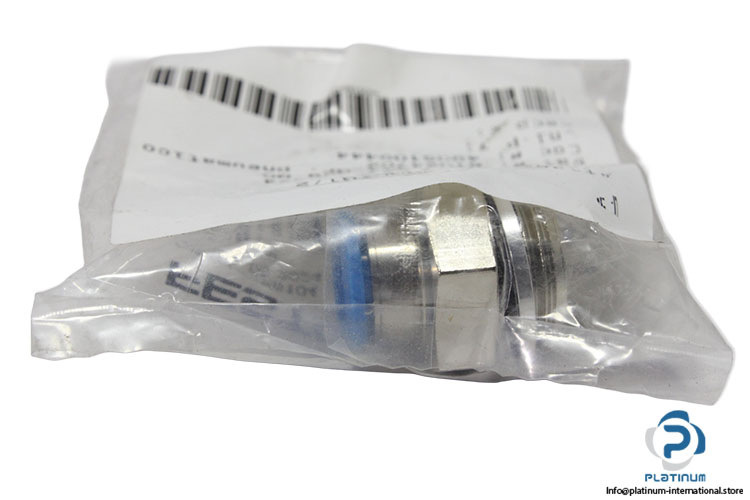

Festo 186104 Push-IN Fitting
Neu
Auf Lager1 EinheitVersandbereit
Push-In L-Fitting Industrial FESTO push-in L-fitting designed for pneumatic and fluid applications with secure tubing connection and nickel-plated brass construction.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 186104 |
| Series | QS |
| Fluid | Compressed Air / Water (Liquid, Ice-Free) |
| Design | Straight Push-Pull Principle |
| Nominal Size | 11 mm |
| Operating Pressure | -0.95 ... 6 bar / -0.095 ... 1.4 MPa |
| Water Pressure Max. | 0.6 MPa |
| Tubing Insertion Depth | 23.3 mm |
| Pneumatic Connection, Port 1 | Male Thread G1/2 |
| Pneumatic Connection, Port 2 | For Tubing Outer Diameter Of 12 mm |
| Material | Brass, Nickel-Plated |
| Ambient Temperature | -10 ... 80 °C |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102225 |
| Weight | 0,04 |
