Proportional Pressure Regulator
The FESTO MPPES-3-1/2-6-420 is an electric 3 way proportional pressure regulator with 0 to 6 bar control range, 18 to 30 V DC operation, and G1/2 ports, ensuring precise air pressure management in automation systems.18330AluminumAutomatControldcElectricFestog1/2IndustrialMppesMPPES-3-1/2-6-420PneumaticPressureProportionalregulatorSeriestoVValveWay
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

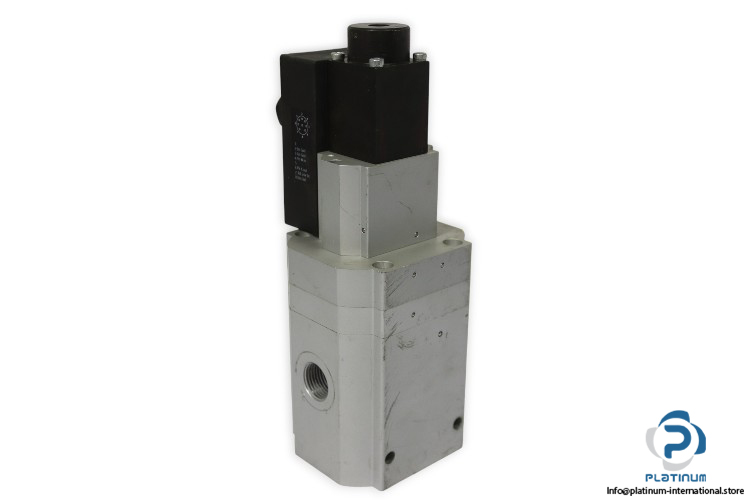

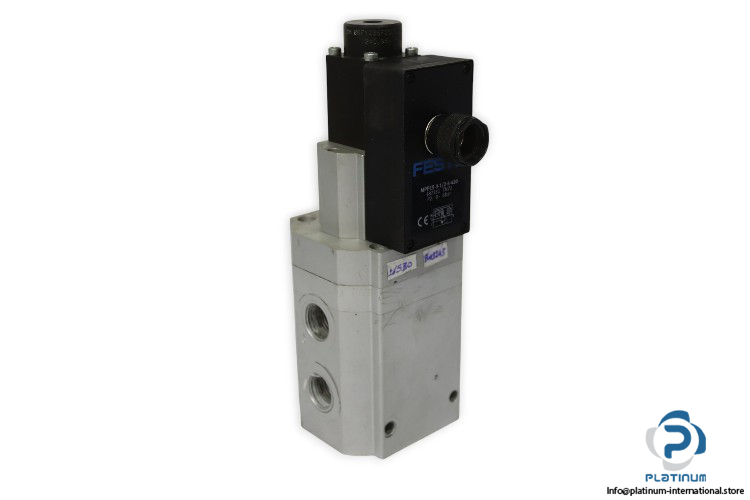

FESTO MPPES-3-1/2-6-420 Proportional Pressure Regulator
The FESTO MPPES-3-1/2-6-420 Proportional Pressure Regulator provides precise electronic control of air pressure for advanced pneumatic applications. With a fast switching response and accurate pressure regulation, this unit ensures stable system performance and efficient air management in automation processes.
Manufacturer: FESTO
Type: Proportional Pressure Regulator

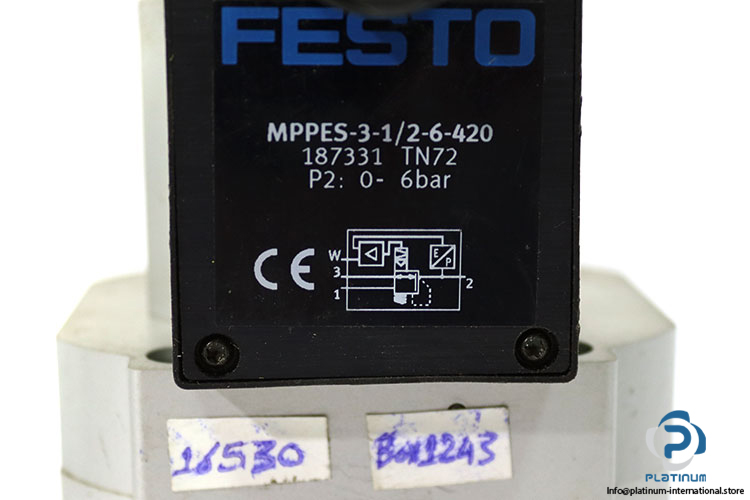

Model: MPPES-3-1/2-6-420
Part Number: 187331
| Nominal Size, Supply | 11 mm |
| Nominal Size, Exhaust | 12 mm |
| Type of Actuation | Electric |
| Valve Function | 3 way proportional pressure regulator, closed |
| Pneumatic Connection, Port 1 | G1/2 |
| Pressure Regulation Range | 0 bar to 6 bar |
| Inlet Pressure 1 | 7 bar to 8 bar |
| Maximum Pressure Hysteresis | 0.005 MPa |
| Maximum Pressure Hysteresis | 0.05 bar |
| Switching Time Off | 660 ms |
| Switching Time On | 230 ms |
| Operational Voltage Range DC | 18 V to 30 V |
| Ambient Temperature | 0 degree Celsius to 50 degree Celsius |
| Electrical Connection | 8 pin M16x0.75 plugs to DIN 45326 round design |
| Material Housing | Wrought aluminium alloy |
| Port Size | G1/2 |

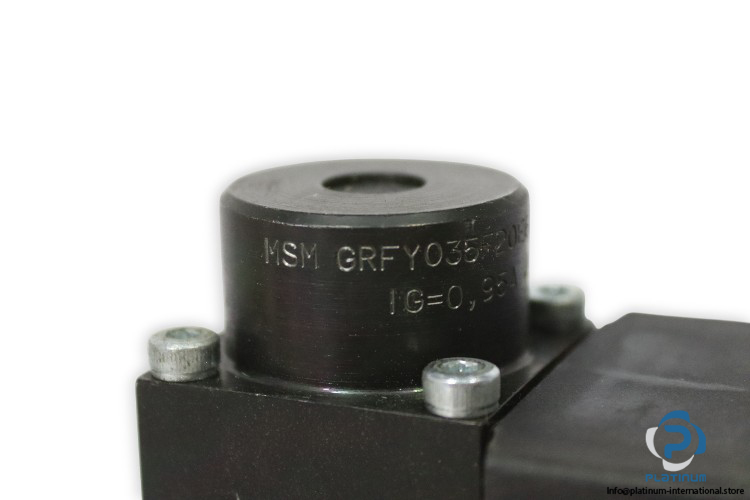

| Attached With | MSM GRFY035F20E60 solenoid coil |

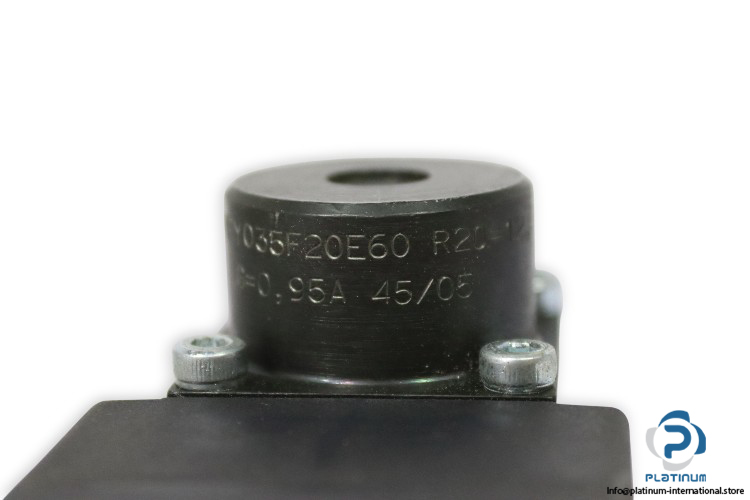

| Current | 0.95 A |

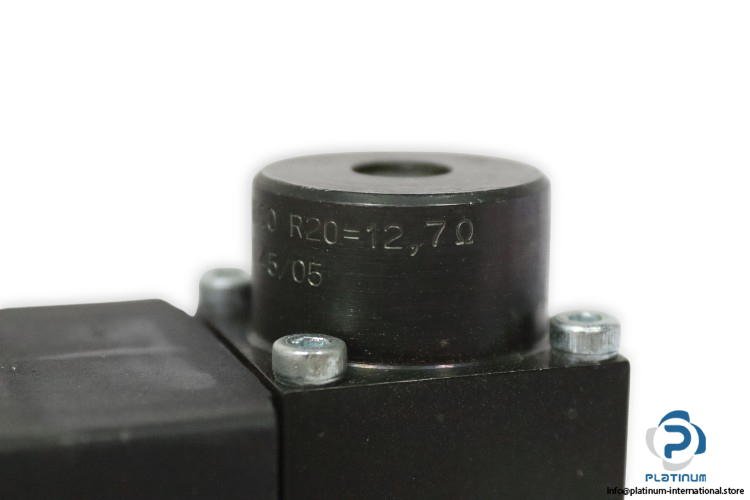

| Resistance (R20) | 12.7 ohm |
| Marking Code | 45/05 |
