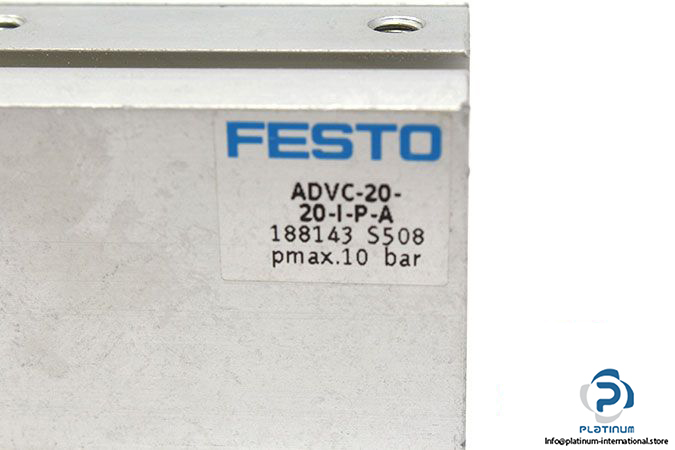

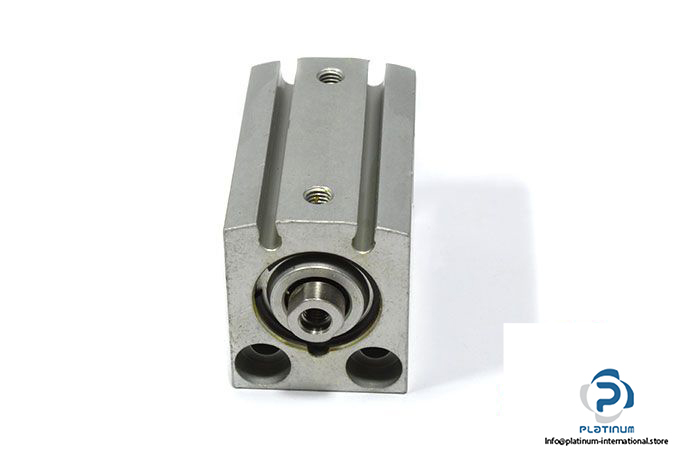

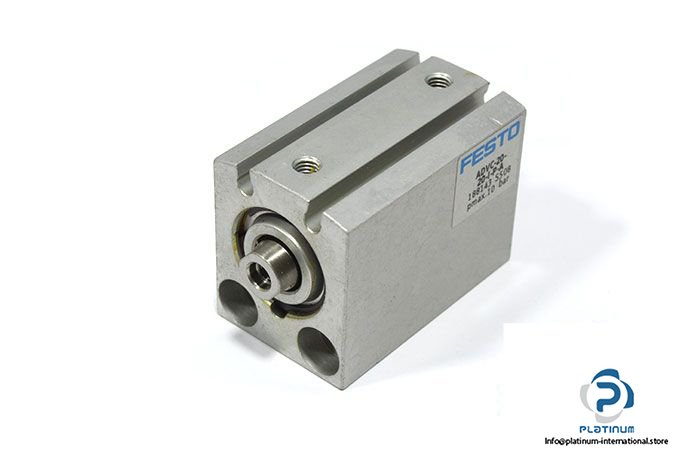

Festo 188143 Compact Cylinder

 Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

Model: ADVC-20-20-I-P-A

Part No.: 188143

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 20 mm

Piston Diameter: 20 mm

Piston rod thread: Female thread

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: 5 mm

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 0.15 kg
