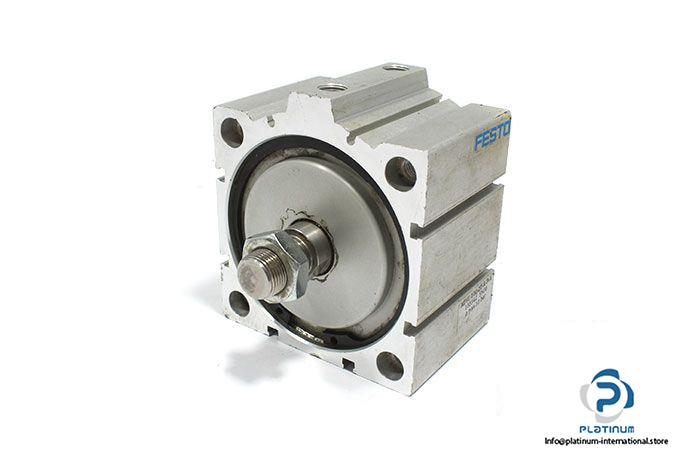

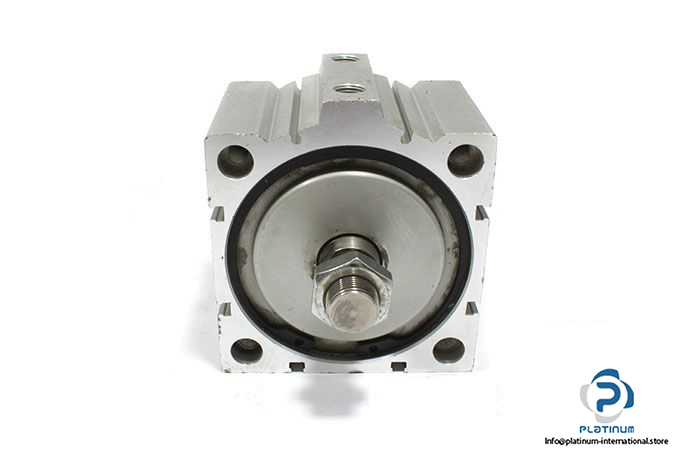

Festo 188342 Compact Cylinder

 Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

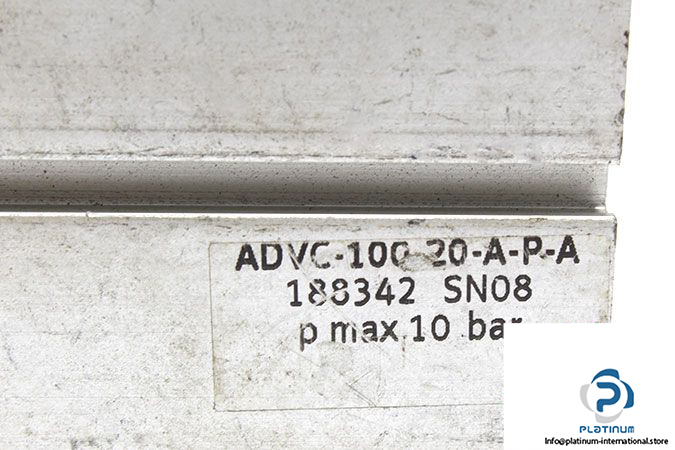

Model: ADVC-100-20-A-P-A

Part No.: 188342

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 20 mm

Piston Diameter: 100 mm

Piston rod thread: Male thread

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G 1/4

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 2.10 kg
