Festo 18850 Valve Terminal
Gebraucht
Auf Lager2 EinheitenVersandbereit
Valve Terminal
The Festo IIFB-02-1/8-4-BU Valve Terminal features electrical actuation, fieldbus connection, and high flow capacity, making it ideal for advanced pneumatic automation systems.AutomationComponentsElectricalFestoFieldbusIifbIIFB-02-1/8-4-BUIndustrialPistonPneumaticSeriesSlideterminalValvevalves
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

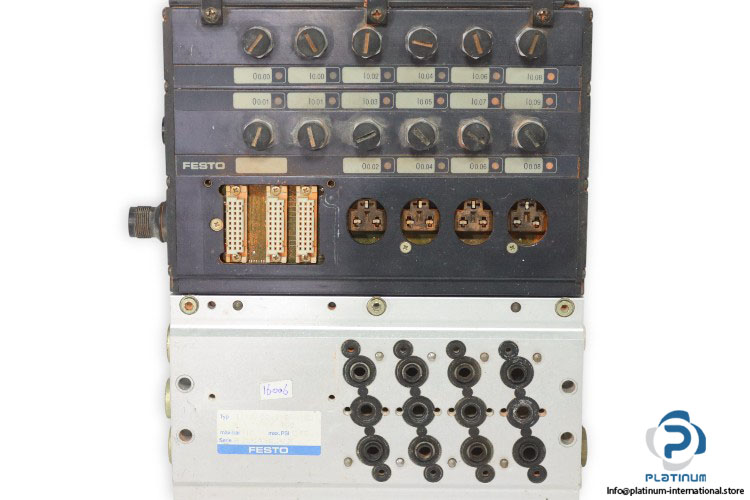

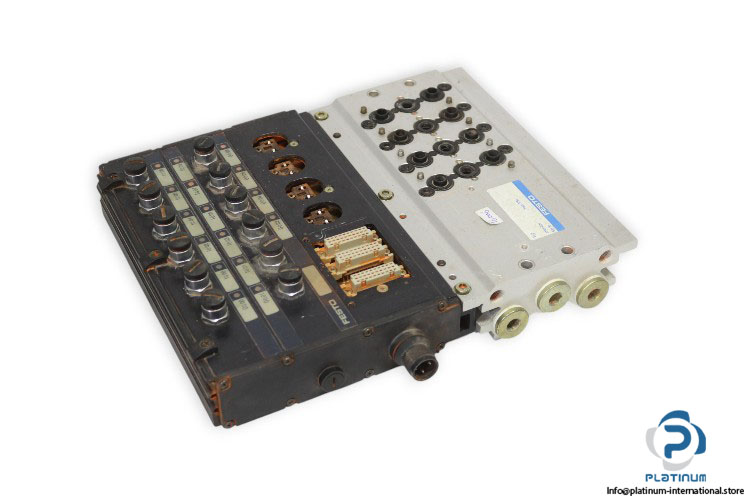

Festo IIFB-02-1/8-4-BU Valve Terminal
The Festo IIFB-02-1/8-4-BU is a high-performance valve terminal designed for reliable electrical actuation in industrial automation. With integrated fieldbus connection, compact construction, and robust flow capacity, it is suitable for demanding pneumatic applications.
Manufacturer: Festo
Type: Valve Terminal
Model: IIFB-02-1/8-4-BU
Part No.: 18 850
Series: IIFB
| Actuation Type | Electrical |
| Electrical Connection | Fieldbus, Integrated Controller |
| Valve Terminal Type | 02 |
| Standard Nominal Flow Rate | 750 to 1,000 l/min |
| Max. Number of Valve Positions | 4 |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 1.5 to 10 bar |
| Design Structure | Piston Slide |
| Nominal Operating Voltage | 24 V DC |
| Medium Temperature | -5 to 50 °C |
| Ambient Temperature | -5 to 50 °C |
| Port Size | G1/8, G3/8 |
