Festo 18852 Valve Terminal
Gebraucht
Auf Lager1 EinheitVersandbereit
Valve Terminal
The Festo IIFB-02-1/8-8-BU Valve Terminal delivers reliable pneumatic control with electrical actuation, fieldbus integration, and a flow rate capacity up to 1,000 l/min.ActuationAutomationComponentsControlControllerElectricalFestoFieldbusFluidIifbIIFB-02-1/8-8-BUIndustrialIntegratedPneumaticPneumaticsSeriesSystemterminalValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

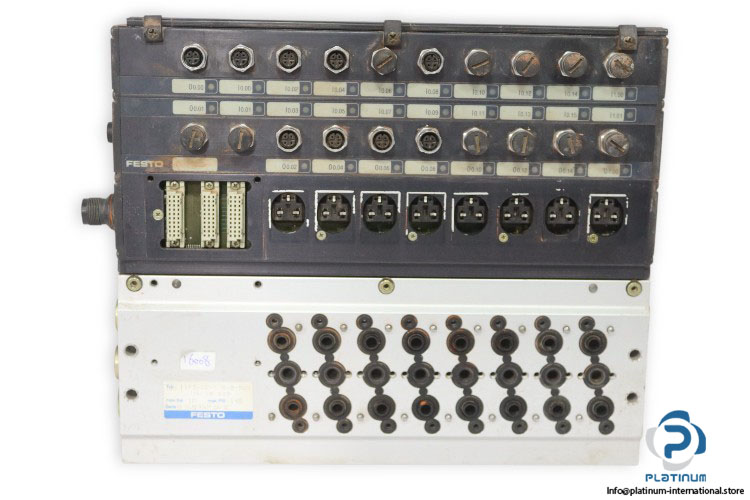

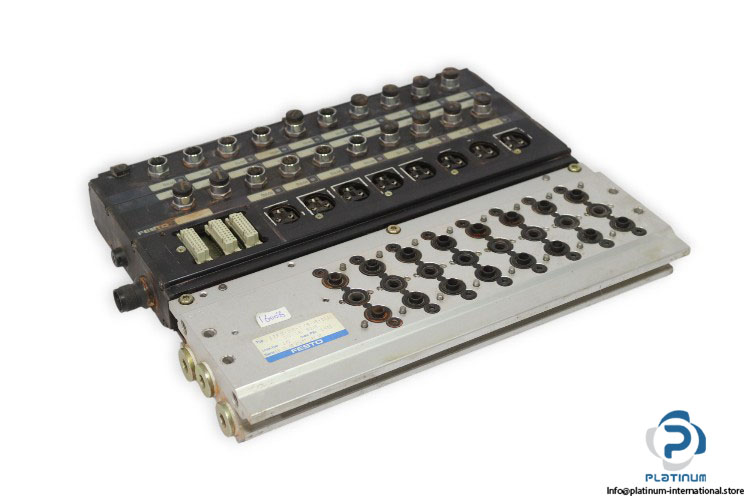

Festo IIFB-02-1/8-8-BU Valve Terminal
The Festo IIFB-02-1/8-8-BU is a high-performance valve terminal engineered for reliable and flexible control in pneumatic and automation applications. Designed with an integrated controller and fieldbus connection, it provides efficient operation, robust performance, and adaptability in demanding environments.
Manufacturer: Festo
Type: Valve Terminal
Model: IIFB-02-1/8-8-BU
Part No.: 18 852
Series: IIFB

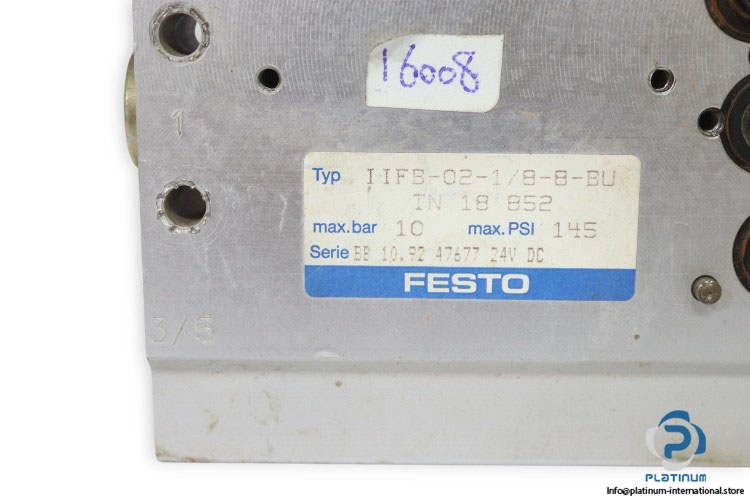

Serial No.: BB 10.92 47677 24V DC
| Actuation Type | Electrical |
| Electrical Connection | Fieldbus, Integrated Controller |
| Valve Terminal Type | 02 |
| Standard Nominal Flow Rate | 750 to 1,000 l/min |
| Max. Number of Valve Positions | 8 |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 1.5 to 10 bar |
| Design Structure | Piston Slide |
| Nominal Operating Voltage | 24 V DC |
| Medium Temperature | -5 to 50 °C |
| Ambient Temperature | -5 to 50 °C |
| Port Size | G1/8, G3/8 |
