Festo 188634 ISO Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
Festo DSEU-10-80-P-A ISO Cylinder “ Double-acting pneumatic cylinder with 80 mm stroke and 10 mm piston. Features flexible cushioning and stainless steel construction for high-performance automation.
1080ActingActuatorAirAutomationCompactCompressedCylinderDoubleDSEU-10-80-P-AFestoG5IndustrialISOmmNBRPistonPneumaticPortSealsstainlessSteelStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

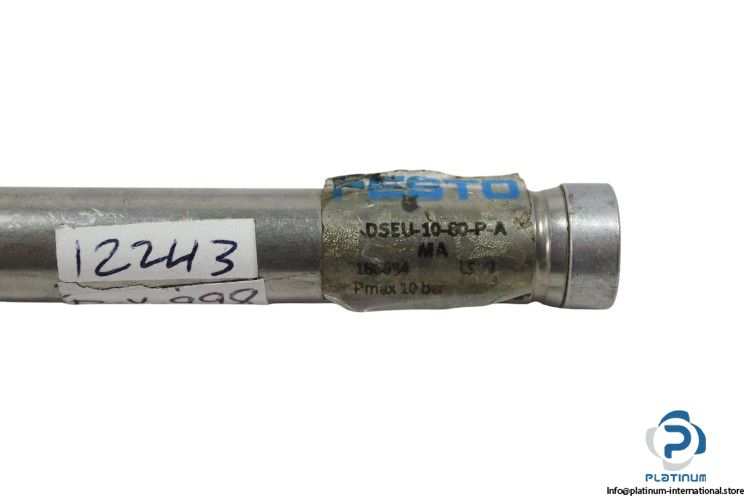

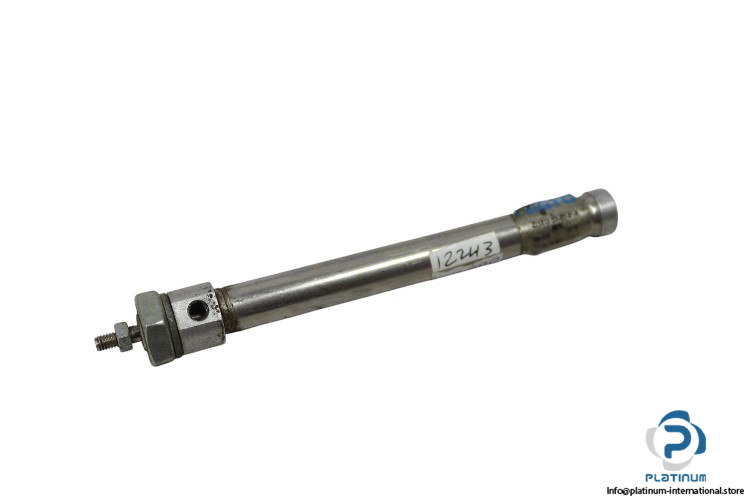

Festo DSEU-10-80-P-A ISO Cylinder “ Part No. 188634
The Festo DSEU-10-80-P-A is a compact ISO-standard pneumatic cylinder built for efficient double-acting motion in industrial environments. With an 80 mm stroke and 10 mm piston diameter, it features durable materials and flexible cushioning for smooth and reliable operation.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSEU-10-80-P-A
Part No.: 188634
| Stroke | 80 mm |
| Piston Diameter | 10 mm |
| Cushioning | Flexible Cushioning Rings/Plates at Both Ends |
| Port Size | 5 mm |
| Piston-Rod End | Male Thread |
| Mode of Operation | Double Acting |
| Operating Medium | Dried Compressed Air |
| Pressure | Max. 10 bar |
| Ambient Temperature | 0 to 80 °C |
| Cover Material | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
