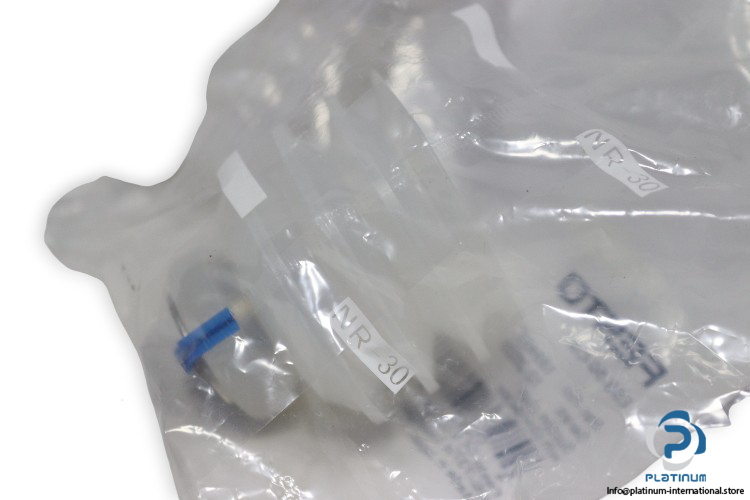

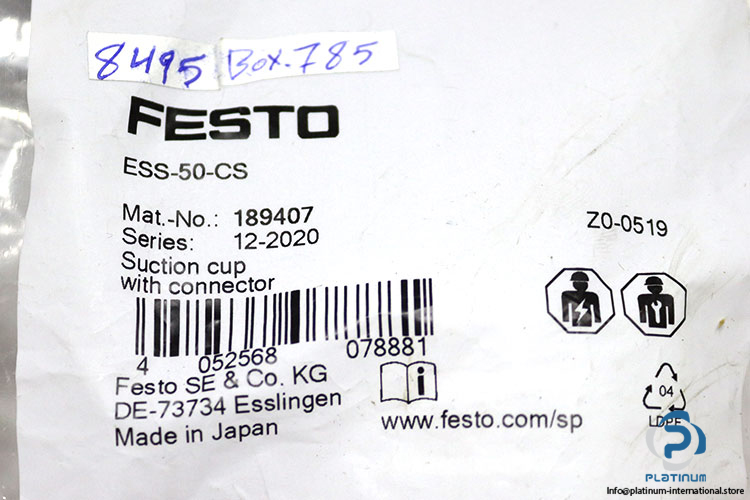

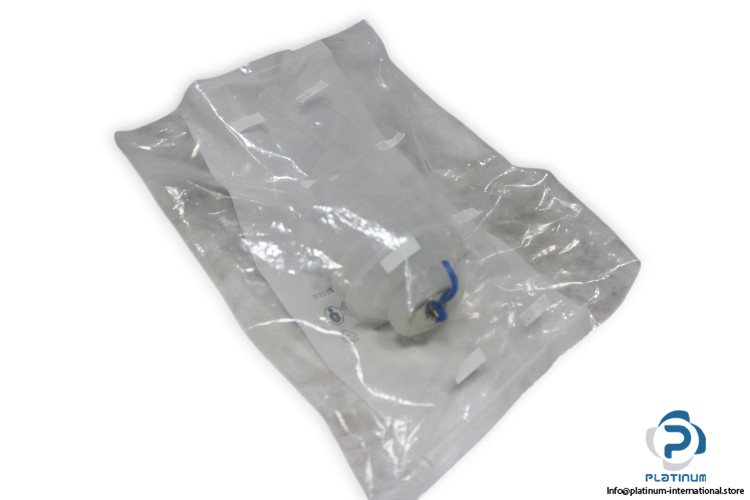

Festo 189407 Vacuum Suction CUP

Manufacturer: FESTO
Type: Vacuum suction cup
Model: ESS-50-CS
Part no.: 189407

Suction cup height compensation: 17.5 mm
Min. workpiece radius: 180 mm
Nominal width: 3 mm
Suction cup material: VMQ (silicone)
Suction cup diameter: 50 mm
Suction cup volume: 38.92 cm³
Connection position: Top
Classification of suction cup holder: Size 4
Suction cup shape: Round bellows, 3.5 convolutions
Operating pressure: -0.95 bar … 0 bar
Nominal operating pressure: -0.07 MPa
Operating medium: air
Type of mounting: Via vacuum connection
Vacuum connection: M6
