Festo 1908259 ISO Cylinder
Neu
Auf Lager2 EinheitenVersandbereit
33,33$
ISO Cylinder
FESTO DSNU-16-15-P-A ISO Cylinder is a high-performance pneumatic actuator with a 16 mm piston diameter, 15 mm stroke, and a robust stainless steel barrel. Designed for precision applications, it features elastic cushioning for smooth operation and supports position sensing.16ActingActuatorCompactControlCylinderDoubleFestoHighIndustrialISOmmMotionPneumaticPrecisionstainlessSteel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

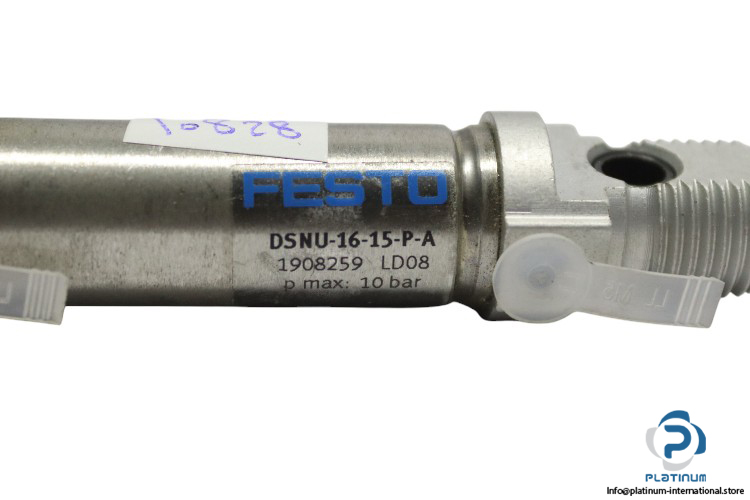

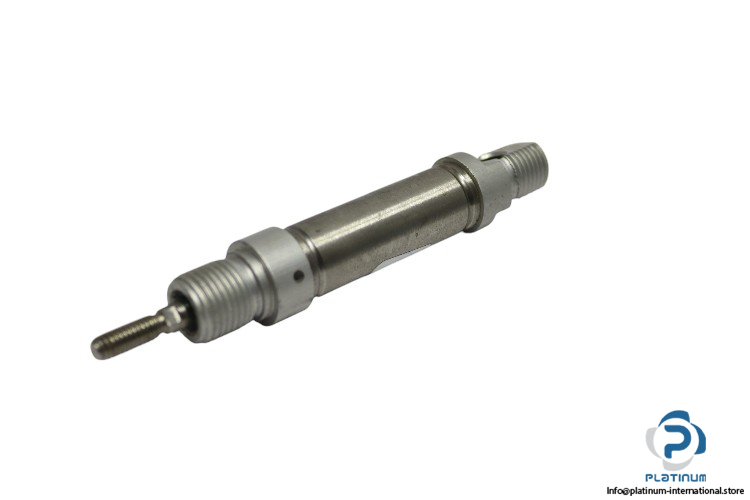

FESTO DSNU-16-15-P-A ISO Cylinder
The FESTO DSNU-16-15-P-A ISO Cylinder is a high-performance pneumatic actuator designed for precision and reliability in industrial automation. With a robust high-alloy stainless steel barrel and elastic cushioning at both ends, this double-acting cylinder ensures smooth and efficient motion control. Suitable for applications requiring position sensing and operating under a wide range of pressures and temperatures.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-16-15-P-A
- Part No.: 1908259
Technical Specifications
- Piston Diameter: 16 mm
- Stroke: 15 mm
- Rod Diameter: 6 mm
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensor
- Variants: Piston rod at one end
- Operating Pressure: 1 bar … 10 bar
- Ambient Temperature: -20 °C … 80 °C
- Mode of Operation: Double acting
- Material of Cylinder Barrel: High-alloy stainless steel
- Port Size: 5 mm
