ISO Cylinder
FESTO DSNU-20-10-PPS-A ISO Cylinder is a high-precision pneumatic actuator with a 20 mm piston diameter, 10 mm stroke, and self-adjusting pneumatic cushioning. Built with high-alloy stainless steel, it is designed for industrial automation and reliable performance.1020ActingAutomationCushioningCylinderDoubleG1/8High-AlloyIndustrialmmPistonPneumaticPortSelf-AdjustingstainlessSteelStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

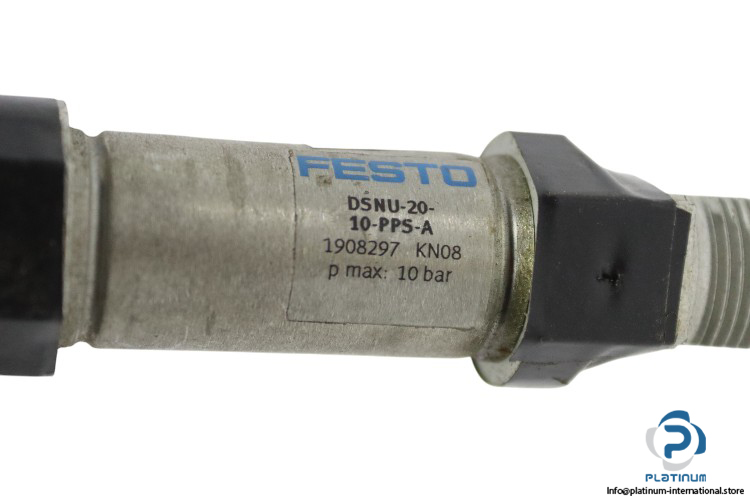

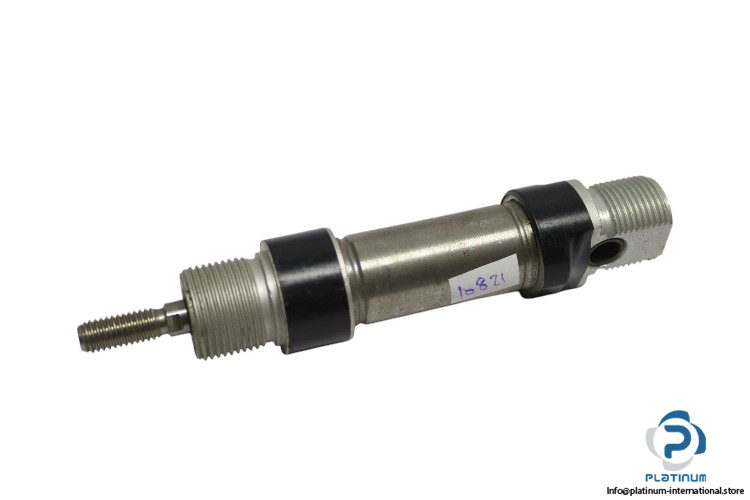

FESTO DSNU-20-10-PPS-A ISO Cylinder
The FESTO DSNU-20-10-PPS-A ISO Cylinder is a high-performance pneumatic actuator designed for industrial automation applications. With a 20 mm piston diameter and 10 mm stroke, this double-acting cylinder ensures precise and efficient motion control. Made of high-alloy stainless steel, it offers durability and resistance to demanding environmental conditions.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-20-10-PPS-A
- Part No.: 1908297
Technical Specifications
- Piston Diameter: 20 mm
- Stroke: 10 mm
- Rod Diameter: 8 mm
- Cushioning: Self-adjusting pneumatic end-position cushioning
- Position Sensing: For proximity sensor
- Variants: Piston rod at one end
- Operating Pressure: 1 bar … 10 bar
- Ambient Temperature: -20 °C … 80 °C
- Mode of Operation: Double acting
- Material of Cylinder Barrel: High-alloy stainless steel
- Port Size: G1/8
